System equipment carrier

- Adaptation to insulation thickness possible in 10 mm steps
- Including 2 screw dowels
- Insulation material: Neopor
- Processing temperature: -5 °C / + 60 °C

Adaptation to insulation thickness possible in 10 mm steps
Including 2 screw dowels
Insulation material: Neopor
Processing temperature: -5 °C / + 60 °C

System equipment carrier for mechanically secure and thermal bridge-free installation in insulated exterior walls, system equipment carrier made of plastic, with insulation, thermal bridge-free design in accordance with DIN 18015-5, for installation in insulated exterior walls, with multi-device insert, variable installation of device combinations from 1 to 3, insulation thickness adjustable from 240 to 310 mm in 10 mm increments, protection class IP 20 according to DIN EN 60529, flame-retardant according to DIN EN 60695 up to 850°C, halogen-free according to DIN VDE 0604-2-100, for installation in insulated facades, including 2 impact anchors for fixing, for 2 conduits 20 mm/25 mm

System equipment carrier 240 - 310 mm with multiple accessory insert for boxes

AGRO AG

Artikel-No.: 9966.32

EAN: 7611614269627

Product length: 220 mm

Product width: 110 mm

For conduit Ø: 20 mm, 25 mm

Halogen-free: Yes

Shipping: 5

More product details

Datasheet (PDF)

accessories

- for sealing electrical installation conduits
- ECON® technology for easy cable entry
- permanently flexible plastic

Sealing plug ECON® M20

Artikel-No. 1040-20

E-No 126573020

for sealing electrical installation conduits
ECON® technology for easy cable entry
permanently flexible plastic

Sealing plug ECON® M25

Artikel-No. 1040-25

E-No 126573030

for sealing electrical installation conduits
ECON® technology for easy cable entry
permanently flexible plastic

Fleece-butyl sealing sleeve

Artikel-No. 9089-48

E-No 171535428

For cables Ø 4 - 15 mm and conduits Ø 15 - 110 mm
Fleece-butyl sealing sleeve can be plastered over
Self-adhesive.
1-piece

Fleece-butyl sealing sleeve

Artikel-No. 9089-55

E-No 171535618

For cables Ø 4 - 15 mm and conduits Ø 15 - 110 mm
Fleece-butyl sealing sleeve can be plastered over
Self-adhesive.
1-piece

Fleece-butyl sealing sleeve

Artikel-No. 9089-49

E-No 171535438

For cables Ø 4 - 15 mm and conduits Ø 15 - 110 mm
Fleece-butyl sealing sleeve can be plastered over
Self-adhesive.
1-piece

tools

- for longer cables: integrated knife for longitudinal cutting
- ergonomic design - easy-to-use
- hardened and polished cutting knife

AMZ 2 stripping pliers

Artikel-No. 1190-02

E-No 983221059

for longer cables: integrated knife for longitudinal cutting
ergonomic design - easy-to-use
hardened and polished cutting knife

similar

System equipment carrier 240 - 310 mm with universal mounting plate

Artikel-No. 9966.22

E-No 372804419

Adaptation to insulation thickness possible in 10 mm steps
Including 2 screw dowels
Insulation material: Neopor
Processing temperature: -5 °C / + 60 °C

Product Information

System equipment carrier

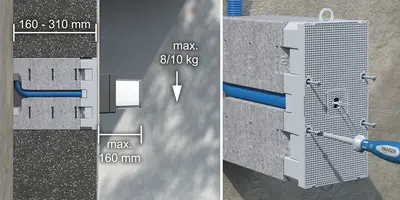

The system equipment carrier is designed to fit perfectly into the external insulation and, in this way, reliably prevents heat bridges. Fast, easy fixing using the screw dowels included in the scope of delivery permanently anchors the equipment carrier securely to many surfaces. Ideal for stable fixing of external lamps, sockets, door intercom devices, and many more. In doing so, high weight-bearing loads are not a problem.

Extra-fast, easy installation
Two product types allow a wide range of applications
Heat bridges are efficiently prevented
Adaptable to insulation thickness in 10 mm steps – no cutting necessary
Modular design for insulation thicknesses from 160 to 310 mm

Application examples

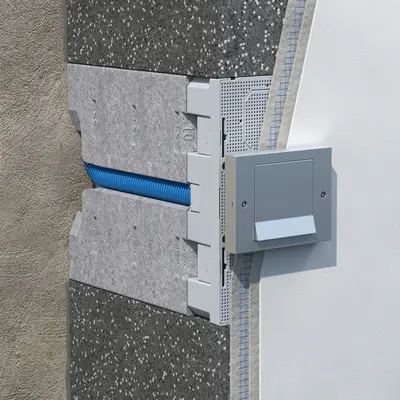

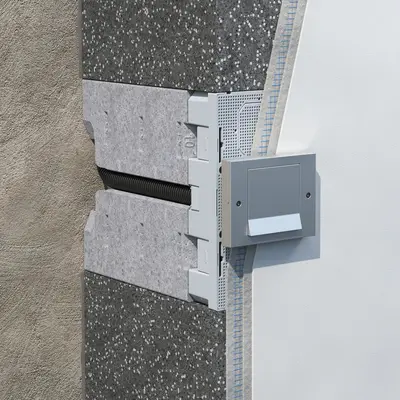

The system equipment carrier with combination is suitable for 1-way...

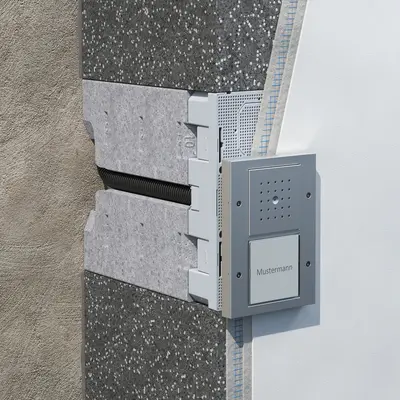

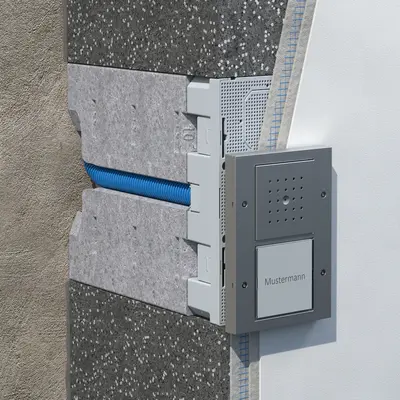

...2-way and 3-way combinations. Unused one-gang boxes can be used for future extensions without damaging the facade.

The system equipment carrier as a equipment carrier can be used as a cable exit...

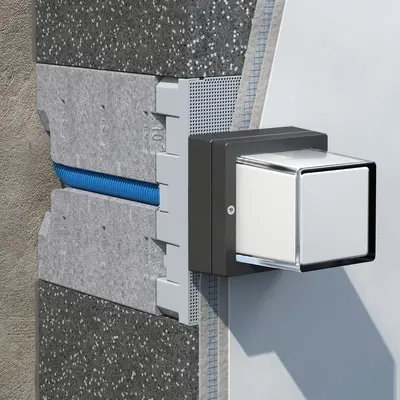

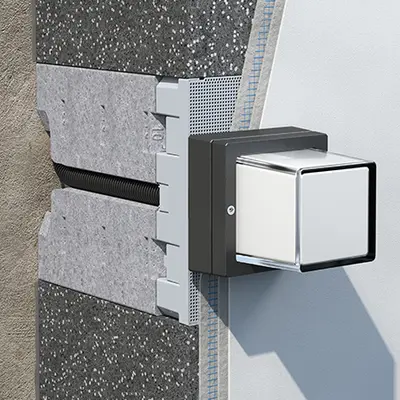

...for mounting luminaires and other accessories.

Heat bridge calculation

A heat bridge calculation carried out by the Passivhaus Institut in Darmstadt shows that the system equipment carrier has a point-specific heat bridge loss coefficient of xWB < 0,01 W/K and meets the requirements of a heat bridge-free facade.

Installation

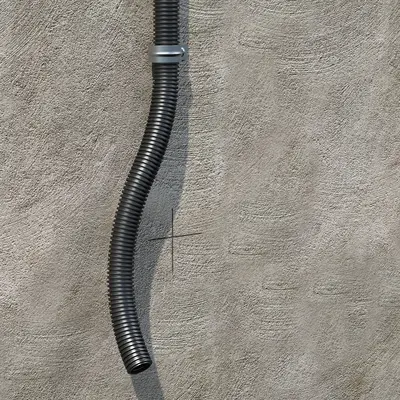

Masonry with conduit exit.

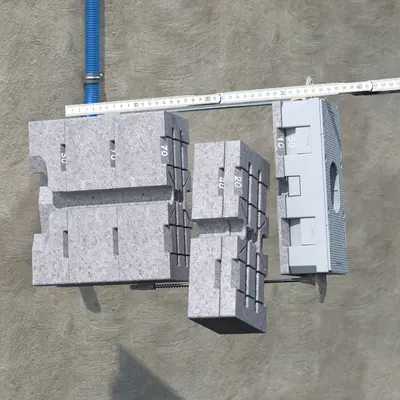

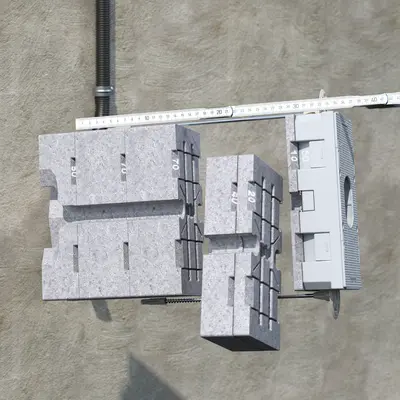

Adapt equipment carrier to insulation thickness by selecting suitable components.

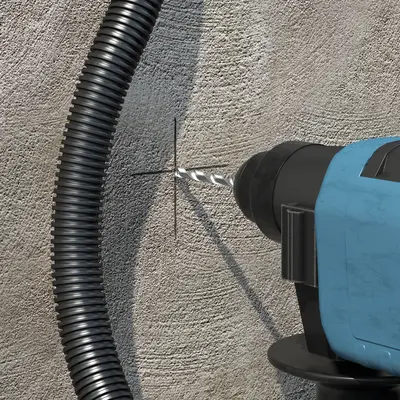

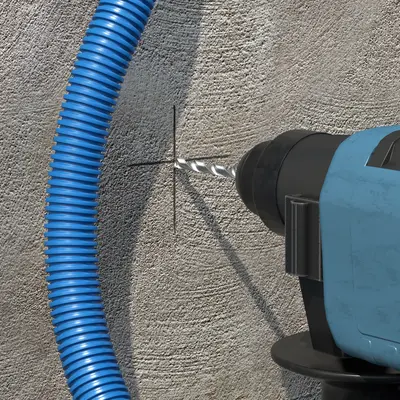

Cut Ø 8 mm drill hole at least 50 mm deep.

Remove the side lugs from the screw dowel. Note the different lengths!

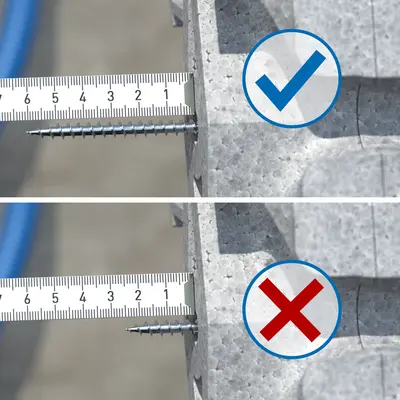

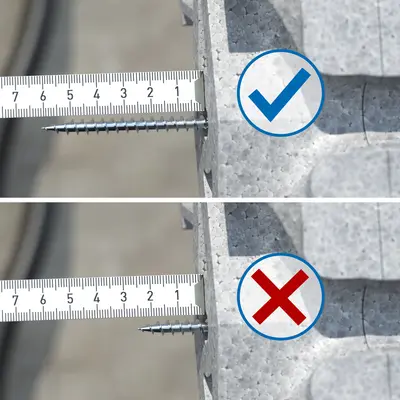

The dowel screw must protrude from the basic element by at least 40 mm.

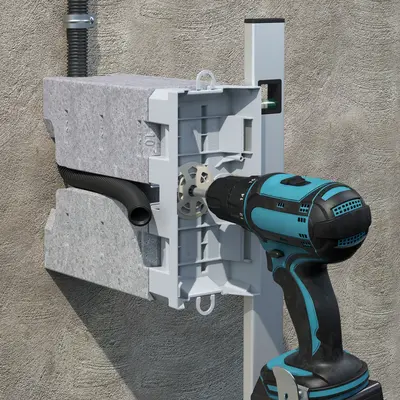

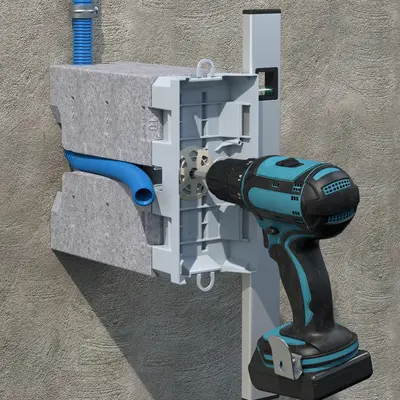

Hold the equipment carrier against the wall, align it, and fix it using the dowel.

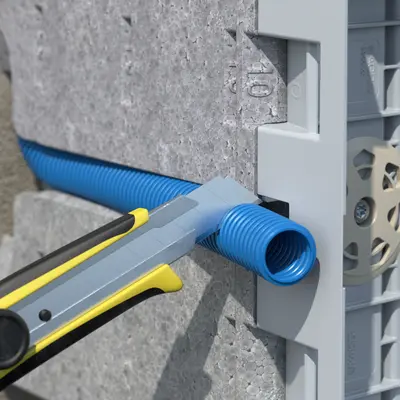

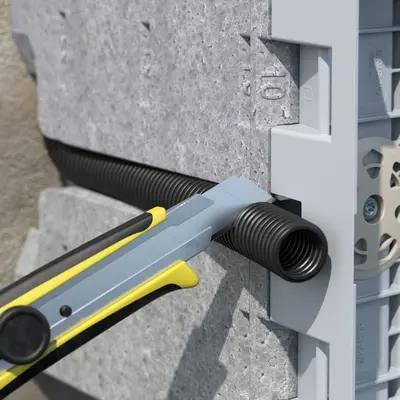

Press the conduit into the sideway guide and cut it to length.

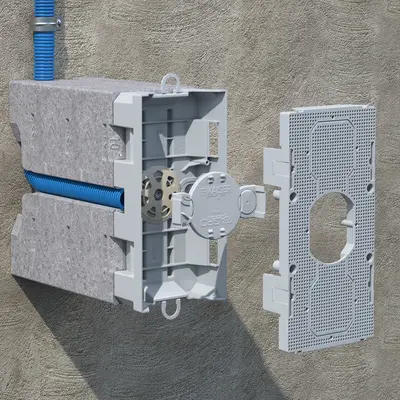

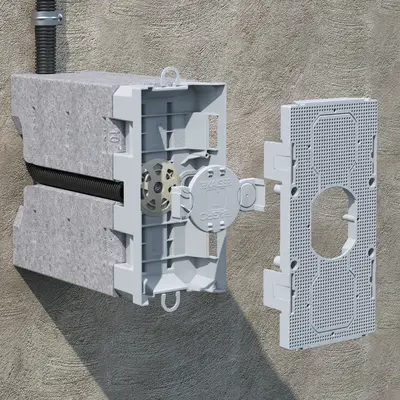

Latch on the required front part. Fit the Styrofoam cap and the dowel cover.

Tips and tricks

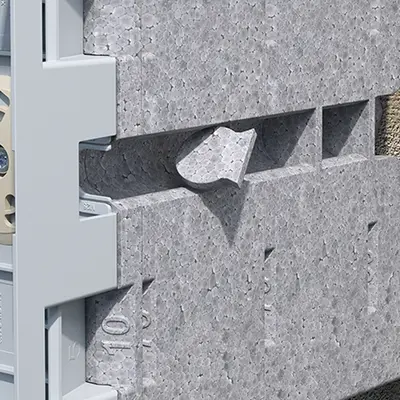

For an additional conduit, remove the bridges next to the Neopor® parts...

… and the perforated entry broken out in the case of the dowel cover

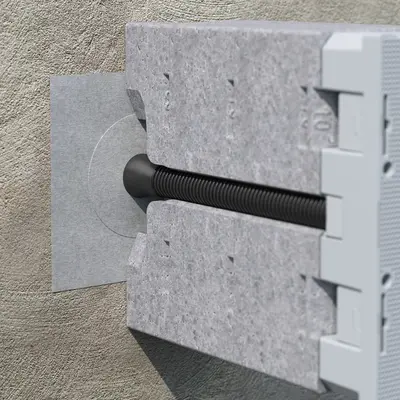

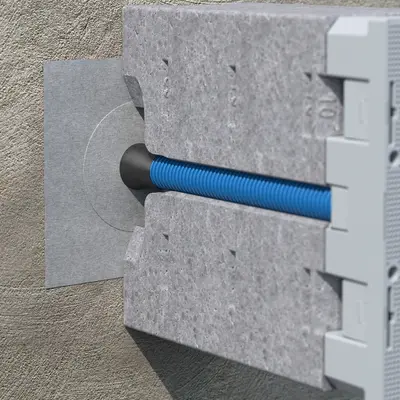

For air-tight installation, fit a suitable air-tight sleeve to the conduit exit side...

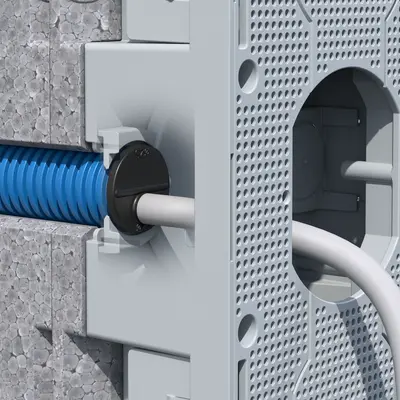

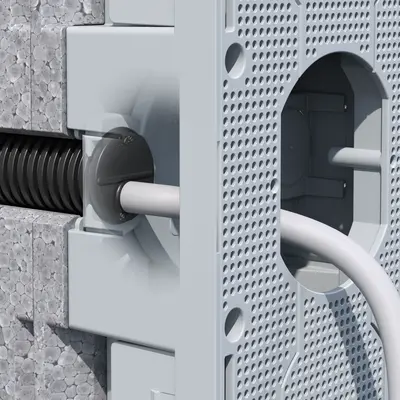

…and fit a sealing plug to the conduit.

Combinations with front panels

Multi-device front panel (Art. No. 9966.31 and 9966.32); opening Ø 1 x 68 mm.

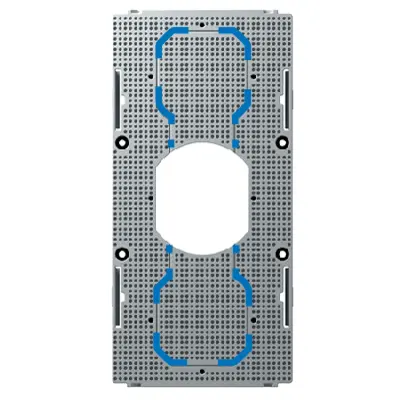

2-way and 3-way combinations can be made by breaking out the covers.

Delivery status (Art. No. 9966.21 and 9966.22), universal mounting plate.

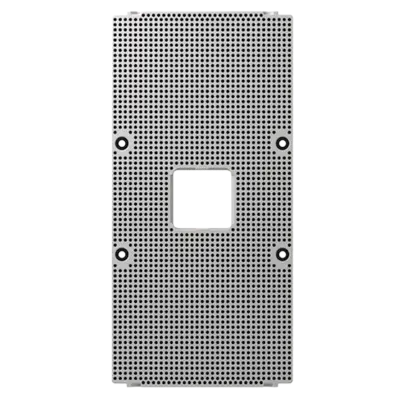

Universal mounting plate with broken-out exit for luminaires.
