Divisible cable glands 1917.CLICK series
1 / 2
Open Cadenas Modal

Divisible cable glands 1917.CLICK series, M25

AGRO AG
Artikel-No.: 1917.CLICK.25.G
EAN: 7611614498638
RUUS
LR Approved Marine Type
RoHs
UL94V0
UV ISO 4892-2A
UL Type 12
Installation opening (wall/ceiling) length: 25.5 mm
Installation opening (wall/ceiling) width: 25.5 mm
Cover for box/housing/casing Ø: 25.5 mm
Protection class: IP54
Shipping: 10
More product details
Datasheet (PDF)
Installation opening (wall/ceiling) length 20.5 mm 25.5 mm 32.5 mm
Installation opening (wall/ceiling) width 20.5 mm 25.5 mm 32.5 mm
Cover for box/housing/casing Ø 20.5 mm 25.5 mm 32.5 mm
Protection class IP54 IP54 IP54
Artikel-No. 1917.CLICK.20.G 1917.CLICK.25.G 1917.CLICK.32.G
E-Number
Packaging / Shipping - / 10 - / 10 - / 10
Show product chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24

Divisible cable glands 1917.CLICK series

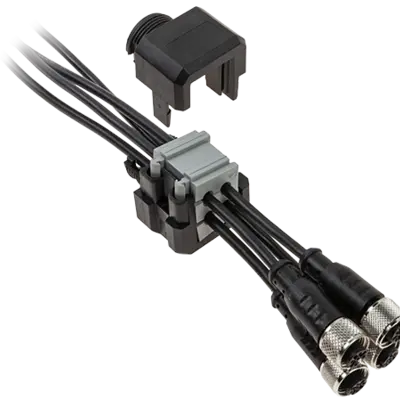

The 1917.CLICK series cable gland is a metric, divisible system for cables with and without connectors. It works with single and multiple cable grommets ranging from 2 to 16 mm in diameter.
  • Without screws, snap closing
  • High pull-out forces according to EN 62444
  • Robust construction IK10

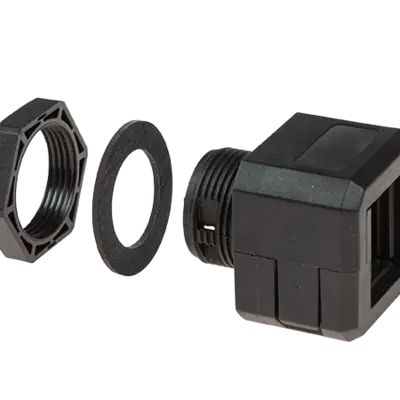

  • locknut and gasket included
  • Colour grey

Accessories

Grommets 1919.SPP series | Plugs 1950.ISP| Divisible locknuts 1950.DDMx

Further Information

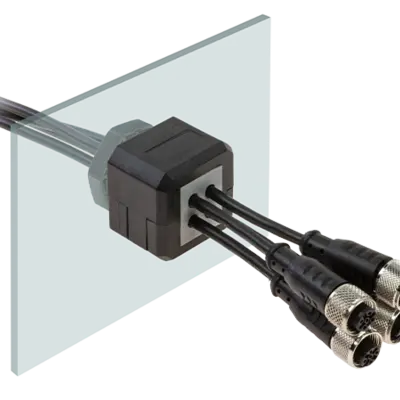

Detailed view
Detailed view

Max. grommet sizes

Max. grommet sizes

Dimension drawing 1917.CLICK

Dimension drawing 1917.CLICK

Dimensions / Form

Installation opening (wall/ceiling) length:
25.5 mm
Installation opening (wall/ceiling) width:
25.5 mm
Dimension A:
36.3 mm
Dimension B:
36.5 mm
Measurement value C:
42.2 mm
Cover for box/housing/casing Ø:
25.5 mm

Approvals / Certifications

Protection class:
IP54

Storage / Installation / Operation

Minimum operating temperature:
-40 °C
Maximum operating temperature:
130 °C
Instruction

Assembly instructions Splittable cable glands 1917.CLICK.XX

1.5 MB | 08/07/2025
Download
