Divisible cable glands 1917.CLICK.50 series
Installation opening (wall/ceiling) length 50.5 mm
Installation opening (wall/ceiling) width 50.5 mm
Cover for box/housing/casing Ø 50.5 mm
Protection class IP54
Artikel-No. 1917.CLICK.50.G
E-Number
Packaging / Shipping - / 10

Divisible cable glands 1917.CLICK.50 series

The 1917.CLICK.50 is a divisible cable gland with M50 thread. It includes the M50 nut. It can be used for small, multiple, perforable and large grommets for cables with or without connectors.
  • Without screws, snap closing
  • High pull-out forces according to EN 62444
  • Robust construction IK10
  • locknut and gasket included
  • Colour grey

Accessories

Grommets 1919.SPP series | Grommets 1919.SPG series | Plugs 1950.ISP | Divisible locknuts 1950.DDMx

Further Information

Possible configurations for 1917.CLICK.50
Possible configurations for 1917.CLICK.50

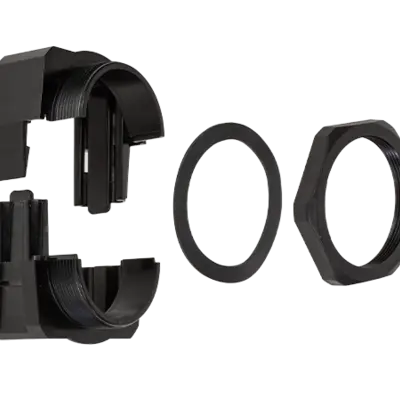

Detailed view
Detailed view

Max. grommet sizes

Max. grommet sizes

Dimension drawing 1917.CLICK.50

Dimension drawing 1917.CLICK.50

Dimensions / Form

Installation opening (wall/ceiling) length:
50.5 mm
Installation opening (wall/ceiling) width:
50.5 mm
Dimension A:
61.5 mm
Dimension B:
61.3 mm
Measurement value C:
42.8 mm
Cover for box/housing/casing Ø:
50.5 mm

Approvals / Certifications

Protection class:
IP54

Storage / Installation / Operation

Minimum operating temperature:
-40 °C
Maximum operating temperature:
130 °C
Instruction

Assembly instructions Splittable cable glands 1917.CLICK.XX

1.5 MB | 08/07/2025
