Divisible modular frame 1930.380MX series for large cables or corrugated conduits
1 / 2
Open Cadenas Modal

Divisible modular frame 1930.380MX series, 2 windows

AGRO AG
Artikel-No.: 1930.380MX2
EAN: 7611614497112
RUUS
EN45545HL3
LR Approved Marine Type
RoHs
UL94V0
UV ISO 4892-2A
Installation opening (wall/ceiling) length: a mm
Installation opening (wall/ceiling) width: .166.5 mm
Cover for box/housing/casing Ø: ax.166.5x72 mm
Protection class: IP54
Shipping: 1
More product details
Datasheet (PDF)
Installation opening (wall/ceiling) length a mm a mm a mm
Installation opening (wall/ceiling) width .166.5 mm .261.0 mm .355.5 mm
Cover for box/housing/casing Ø ax.166.5x72 mm ax.261.0x72 mm ax.355.5x72 mm
Protection class IP54 IP54 IP54
Artikel-No. 1930.380MX2 1930.380MX3 1930.380MX4
E-Number
Packaging / Shipping - / 1 - / 1 - / 1
Show product chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24

Divisible modular frame 1930.380MX series for large cables or corrugated conduits

The splittable 1930.380MX frames are used for routing large diameter cables and corrugated pipes through electric cabinets of all sorts. The solution is modular and thus easy to expand.
  • Fast and easy fixing of large diameter cables and corrugated pipes
  • modular system
  • Diameters from 36 to 65 mm
  • horizontal oder vertical installation
  • no need of gasket
  • Frame screws in AISI304 Stainless Steel
  • Colour black

Accessories

Grommets 1939.SPH series

Further Information

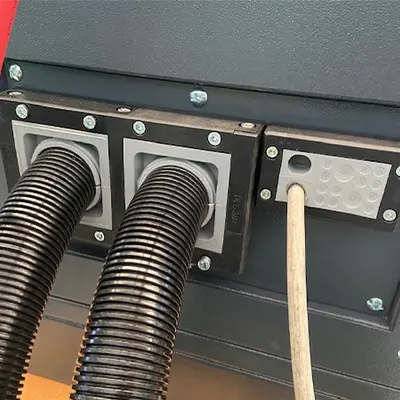

Application Example
Application Example
Detailed view
Detailed view

Dimension drawing 1930.380MX2

Dimension drawing 1930.380MX2

Dimensions / Form

Installation opening (wall/ceiling) length:
a mm
Installation opening (wall/ceiling) width:
.166.5 mm
Dimension A:
210.5 mm
Dimension B:
116 mm
Measurement value C:
33.5 mm
Cover for box/housing/casing Ø:
ax.166.5x72 mm

Approvals / Certifications

Protection class:
IP54

Storage / Installation / Operation

Minimum operating temperature:
-40 °C
Maximum operating temperature:
155 °C
Instruction

Assembly instructions Divisible plastic frame 1930.380MXX

1.8 MB | 08/07/2025
Download
