Cable grommets 1939.SPH
1 / 2
Open Cadenas Modal

Grommet 380M & 380MX series

AGRO AG
Artikel-No.: 1939.SPH.42.G
EAN: 7611614497167
RUUS
EN45545HL3
LR Approved Marine Type
RoHs
UL94V0
UV ISO 4892-2A
Protection class: IP54
Shipping: 1
More product details
Datasheet (PDF)
Protection class IP54 IP54 IP54 IP54 IP54 IP54 IP54 IP54
Artikel-No. 1939.SPH.0.G 1939.SPH.38.G 1939.SPH.42.G 1939.SPH.46.G 1939.SPH.50.G 1939.SPH.54.G 1939.SPH.58.G 1939.SPH.62.G
E-Number
Packaging / Shipping - / 1 - / 1 - / 1 - / 1 - / 1 - / 1 - / 1 - / 1
Show product chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24 chevron_right_FILL0_wght400_GRAD0_opsz24

Cable grommets 1939.SPH

The cable grommets of the 1939.SPH series enable cable diameters between 36 and 65 mm to be accommodated in the split frames of the 1930.380M and 1930.380MX series.
  • Cable grommets for cables or large corrugated conduits
  • Diameters from 36 to 65 mm
  • UL 94 V-0
  • slitted grommet
  • Colour grey

Further Information

Application Example
Application Example

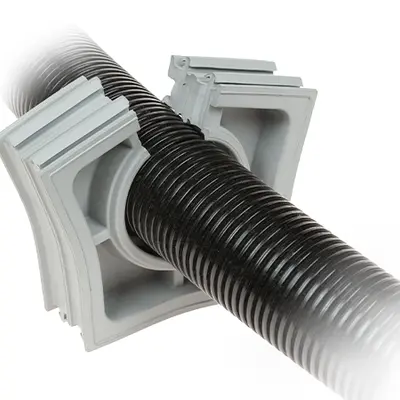

Detailed view
Detailed view

Dimension drawing 1939.SPH

Dimension drawing 1939.SPH

Dimensions / Form

Ø min.:
41.0 mm
Ø max.:
44.0 mm
Dimension A:
84.6 mm
Dimension B:
87.3 mm
Measurement value C:
34.0 mm

Approvals / Certifications

Protection class:
IP54

Storage / Installation / Operation

Minimum operating temperature:
-40 °C
Maximum operating temperature:
110 °C
