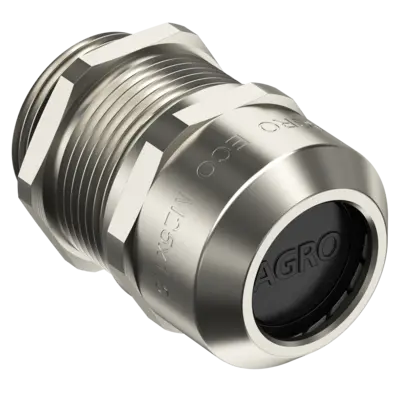

Cable glands ECO HL1

Short entry thread metric

Thread	M16x1.5	M20x1.5	M25x1.5	M32x1.5	M40x1.5
Min. clamping range	7 mm	7 mm	12 mm	13.5 mm	20.5 mm
Max. clamping range	9.5	13 mm	17.5 mm	21 mm	28.5 mm
Spanner size	18 mm	24 mm	30 mm	36 mm	46 mm
Max. shield braiding	9.5	13 mm	17.5 mm	21 mm	28.5 mm
Shield braid min.	5 mm	5 mm	8 mm	12 mm	19 mm
Thread type	metric	metric	metric	metric	metric
Thread length	short	short	short	short	short
clamp technology	Lamella technology	Lamella technology	Lamella technology	Lamella technology	Lamella technology
Contact	Contact spring	Contact spring	Contact spring	Contact spring	Contact spring
Protection class	IP68	IP68	IP68	IP68	IP68
Protection class with condition	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal
Article No.	1087.17.095	1087.20.130	1087.25.175	1087.32.210	1087.40.285
E-Number	121188008	121188018	121188028	121188038	121188048
Packaging / Shipping	- / 50	- / 50	- / 25	- / 25	- / 10
