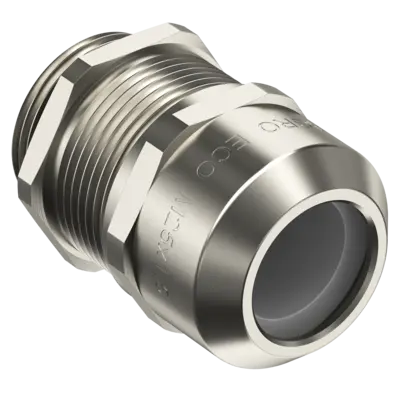

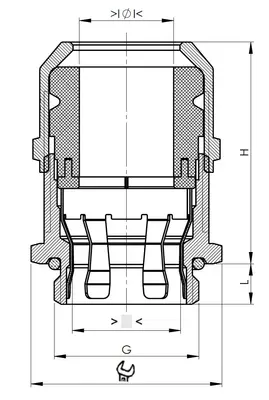

Cable glands ECO HL3

Short entry thread metric

One-piece sealing ring

Variants (9)

Thread	M40x1.5	M40x1.5	M20x1.5	M16x1.5	M20x1.5	M25x1.5	M25x1.5	M32x1.5	M32x1.5
Min. clamping range	20.5 mm	23 mm	8 mm	6 mm	9 mm	8 mm	12 mm	13.5 mm	16 mm
Max. clamping range	25.5 mm	28.5 mm	11 mm	8 mm	7 mm	13 mm	16 mm	18 mm	21 mm
Spanner size	46 mm	46 mm	24 mm	18 mm	24 mm	30 mm	30 mm	36 mm	36 mm
Max. shield braiding	25.5 mm	28.5 mm	11 mm	8 mm	9 mm	13 mm	16 mm	18 mm	21 mm
Shield braid min.	19 mm	19 mm	5 mm	5 mm	5 mm	8 mm	8 mm	12 mm	12 mm
Thread type	metric	metric	metric	metric	metric	metric	metric	metric	metric
Thread length	short	short	short	short	short	short	short	short	short
clamp technology	Compression technology	Compression technology	Compression technology	Compression technology	Compression technology	Compression technology	Compression technology	Compression technology	Compression technology
Protection class	IP68	IP68	IP68	IP68	IP68	IP68	IP68	IP68	IP68
Protection class with condition	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal	IP68 (5 bar), IP 68 / IP 69K with additional seal
Article No.	F1088.40.255	F1088.40.285	F1088.20.110	F1088.17.080	F1088.20.090	F1088.25.130	F1088.25.160	F1088.32.180	F1088.32.210
E-Number	121188248	121188258	121188178	121188158	121188168	121188188	121188198	121188208	121188218
Packaging / Shipping	- / 10	- / 10	- / 50	- / 50	- / 50	- / 25	- / 25	- / 25	- / 25
