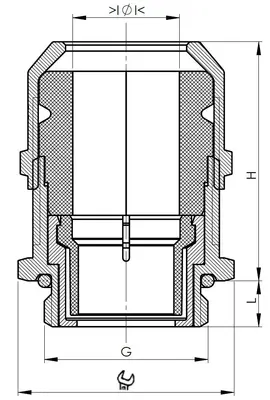

Cable glands ECO HV

Short entry thread metric

Variants (8)

Thread	M20x1.5	M20x1.5	M25x1,5	M25x1.5	M32x1.5	M32x1.5	M40x1.5	M40x1.5
Min. clamping range	7 mm	8 mm	10 mm	12 mm	14 mm	16 mm	20.5 mm	23 mm
Max. clamping range	9 mm	11 mm	13 mm	16 mm	18 mm	21 mm	25.5 mm	28.5 mm
Spanner size	24 mm	24 mm	30 mm	30 mm	36 mm	36 mm	46 mm	46 mm
Max. shield braiding	7 mm	9.5 mm	12 mm	14.5 mm	16 mm	19 mm	23 mm	25.5 mm
Shield braid min.	5 mm	7 mm	8 mm	11 mm	11 mm	14 mm	17.5 mm	20.5 mm
Article No.	1090.20.090	1090.20.110	1090.25.130	1090.25.160	1090.32.180	1090.32.210	1090.40.255	1090.40.285
E-Number	121188538	121188548	121188558	121188568	121188578	121188588	121188598	121188608
Packaging / Shipping	- / 50	- / 50	- / 25	- / 25	- / 25	- / 25	- / 10	- / 10
Show product
