Installation housing AGRO ThermoX® Lite

similar

Installation housing AGRO ThermoX® Lite
Artikel-No. 9340-04
E-No 372912339
  • Pre-drilled 20 mm and 25 mm pipe entries
  • Tested with the most common LED spotlights
  • For insulated or uninsulated false or suspended ceilings
  • Building material class A2-s1, d0, can serve as preventive fire protection
  • Fully closed installation housing despite conduit entries

Installation housing AGRO ThermoX® Lite

The new ThermoX® Lite product line is designed as a range of temperature-resistant housings for recessed lights. With its knock-in conduit entries, it is unique on the gypsum-fibre market. This range has been designed and tested for flexible installation of rigid and swivel luminaires with different mounting depths to ensure maximum durability.
  • For installation in different ceiling constructions
  • Knock-in conduit entries 20/25 mm
  • For luminaires and fixtures of all types

Dimensions / Form

Product length:
230 mm
Product width:
170 mm
Product depth:
110 mm
Installation opening (wall/ceiling) length:
195 mm
Installation opening (wall/ceiling) width:
135 mm
Installation opening (for devices) width:
140 mm
Cover for box/housing/casing Ø:
195x135 mm

Assembly / Installation

Assembly type:
HW (drywall/lightweight construction), hollow ceiling
Wall thickness min.:
15 mm
Wall thickness max.:
15 mm

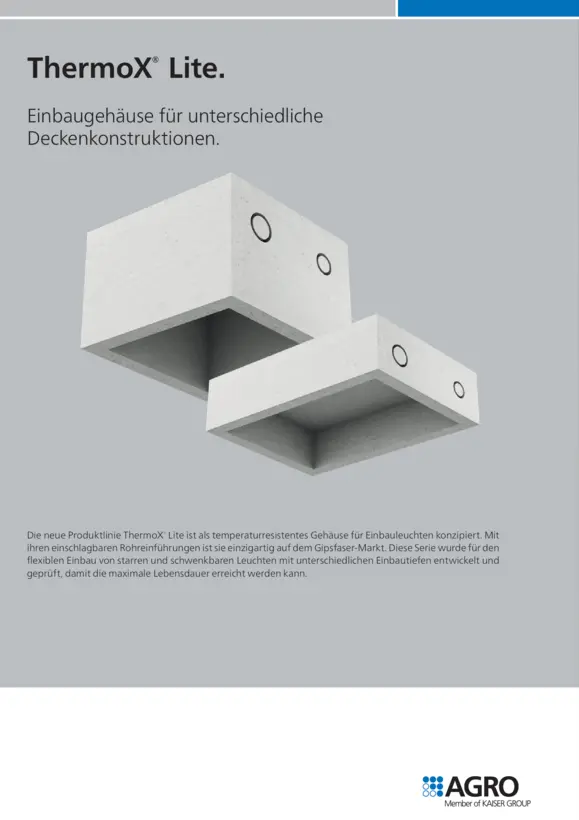

Installation housing ThermoX® Lite
Flyer

Installation housing ThermoX® Lite

581.3 KB
