AGRO Wood System

accessories

Push-on cover with diagonal support option, RAL 9010
Artikel-No. 9909.22
E-No 155910028
  • Conforms to EN 60670-1
  • UV-resistant
Push-on cover with insulated centre screw, RAL 9010
Artikel-No. 9909.22.37
E-No 155911028
  • Conforms to EN 60670-1
  • With two isolated and tested centre screws (L=40/70 mm)
  • UV-resistant
Push-on cover with diagonal support option, RAL 9010
Artikel-No. 9909.10
E-No 155910808
  • Conforms to EN 60670-1
  • With two isolated and tested centre screws (L=40/70 mm)
  • UV-resistant
Push-on cover with insulated centre screw, RAL 9010
Artikel-No. 9909.10.37
E-No 155911808
  • Conforms to EN 60670-1
  • With two isolated and tested centre screws (L=40/70 mm)
  • UV-resistant
DIAGONAL SUPPORT
Artikel-No. 9907.60
E-No 155910128
Push-on cover with central fixing, RAL 9010
Artikel-No. 9909.20
E-No 155910018
  • Conforms to EN 60670-1
  • With two isolated and tested centre screws (L=40/70 mm)
  • UV-resistant
Push-on cover with corner fixing, RAL 9010
Artikel-No. 9909.12
E-No 155910408
  • Conforms to EN 60670-1
  • UV-resistant
Screwed-on cover with plastic screws, RAL 9010
Artikel-No. 9909.02
E-No 155910308
  • Conforms to EN 60670-1
  • UV-resistant
Screwed-on cover with metal screws, RAL 9010
Artikel-No. 9909.05
E-No 155910508
  • Conforms to EN 60670-1
  • UV-resistant
Cover with socket (Swiss type 13), RAL 9010
Artikel-No. 9909.02.13
E-No 155990108
  • Conforms to EN 60670-1
  • UV-resistant
Cover with socket (Swiss type 15), RAL 9010
Artikel-No. 9909.02.15
E-No 155990208
  • Conforms to EN 60670-1
  • UV-resistant
Cover with socket (Swiss type 23), RAL 9010
Artikel-No. 9909.02.23
E-No 155990408
  • Conforms to EN 60670-1
  • UV-resistant
Cover with socket (Swiss type 25), RAL 9010
Artikel-No. 9909.02.25
E-No 155990508
  • Conforms to EN 60670-1
  • UV-resistant

AGRO Wood System

The use of prefabricated timber panels in building construction is booming, and with it, the demand for well-designed, time-saving solutions to facilitate electrical installation work. This is where the new AGRO Wood system comes in. The products are perfectly tailored to timber frame construction, helping to maximise efficiency in panel prefabrication and on the construction site.
  • For modular and prefabricated construction
  • For M25 conduit entries
  • Tool-free conduit connection

Installation

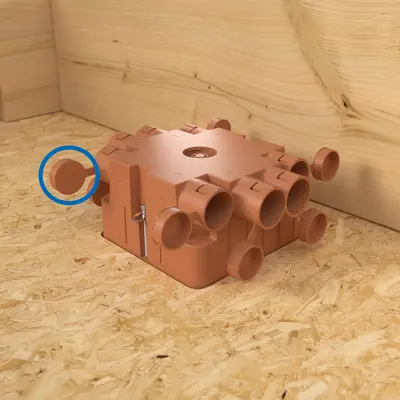

Before installation, cut off the positioning element. Then insert the AGRO flush-mounted junction box into the properly dimensioned hole ...
Before installation, cut off the positioning element. Then insert the AGRO flush-mounted junction box into the properly dimensioned hole ...

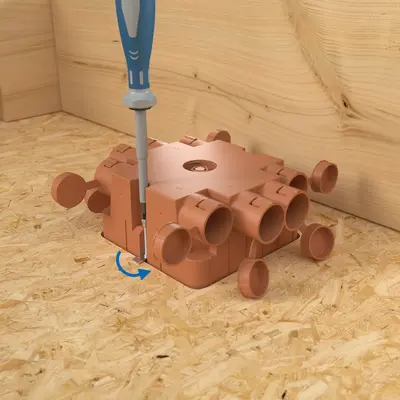

… and tighten the integrated screws counterclockwise.
… and tighten the integrated screws counterclockwise.

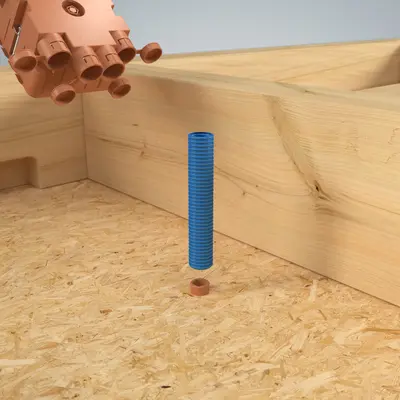

Alternatively, screw the positioning element in place at the desired location, and either mount the junction box directly on it or, if necessary to bridge a height gap, cut a piece of conduit to the desired length ...
Alternatively, screw the positioning element in place at the desired location, and either mount the junction box directly on it or, if necessary to bridge a height gap, cut a piece of conduit to the desired length ...

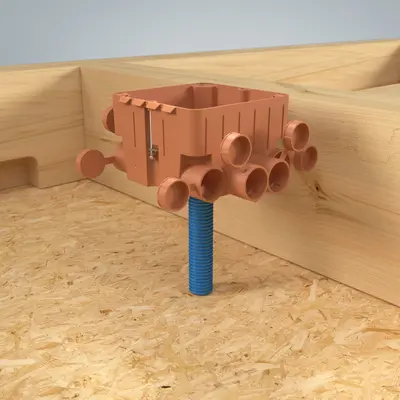

... and place the conduit on the positioning element before mounting the junction box on the conduit.
... and place the conduit on the positioning element before mounting the junction box on the conduit.

Note

The openings in the wooden sheeting can be easily created using drills and saws or precisely cut by means of CNC milling. Conduits are automatically secured when inserted into the unit, simply ‘clicking’ into place. Any conduit inlets that are not required must be sealed using the integrated inlet caps. Thanks to the unit’s clever design and maximum flexibility, installation is possible from either side of the wooden element.

Dimensions / Form

Product length:
115 mm
Product width:
115 mm
Product depth:
75 mm

Connections / Entries

Type of entry:
electric cable, conduit
Number of entries:
12
For conduit Ø:
20 mm, 25 mm
Type of entry:
conduit connection piece
conduit retention:
Yes

Assembly / Installation

Room boundary type:
Wooden modular/room cell construction, Wooden panel wall (BSH, BSP, CLT)
Installation type:
Classic wiring/assembly
Assembly type:
HW (drywall/lightweight construction)
Room delimitation type Design:
Wood (frame) construction
Installation:
Horizontal / Vertical
Device fastening in/on box/housing:
Screw attachment

Safety / Properties

Special application:
Wood construction, Modular and prefabricated houses

Features

Design:
junction casing
Design:
1-fold
Expandability/Combinability:
No
Integrated accessories:
Without
Optional accessories:
Cover

Material / Colour

Material:
Plastic PP
Colour:
brown
RAL no.:
8023
Surface:
untreated

Approvals / Certifications

Glow wire test:
850° C
Instruction

AGRO Wood System

Installation instructions for electrical installations in factory production, timber construction and modular construction.
