System equipment carrier

Modular support for securely attaching electrical installations in or to heat-insulating external facades. Stable attachment of external lights, sockets, motion detectors, external temperature sensors, radio receivers, anemometers, cameras, letter boxes and much more.
  • Compatible with Feller SNAPFIX®
  • Quick fastening with screw-in wall-plug_x000D_
  • Prevents heat bridges
  • Can be attached on surfaces made of concrete, bricks, wood, OSB, MDF, gypsum fibreboard etc.
  • Easy disassembly

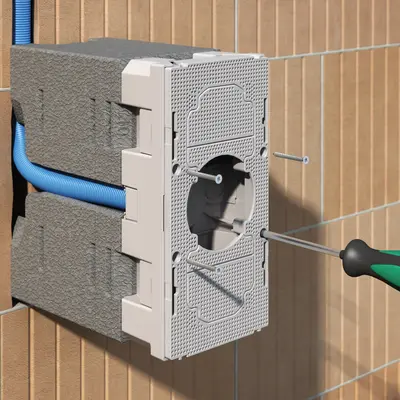

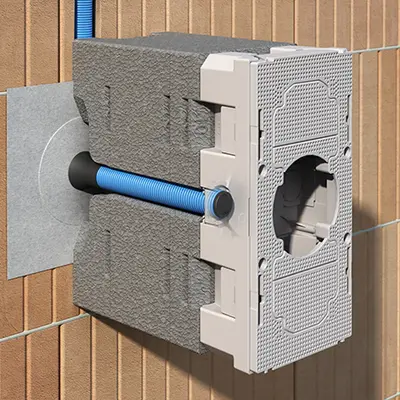

Examples of use

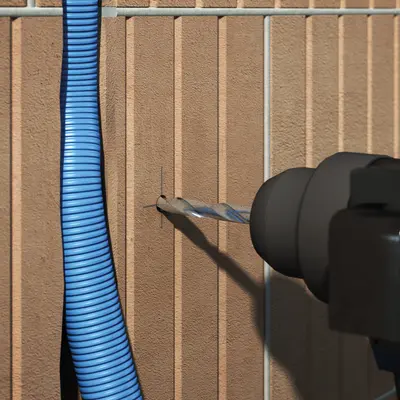

Installation

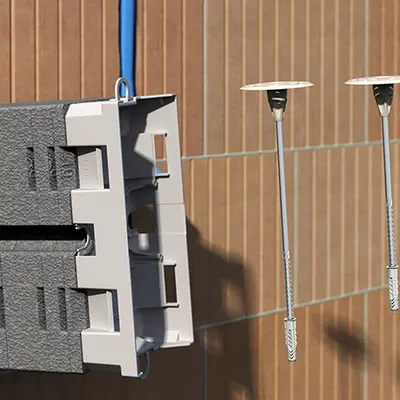

Remove the side lugs from the impact dowel. Note the different lengths!
Remove the side lugs from the impact dowel. Note the different lengths!

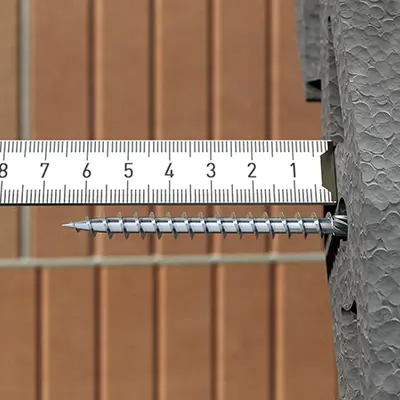

Depending on the length of the dowel, it must protrude from the equipment carrier by at least 30 mm.
Depending on the length of the dowel, it must protrude from the equipment carrier by at least 30 mm.

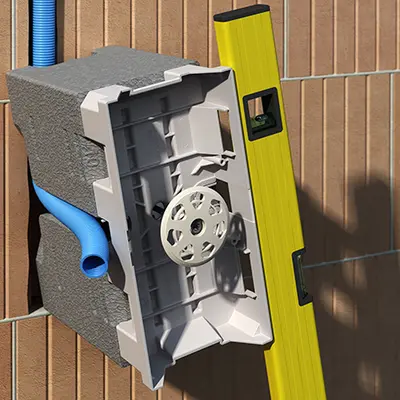

Hold the equipment carrier against the wall, align it, and fix it using the dowel.
Hold the equipment carrier against the wall, align it, and fix it using the dowel.

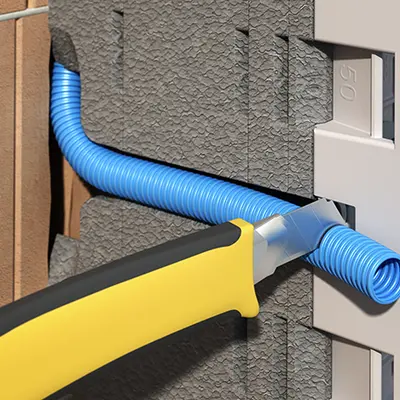

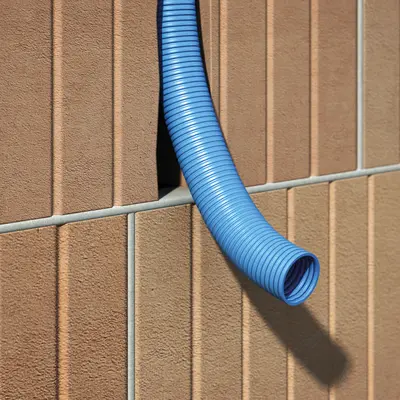

Press the conduit into the side guide and cut it to length.
Press the conduit into the side guide and cut it to length.

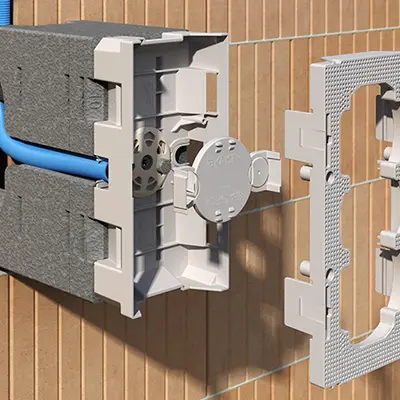

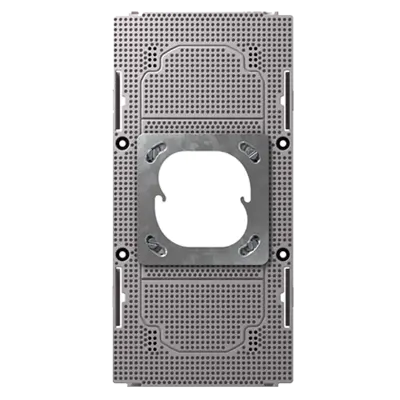

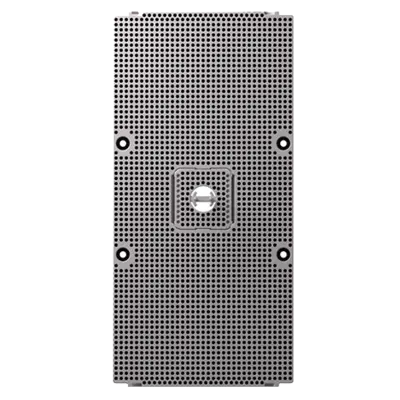

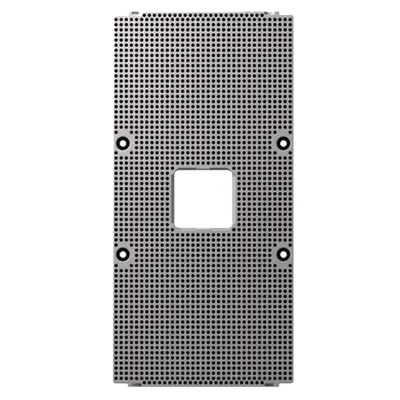

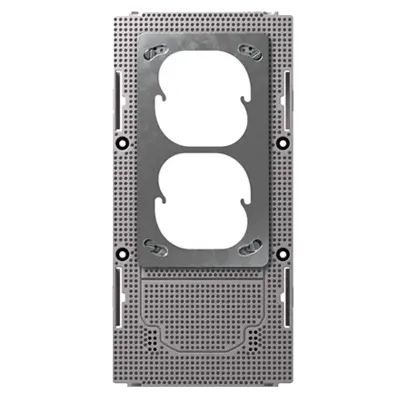

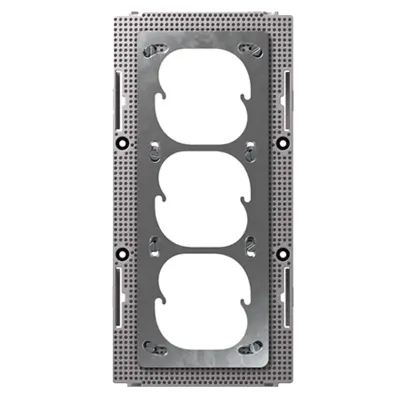

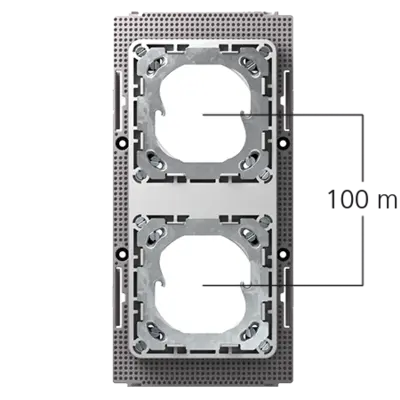

Combinations with front panels

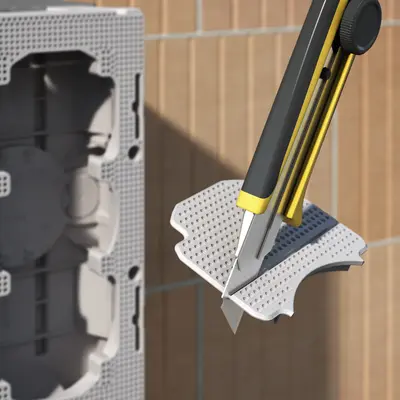

Tips and tricks

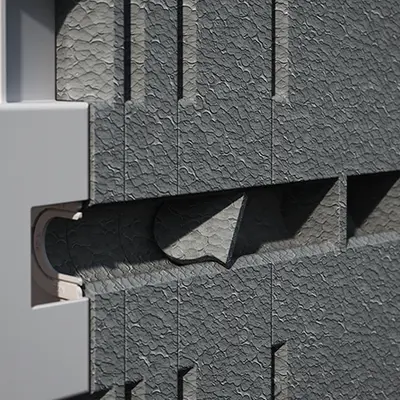

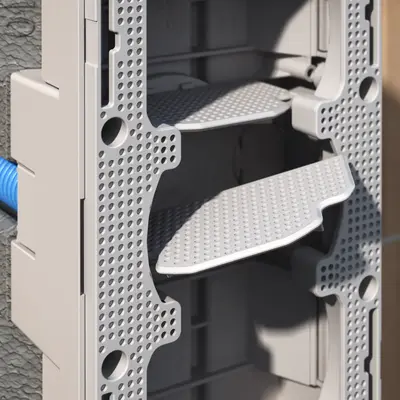

… and the perforated entry broken out in the case of the dowel cover
… and the perforated entry broken out in the case of the dowel cover

System-Geräteträger bei Dämmstärken 100 - 160 mm

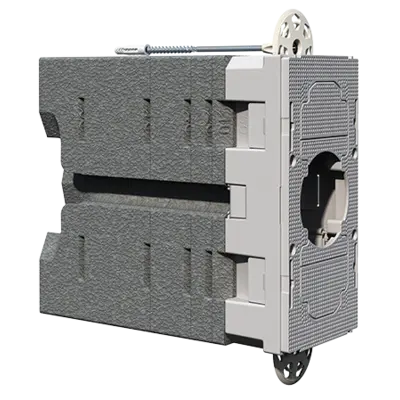

For insulation thickness < 160 mm, order product 9966.11 or 9966.21...
For insulation thickness < 160 mm, order product 9966.11 or 9966.21...

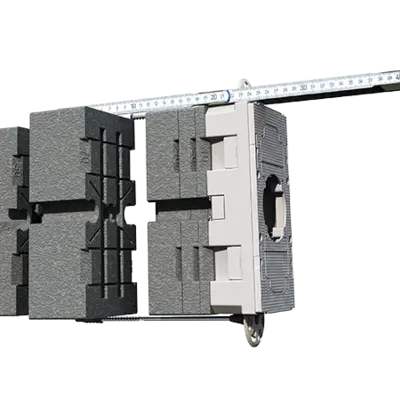

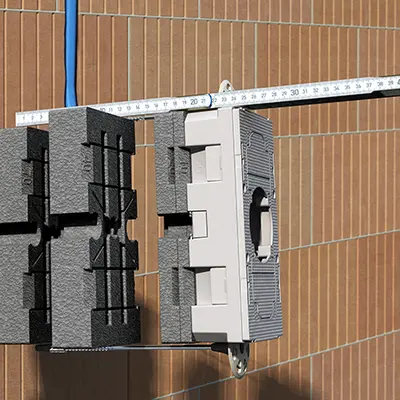

... remove as many elements as necessary until the appropriate insulation thickness (min. 100 mm) is achieved.
... remove as many elements as necessary until the appropriate insulation thickness (min. 100 mm) is achieved.

Heat bridge calculation

Ein Wärmebrückennachweis vom Passivhaus Institut Dr. Feist, Darmstadt, hat ergeben, dass die Wärmeleitfähigkeit nur unwesentlich verändert wird und somit nachweislich die wärmebrückenfreie Elektroinstallation gewahrt bleibt. Der Verlustkoeffizient „× WB“ beträgt 0,00585 W/K.
Heat bridge calculation

Heat bridge calculation

A heat bridge calculation carried out by the Passivhaus Institut in Darmstadt shows that the system equipment carrier has a point-specific heat bridge loss coefficient of xWB < 0,01 W/K and meets the requirements of a heat bridge-free facade.
Heat bridge calculation

Dimensions / Form

Product length:
220 mm
Product width:
110 mm
Product depth:
100 mm

Connections / Entries

For conduit Ø:
20 mm, 25 mm
System equipment carrier.
