AGRO Wood System
1 / 2

Wall-Floor Transition Units Wood

AGRO AG
Artikel-No.: 4443.01
E-No: 126564104
EAN: 7611614510255
Halogen-free
CE
S-Plus
Product length: 100 mm
Product width: 160 mm
Product depth: 55 mm
Material: Plastic PP
Type of entry: electric cable, conduit
Number of entries: 4
For conduit Ø: 25 mm
Type of entry: conduit connection piece
Room boundary type: Wooden modular/room cell construction, Wooden panel wall (BSH, BSP, CLT)
Glow wire test: 850° C
Halogen-free: Yes
Installation type: Classic wiring/assembly
Shipping: 50
More product details
Datasheet (PDF)

AGRO Wood System

The use of prefabricated timber panels in building construction is booming, and with it, the demand for well-designed, time-saving solutions to facilitate electrical installation work. This is where the new AGRO Wood system comes in. The products are perfectly tailored to timber frame construction, helping to maximise efficiency in panel prefabrication and on the construction site.
  • For modular and prefabricated construction
  • For M25 conduit entries
  • Tool-free conduit connection

Installation

Nail, screw or staple the transition unit Wood to the inside surface of a prefabricated element.
Nail, screw or staple the transition unit Wood to the inside surface of a prefabricated element.
Click the conduits into place. The conduit connection points are designed to hold the conduits in place and are numbered.
Click the conduits into place. The conduit connection points are designed to hold the conduits in place and are numbered.
Place insulation material as required …
Place insulation material as required …
… and install the wooden sheet.
… and install the wooden sheet.
Create a hole to suit the shape of the transition unit Wood.
Create a hole to suit the shape of the transition unit Wood.
Before connecting the conduits, attach cover paneling as required.
Before connecting the conduits, attach cover paneling as required.
Insert the conduits until they “click” into place. The conduit connection points are designed to hold the conduits in place and are numbered.
Insert the conduits until they “click” into place. The conduit connection points are designed to hold the conduits in place and are numbered.

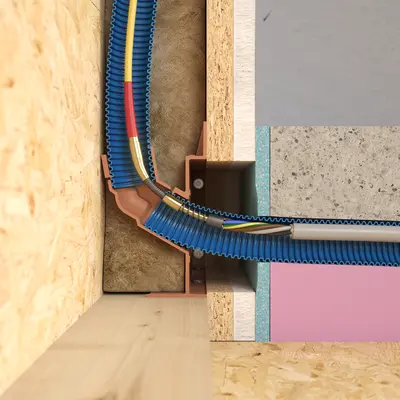

The curved conduit entries enable cables to be pulled through easily and reliably.
The curved conduit entries enable cables to be pulled through easily and reliably.

Note

The individual cable feedthroughs are numbered at both ends. Conduits are automatically secured when inserted into the transition unit, “clicking” into place. Thanks to its clever design and great flexibility, installation is possible from either side of the connecting wooden sheet.

Dimensions / Form

Product length:
100 mm
Product width:
160 mm
Product depth:
55 mm

Connections / Entries

Type of entry:
electric cable, conduit
Number of entries:
4
For conduit Ø:
25 mm
Type of entry:
conduit connection piece
conduit retention:
Yes

Assembly / Installation

Room boundary type:
Wooden modular/room cell construction, Wooden panel wall (BSH, BSP, CLT)
Installation type:
Classic wiring/assembly
Assembly type:
HW (drywall/lightweight construction)
Room delimitation type Design:
Wood (frame) construction
Installation:
Horizontal / Vertical
Device fastening in/on box/housing:
Screw attachment

Safety / Properties

Halogen-free:
Yes
Special application:
Wood construction, Modular and prefabricated houses

Material / Colour

Material:
Plastic PP
Colour:
brown
RAL no.:
8023
Surface:
untreated

Approvals / Certifications

Glow wire test:
850° C
Instruction

AGRO Wood System

Installation instructions for electrical installations in factory production, timber construction and modular construction.

1.6 MB | 09/08/2026
Download
AGRO Wood System
Brochure

AGRO Wood System

Electrical installations in factory production, timber construction and modular construction

10.2 MB
