AGRO Wood System
1 / 2

Wall and Floor Ceiling Junctions Wood

AGRO AG
Artikel-No.: 4442.01
E-No: 126564094
EAN: 7611614510262
Halogen-free
CE
S-Plus
Product Ø: 38 mm
Product length: 60 mm
Product width: 60 mm
Product depth: 35 mm
Material: Plastic PP
Type of entry: electric cable, conduit
Number of entries: 1
For conduit Ø: 25 mm
Type of entry: conduit connection piece
Room boundary type: Wooden modular/room cell construction, Wooden panel wall (BSH, BSP, CLT)
Glow wire test: 850° C
Halogen-free: Yes
Installation type: Classic wiring/assembly
Shipping: 50
More product details
Datasheet (PDF)

AGRO Wood System

The use of prefabricated timber panels in building construction is booming, and with it, the demand for well-designed, time-saving solutions to facilitate electrical installation work. This is where the new AGRO Wood system comes in. The products are perfectly tailored to timber frame construction, helping to maximise efficiency in panel prefabrication and on the construction site.
  • For modular and prefabricated construction
  • For M25 conduit entries
  • Tool-free conduit connection

Installation

For flush mounting, the external plate must be broken off with pliers so that the element does not protrude from the prefabricated panel.
For flush mounting, the external plate must be broken off with pliers so that the element does not protrude from the prefabricated panel.
Create a hole of the appropriate diameter in the prefabricated panel.
Create a hole of the appropriate diameter in the prefabricated panel.
Push a conduit through the hole from the rear and “click” it into the junction element so that it is held in place.
Push a conduit through the hole from the rear and “click” it into the junction element so that it is held in place.
Pull the conduit back through the hole until the junction element is flush with the external surface.
Pull the conduit back through the hole until the junction element is flush with the external surface.

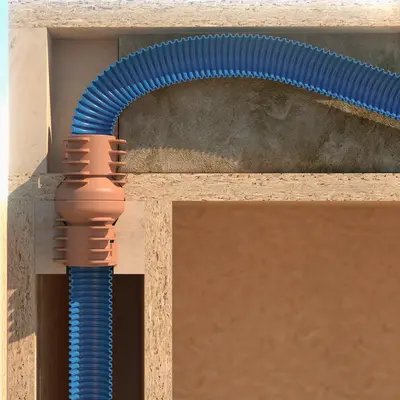

The junction elements can be used for either wall transitions …
The junction elements can be used for either wall transitions …
… or for floor/ceiling transitions. In both cases they facilitate easy and reliable cabling.
… or for floor/ceiling transitions. In both cases they facilitate easy and reliable cabling.
Alternatively, the junction element can be nailed to the inside of a wooden panel.
Alternatively, the junction element can be nailed to the inside of a wooden panel.

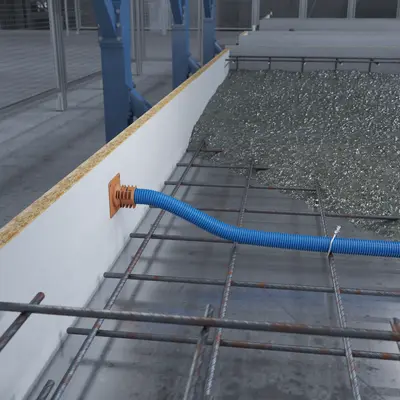

Click the conduit into place and fill the structural element with the appropriate material.
Click the conduit into place and fill the structural element with the appropriate material.

Note

The Wall and Floor/Ceiling Junction element can be inserted into the wooden structure from the outer surface via a milled hole (38 mm in diameter) or simply nailed in place. Conduits are automatically secured when inserted into the junction element, “clicking” into place.

Dimensions / Form

Product Ø:
38 mm
Product length:
60 mm
Product width:
60 mm
Product depth:
35 mm

Connections / Entries

Type of entry:
electric cable, conduit
Number of entries:
1
For conduit Ø:
25 mm
Type of entry:
conduit connection piece
conduit retention:
Yes

Assembly / Installation

Room boundary type:
Wooden modular/room cell construction, Wooden panel wall (BSH, BSP, CLT)
Installation type:
Classic wiring/assembly
Assembly type:
HW (drywall/lightweight construction)
Room delimitation type Design:
Wood (frame) construction
Installation:
Horizontal / Vertical
Device fastening in/on box/housing:
Screw attachment

Safety / Properties

Halogen-free:
Yes
Special application:
Wood construction, Modular and prefabricated houses

Material / Colour

Material:
Plastic PP
Colour:
brown
RAL no.:
8023
Surface:
untreated

Approvals / Certifications

Glow wire test:
850° C
Instruction

AGRO Wood System

Installation instructions for electrical installations in factory production, timber construction and modular construction.

1.6 MB | 09/08/2026
Download
AGRO Wood System
Brochure

AGRO Wood System

Electrical installations in factory production, timber construction and modular construction

10.2 MB
