Quickbox® inlet boxes

The well-known AGRO cavity wall box with proven lug fastening technology and improved product features. A practical design and a targeted selection of pipe entries allow a wide range of possible uses. Additional special applications such as installation in thinly planked walls with the aid of the zero clamping lug round off the diverse range. The certifications from Electrosuisse and ESTI document the high quality standards.
  • Compatible with Feller SNAPFIX®

Processing note

Final assembly of certain flush-mounted devices for unplastered surfaces:
Due to the contact edge of the box, a small joint may form between the cover and the wall surface.
If the surface is not plastered, it is advisable to countersink the edge of the box holder into the wall to avoid any joints.

Dimensions / Form

Product Ø:
83 mm
Product length:
83 mm
Product width:
83 mm
Product depth:
65 mm
Installation opening (wall/ceiling) Ø:
83 mm
Drill/cut hole Ø:
83 mm

Connections / Entries

For conduit Ø:
20 mm, 25 mm

Assembly / Installation

Assembly type:
HW (drywall/lightweight construction)
Certificate

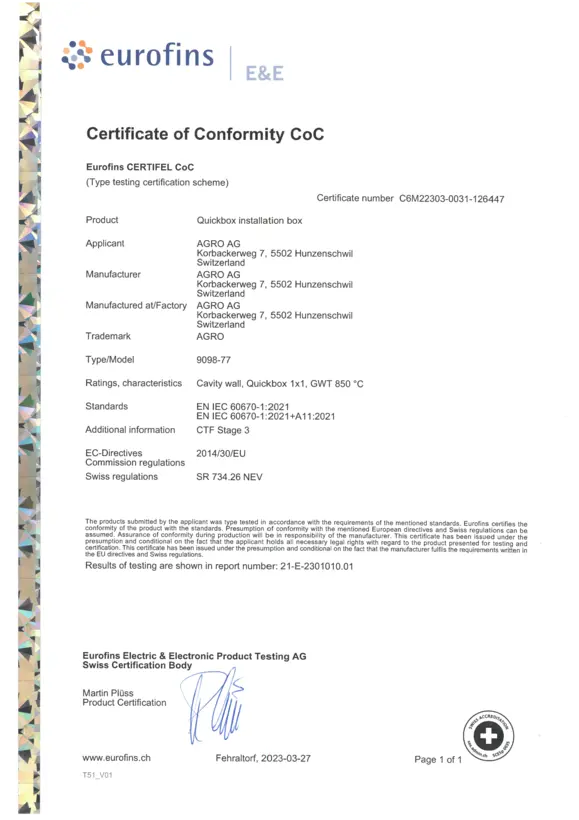

S+ Certificate CoC / Eurofins Electrosuisse 9098-77

3.1 MB | 10/06/2026
Instruction

Drilling Template Quickbox ECON

817.4 KB | 14/12/2022
