KAISER GROUP

Installation

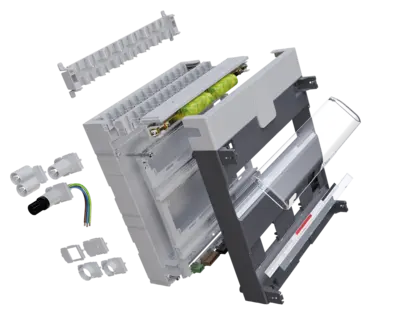

Click-mate NXT Distribution boards
Installation 2.0

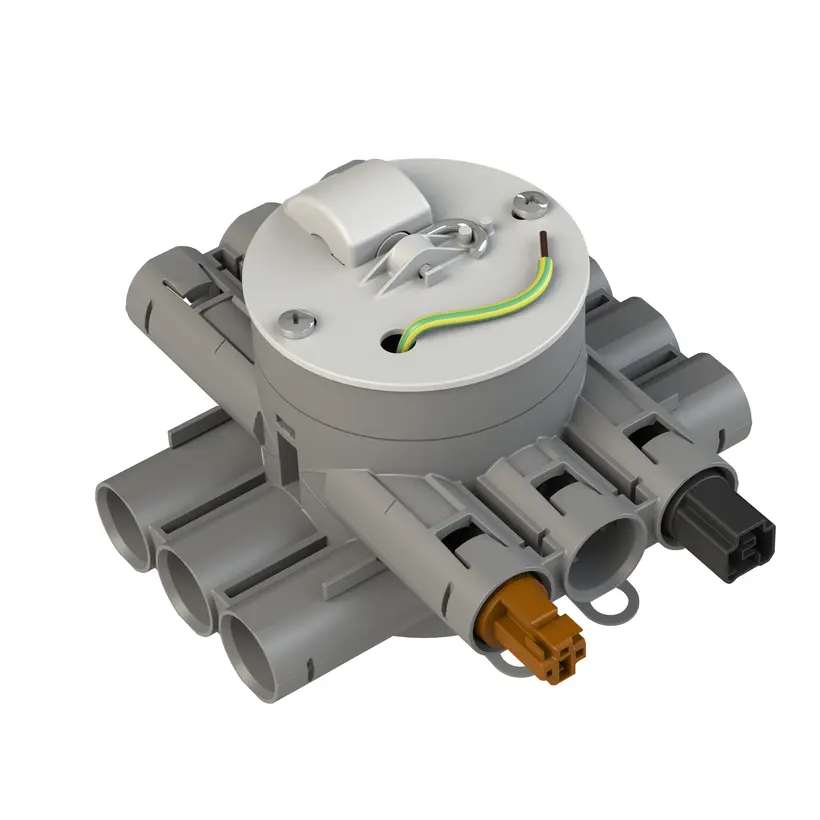

- Applicable in hollow ceiling constructions. - Suitable for rachel ceilings and metal stud ceilings. - Connectors from Wago-Winsta RD - Equipped with 1x power supply (male black), 1x switch (female brown), 1x light point on central box cover.
Installation RD
Flush-mounted boxes
- Suitable for rachel ceilings and metal stud ceilings. - Application: thick(er) ceiling tiles (e.g. 2 x 12.5 mm plasterboard). - 45% more welding space than a traditional square central box. - 12 combi spouts 16 and 19 mm. - Equipped with conical tube inlet with tube snapper. - Screw slots between the pipe entries. - Screw cams for bottom mounting. - Clamps: a 3rd hand for rachels 22 mm. - Suitable for cable entry in combination with KST (art. no. AT1062). - Matching covers: (art. no. AT5010 and art. no. AT5011).
Central junction boxes
Fire protection
- Can be used in wide boarded floors. - Distance from the underside of the conduit entries to the open side of the box: 60 mm. - The penetration of concrete water into conduit entries is prevented by adhesive tape. - Protective cover (Art. No. AT4818) and adhesive protective cover (Art. No. AT4850) available separately. - Suitable covers for mounting: Art. no. AT5010 and AT5011. - For in-factory installation - Slot for system magnet (Art.-No. 1299-69) and system magnet PLUS (Art.-No. 1299-70)
Concrete construction system

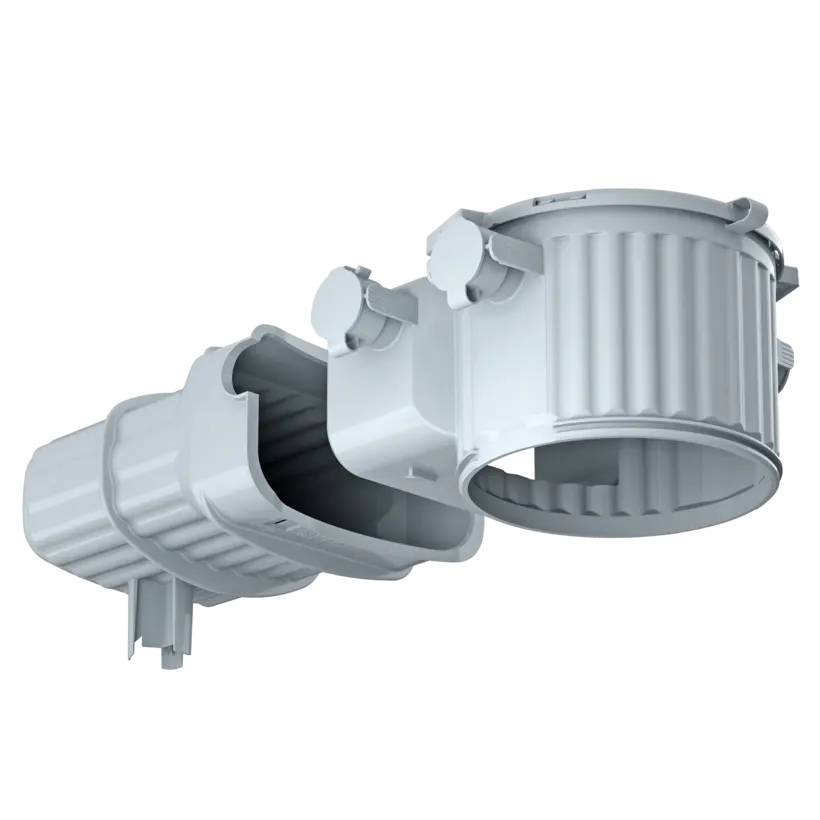

- Toolless combination entry for M20/M25 conduits - Conduit entry limitation to prevent the need to shorten the conduit inside - No reinforcement cuts in tunnel section area
Installation housings
Junction boxes
Cable-mate junction boxes
- Each cable box includes 2 soft slide-in data lead-ins and 1 slide-in blind cover'. - Version with set plastic mounting plate for quick click-assembly on cable trays. - Matching AK2-D lid and RJ45 adapters can be ordered separately. - Suitable for cable trays from Legrand (Van Geel), Stago, Niedax, Vergokan, PUK and OBO. - 2 cable entries and 1 blanking plug are included per item - Matching AK2 front part can be ordered separately - Suitable for cable support systems from well-known manufacturers
Consolidation box
- Dimensions: 102 x 67 x 50 mm (LxWxH) - Adapters of choice can be ordered separately. - Break-out ports in the cover for various sizes of cable conduits.
Universal ICT solutions
- Supplied with mounted cover. - Suitable for bell, signal, telephone, control and coax cable. - Internal dimensions: 16 x 9 mm
Mini and Cable Trunking
- Quick installation due to attachment holes in 'double' bottom. - Alignment correction possible thanks to slot and hole pattern in bottom. - Internal dimensions: 23 x 8 mm
P25/K25 Trunking system (flat tube system)
- Cover included. - Can be used in combination with the corner pieces for the K25 / P25 raceway system. - Includes slots and nail holes. - Internal dimensions: 22.5 x 10.5 mm
Z25/F25 Trunking system
- 2 completely separated compartments. - Suitable for installation with insulated installation wires. - Includes 4 sets clip C40 (short and long).
K40 Skirting Trunking System
- Cover included. - Bottom perforation according to standard.
Wiring ducts
Flexible conduits
- For detecting obstructions in pipe. - Complete set, delivered in steel case. - Works on 9V batteries (not included). - Consists of transmitter, receiver, push-button and probe.
Tools & support materials
- Continuous sealing by means of air-tight layers for penetration of cables - extremely strong adhesion - Temperature resistance -30°C to +80°C, in the feed-through area up to +120°C - UV-resistant, halogen-free
Airtight sealing sleeves

Installation

ATTEMA products and systems for professional electrical installations worldwide. Boxes and enclosures. For masonry, cavity walls and plasterboard. Energy efficiency, concrete applications, fire protection, sound insulation and radiation protection.
