- 10A / 250V with plug-in contacts for solid conductors.
- Consists of base plate with pre-assembled element, cover, rocker operation and mounting hardware.
- Open inlet for flat duct, no separate inlet piece required. Flat duct inlet on other side can be knocked out.
- Integrated stop on base plate for duct and cover.
- Overlaps duct cover by 5 mm. Purely right-angled sawing and sawing to size of the cover is not necessary.
- Knockout in the base plate for rear inlet of duct Ø 16 mm.

- Quick installation due to attachment holes in 'double' bottom.
- Alignment correction possible thanks to slot and hole pattern in bottom.
- Internal dimensions: 23 x 8 mm

P25 Trunking base + cover black

- Mount using BC25 wall clips (art. no. AT5600).
- Stackable.
- Internal dimensions: 23 x 8 mm

K25 Trunking base + cover white

- Suitable for covering central boxes, recessed boxes and Perilex boxes.
- Self-locking by spring-loaded claws.
- Halogen-free.

Cover plate white

P25 Trunking base + cover black

- 2 completely separated compartments.
- Suitable for installation with insulated installation wires.
- Includes 4 sets clip C40 (short and long).

K40 Skirting Trunking base

- 2-pin with rim earthing.
- 16A / 250V with plug-in contacts for solid conductors.
- Consists of base plate with pre-assembled element, cover and mounting hardware.
- Open inlet for flat duct, no separate inlet piece required. Flat duct inlet on other side can be knocked out.
- Integrated stop on base plate for duct and cover.
- Overlaps duct cover by 5 mm. Purely right-angled sawing and sawing to size of the cover is not necessary.
- Knockout in the base plate for rear inlet of duct Ø 16 mm.

ZC25 Double socket black

K40 Skirting Trunking base

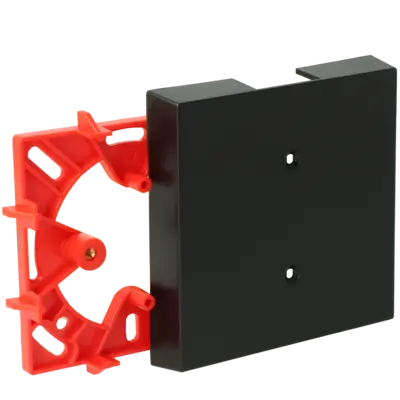

- Base plate can be mounted on any wall or ceiling junction box.
- Parker screws for attachment of cover are mounted inside cover to prevent loss.
- Surface-mount domestic switching devices can be mounted on cover.
- Cover includes 1 open lead-in and 11 break-outs for K25/P25/Z25 raceways.

A25 Expansion Box black

- Duplex with earth connection and child protection.
- 16A / 250V with plug-in contacts for solid conductors.
- Consists of mounting plate with pre-mounted and pre-wired elements, cap and attachment hardware.
- Can be used horizontally or vertically.
- Rotated receptacles so right-angled mains plugs run nicely along the skirting board.
- If necessary, the receptacles can be wired separately.
- Overlap with skirting duct is 5 mm. It is unnecessary to cut the skirting duct cover perfectly square at exactly the right length.

ZC40 Double outlet white

Click on the blue plus signs for more information.

Cable management

Smart cable management with the ATTEMA P25 Trunking System and K40 Skirting Trunking System

Neatly concealing electrical wiring can be a challenge in many homes and buildings. Particularly in renovation projects or rented properties, cutting channels into walls is often not permitted, for example because of tenancy conditions or because disruptive construction work is undesirable. Nevertheless, there is still a need for a safe, neat and future-proof electrical installation.

The ATTEMA P25 Trunking System and K40 Skirting Trunking System offer a practical and visually appealing solution. These surface-mounted systems make it easy to conceal wiring without major structural alterations.

Power cables, data cables and extra-low-voltage wiring are neatly routed and protected, while the installation remains accessible and easy to extend. This makes the systems particularly suitable for renovation projects, home adaptations and situations where flexibility is required. They also keep cables safely and neatly concealed, creating a tidy living environment and providing additional safety for children and pets.

Whether for renovation, installation extensions or situations where chasing into walls is not possible, P25 and K40 provide a professional installation with a clean, modern appearance.

P25 Trunking system
The P25 Trunking System provides space for up to five 2.5 mm² VD installation wires. It is also suitable for extra-low-voltage and ICT cabling.
No cutting, chasing or demolition work required
Clean and modern cable finish
Cables safely concealed, making the system suitable for homes with children and pets
Ideal for renovation projects and rented properties
Easy to extend and adapt
Two fully separated compartments
Suitable for installation with VD wiring
Supplied with four sets of C40 clips, both short and long
Read more

K40 Skirting Trunking System
The K40 Skirting Trunking System offers a versatile solution for 230 V power supplies, extra-low-voltage wiring and data cabling. It can easily be combined with the P25 Trunking System.
Two fully separated compartments
Complete system with an extensive range of accessories
Provides a neat finish for VD wiring and cables
Read more

F25 LSZH Trunking System
The F25 LSZH, or Low Smoke Zero Halogen, Trunking System is specially designed for the fire-safe concealment of data cables.
Supplied with a special cover for applications where regulations require the trunking not to be opened by hand
Equipped with slots and nail holes
Internal dimensions: 22.5 × 10.5 mm
Flame-retardant
Produces little smoke in the event of fire
Halogen-free
This makes the system particularly suitable for buildings with large numbers of occupants, such as theatres, airports and hospitals, where fire safety is essential.
Read more
