B¹ one-gang box and B¹ one-gang junction boxes
Open Cadenas Modal
  • Accessory fitting without drilling or dowelling
  • space for 3 terminal blocks and associated cables
  • Grey front part version for exposed concrete applications
  • 2-piece with moulded rear part
  • Two slots for B¹ Prefix® system wings
  • Rear part of box with slot for support element
  • Suitable for all types of formwork

Concrete construction, B1 wall light connection box, exit opening Ø 45 mm, depth 67 mm, 2-piece with universal attachment surface Ø 85 mm
Wall light connection box for concrete construction installation, on-site mixed concrete, fixing on formwork
Concrete construction box, designed as a universal wall exit for concrete construction, made of plastic, for installations on opposing formwork without additional support elements, fixing to the reinforcement with Prefix® wing set (1211-00), with integrated support element attachment Ø 20 mm
Exit opening Ø 45 mm, universal attachment surface Ø 85 mm, length 95 mm, width 90 mm, depth 67 mm, front part can be swung out
Combination entries with break-out openings for electrical installation conduits (6 x 20/25 mm) and entry markings for cables and electric cables (6 markings up to Ø 16 mm), protection class IP 30 according to DIN EN 60529, flame-retardant according to DIN EN 60695 up to 650° C, halogen-free according to DIN VDE 0604-2-100, for concrete construction installation on-site mixed concrete
Read more Read less

B¹ universal wall exit

Kaiser GmbH & Co.KG
Artikel-No.: 1248-03
EAN: 4013456551565
Product length: 95 mm
Product width: 90 mm
Product depth: 67 mm
Number of entries: 6
For conduit Ø: 20 mm, 25 mm
Cover for box/housing/casing Ø: 45 mm
Packaging / Shipping: 20 / 180
Price (MSRP) / 100 ST:
€385.00
Price group: 130
More product details
Datasheet (PDF)

accessories

- Ermöglicht die Befestigung an der Bewehrung - Vorfixierung durch B¹ Prefix®-Montagetechnik - Verwendbar für folgende Artikel: - B¹ Gerätedose - B¹ Geräte-Verbindungsdose - B¹ Großrohr-Geräte-Verbindungsdose - B¹ Electronic-Dose - B¹ Doppel-Geräte-Verbindungsdose - B¹ Wandleuchten-Anschlussdose - B¹ Universal Wandauslass - B¹ Prefix® Adapter Ø 20, Ø 25 und Ø 32 mm
B¹ Prefix® system wing bracket set
Artikel-No. 1211-00
  • Facilitates fixing to the reinforcement
  • Pre-fixing by means of B¹ Prefix® installation technology
  • Can be used for the following articles:
  • B¹ device socket
  • B¹ device connection socket
  • B¹ large-conduit device connection socket
  • B¹ electronics socket
  • B¹ two-device connection socket
  • B¹ wall light connection socket
  • B¹ universal wall outlet
  • B¹ Prefix® adapter - Ø 20, Ø 25 and Ø 32 mm
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-04
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-06
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-08
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-10
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-12
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-14
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-16
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-18
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-20
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-98
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-99
See more
- für Stützelement Ø 20 mm - Befestigung an der Schalung durch Klebefolie 1219-00
Abutment for adhesive foil
Artikel-No. 1205-02
  • for support element Ø 20 mm
  • Fixing to formwork using 1219-00 adhesive foil
See more
- zur stoßsicheren Befestigung von Dosen und Kästen in liegender Schalung - bei stehender Schalung ist zusätzliches Abstützen mittels Stützelement und Gegenlager vorzunehmen - Schalung entfetten - doppelseitig klebend
Adhesive foil, double-sided adhesive
Artikel-No. 1219-00
  • for anti-shock fixing of boxes and casings in horizontal formwork
  • for vertical formwork, additional bracing must be provided using a support element and abutments
  • Degreasing formwork
  • Double-sided adhesion
See more
- für Stützelement Ø 20 mm - kombinierbar mit sich selbst, mit Gerätedosen, Geräte-Verbindungsdosen, Verbindungskasten, Universal-Einbaugehäusen und Distanzstücken 91 - Befestigung an der Schalung durch Spreizdübel, Nägel oder Schrauben
Abutment
Artikel-No. 1210-02
  • for support element Ø 20 mm
  • can be combined with itself, with one-gang boxes, one-gang junction boxes, junction casing, universal installation housings and distance pieces 91
  • Fixing to the formwork using expanding dowels, nails or screws
See more

tools

Universal opening cutter for plastics
Universal opening cutter for plastics
Artikel-No. 1085-80
  • for manufacture of exact entry size
  • for low-voltage wiring of Ø 4 - 7.5 mm
  • for sheathed cabling up to 5 x 2.5 or 7 x 1.5
  • for cable NYY up to 5 x 2.5
  • for DIN EN conduits (flexible) with outer Ø of up to 20/25 mm
  • with 1/4" chuck size for battery-powered drills
See more
- für längere Leitungsstücke integriertes Messer für Längsschnitt - leichtes Arbeiten durch ergonomische Gestaltung - Schneidemesser gehärtet und geschliffen
AMZ 2 stripping pliers
Artikel-No. 1190-02
  • for longer cables: integrated knife for longitudinal cutting
  • ergonomic design - easy-to-use
  • hardened and polished cutting knife
See more
- für die Betonbau-Installation - zur Befestigung an Stahlschalungen mit Spreizdübel 1217-02 - für alle Dosen, Kästen, Tüllen usw.
Hole punch and expanding dowel fitting tool
Artikel-No. 1284-62
  • for concrete construction installation
  • for fixing to steel formwork with expanding dowel 1217-02
  • for all boxes, casings, bushes, etc.
See more
- für die Betonbau-Installation - zur Befestigung an Stahlschalungen mit Spreizdübel 1217-02 - für alle Dosen, Kästen, Tüllen usw.
Hole punch and expanding dowel fitting tool
Artikel-No. 1284-63
  • for concrete construction installation
  • for fixing to steel formwork with expanding dowel 1217-02
  • for all boxes, casings, bushes, etc.
See more
- für die Betonbau-Installation - zur Befestigung an Holzschalungen mit Stahlnägeln max. Kopf-Ø 4 mm - für alle Dosen, Kästen, Tüllen usw.
Nail inserter
Artikel-No. 1284-69
  • for concrete construction installation
  • for fixing to wooden formwork with steel nails max. head Ø 4 mm
  • for all boxes, casings, bushes, etc.
See more
- für die Betonbau-Installation - zur Befestigung an Holzschalungen mit Stahlnägeln max. Kopf-Ø 4 mm - für alle Dosen, Kästen, Tüllen usw.
Nail inserter
Artikel-No. 1284-68
  • for concrete construction installation
  • for fixing to wooden formwork with steel nails max. head Ø 4 mm
  • for all boxes, casings, bushes, etc.
See more

B¹ one-gang box and B¹ one-gang junction boxes

B¹, the new on-site mixed concrete range of products for electrical installation work. In addition to the tried-and-tested system features such as the flat front part, sturdy fixing domes and the support element slot with a sprung box base, the new B¹ range has innovative conduit entries, sturdy slots for the new B¹ Prefix® system wing range, and also bridges – which can be broken out later if required – for connecting accessories in combinations.
  • Suitable for all types of formwork
  • Slot for B¹ Prefix® system wing set
  • Can be stably combined over the complete box body with a standardised combination distance of 71 mm
  • Innovative conduit entries for fast processing on the construction site
  • Signal bristles for easy location with installations on the opposing formwork side
  • Larger mounting and installation space
  • Installation of pre-wired installation accessories with multiple combinations, because the bridge can be broken out later

Fixing and alignment of the front part

Exact alignment by centre marking.
Exact alignment by centre marking.
Fixing by means of steel nails.
Fixing by means of steel nails.
Fixing by means of KAISER expanding dowels (Art. No. 1217-02).
Fixing by means of KAISER expanding dowels (Art. No. 1217-02).
Fixing by means of threaded dowels.
Fixing by means of threaded dowels.

Combination in accordance with DIN

For multiple combinations, many of the B¹ wall applications can be combined in two directions at a standard combination distance of 71 mm (DIN 49075).
For multiple combinations, many of the B¹ wall applications can be combined in two directions at a standard combination distance of 71 mm (DIN 49075).
By using the 91 distance piece (Art. No. 1259-04), the combination distances for communication connections can be extended to 91 mm in 20 mm increments.
By using the 91 distance piece (Art. No. 1259-04), the combination distances for communication connections can be extended to 91 mm in 20 mm increments.
The B¹ one-gang box, B¹ one-gang junction box, B¹ large conduit one-gang junction box and the B¹ electronics box...
The B¹ one-gang box, B¹ one-gang junction box, B¹ large conduit one-gang junction box and the B¹ electronics box...
...can be connected stably and securely to both the front part and the box body.
...can be connected stably and securely to both the front part and the box body.

The new conduit insertion technology

The required conduit connection opening can be easily and exactly broken out with a quick tilting movement using a standard pair of combination pliers,...
The required conduit connection opening can be easily and exactly broken out with a quick tilting movement using a standard pair of combination pliers,...
...for this purpose, the combination pliers are applied to the marked break-off edge for the required conduit size and broken out via a tilting movement.
...for this purpose, the combination pliers are applied to the marked break-off edge for the required conduit size and broken out via a tilting movement.

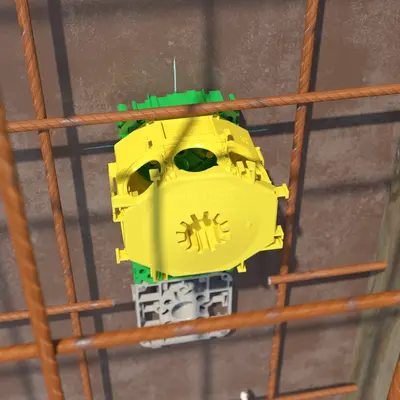

Once all the required conduit entry openings have been created, the rear cover can be closed.
Once all the required conduit entry openings have been created, the rear cover can be closed.
The conduit can now be inserted easily.
The conduit can now be inserted easily.

Note

According to DIN VDE 0100, Part 559, feed lines for wall lights must terminate in connection boxes. Wall light connection boxes must have at least one option for attaching wall lights. According to DIN VDE 60670, wall and ceiling luminaire connection boxes must provide enough room for 3 individual terminals or be fitted with a 3-pole connector.

Installation with the universal screw-on surface

B¹ Universal wall exit
B¹ Universal wall exit

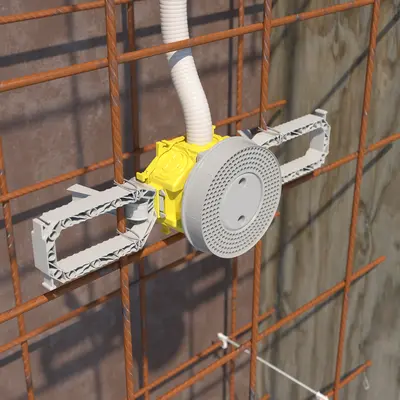

B¹ Universal wall exit with Prefix® installation technology.
B¹ Universal wall exit with Prefix® installation technology.
In addition, thanks to the universal screw-on surfaces, the complete installation can be done...
In addition, thanks to the universal screw-on surfaces, the complete installation can be done...
For wall lights, for example, only screws and a cordless screwdriver are needed.
For wall lights, for example, only screws and a cordless screwdriver are needed.

Fixing of the front part

Fixing by means of weld-on screws.
Fixing by means of weld-on screws.

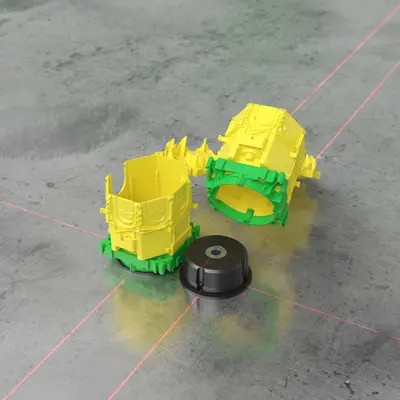

Fixing by means of KAISER magnets (Art. No. 1261-81).
Fixing by means of KAISER magnets (Art. No. 1261-81).
Fixing by means of adhesive foil (Art. No. 1219-00).
Fixing by means of adhesive foil (Art. No. 1219-00).
Fixing by means of hot glue.
Fixing by means of hot glue.

Installation to the working formwork

Secure the front part to the working formwork.
Secure the front part to the working formwork.
Open the conduit entries and...
Open the conduit entries and...
...close the rear cover before inserting the conduits.
...close the rear cover before inserting the conduits.
The conduits can now simply be inserted into the prepared openings.
The conduits can now simply be inserted into the prepared openings.

Signal bristle for finding boxes that are to deep on the opposing formwork side

Particularly with installations that are prepared for the opposing formwork side, whether by Prefix® or support technology, and are therefore not firmly connected to the formwork,...
Particularly with installations that are prepared for the opposing formwork side, whether by Prefix® or support technology, and are therefore not firmly connected to the formwork,...
...construction and manufacturing tolerances can result in one-gang boxes sitting recessed in the on-site mixed concrete wall.
...construction and manufacturing tolerances can result in one-gang boxes sitting recessed in the on-site mixed concrete wall.
The signal bristle on the front parts of the B1 programme...
The signal bristle on the front parts of the B1 programme...
...attaches itself to the formwork as it moves away and keeps the position of the one-gang box visible in the wall surface.
...attaches itself to the formwork as it moves away and keeps the position of the one-gang box visible in the wall surface.

Electrical installation

B1 one-gang boxes attached to the working formwork are already opened when the formwork is removed.
B1 one-gang boxes attached to the working formwork are already opened when the formwork is removed.
The signal bristles on the front parts of the B1 programme keep the position of the B1 one-gang boxes visible in the wall surface.
The signal bristles on the front parts of the B1 programme keep the position of the B1 one-gang boxes visible in the wall surface.
The simple opening with one blow of a hammer in the centre exposes the box opening and thus the exact installation opening according to DIN 49073.
The simple opening with one blow of a hammer in the centre exposes the box opening and thus the exact installation opening according to DIN 49073.
Four closed screw domes as well as two expanding claw fields ensure the exactly aligned fixing of the installation accessories.
Four closed screw domes as well as two expanding claw fields ensure the exactly aligned fixing of the installation accessories.
If the conduits were only inserted two grooves wide into the B1 one-gang box during insertion work, the conduit shortening work step is omitted.
If the conduits were only inserted two grooves wide into the B1 one-gang box during insertion work, the conduit shortening work step is omitted.

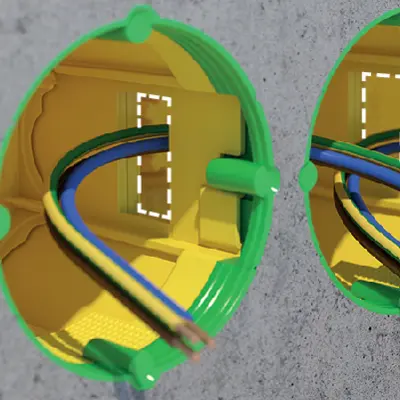

The connection of sockets, for example can be realized in three different ways. It is possible to open a junction box in the middle area of the one-gang junction box afterwards,...
The connection of sockets, for example can be realized in three different ways. It is possible to open a junction box in the middle area of the one-gang junction box afterwards,...
...or you can use the opposing conduit entries in the rear area of the one-gang junction box as support connectors.
...or you can use the opposing conduit entries in the rear area of the one-gang junction box as support connectors.
In addition, it is also possible to break out the separator wall between the combined one-gang junction boxes simply with a pair of combination pliers by means of a tilting movement...
In addition, it is also possible to break out the separator wall between the combined one-gang junction boxes simply with a pair of combination pliers by means of a tilting movement...
...making it possible to insert the connection lines of pre-wired accessories such as sockets quickly and easily without having to guide them through a support connector.
...making it possible to insert the connection lines of pre-wired accessories such as sockets quickly and easily without having to guide them through a support connector.
All B1 one-gang boxes offer generous installation space for the convenient accommodation of leads, connection terminals and installation accessories.
All B1 one-gang boxes offer generous installation space for the convenient accommodation of leads, connection terminals and installation accessories.
Installation example of a socket outlet combination in combination with a B¹ large conduit one-gang junction box...
Installation example of a socket outlet combination in combination with a B¹ large conduit one-gang junction box...
...for easy insertion of pre-assembled cables.
...for easy insertion of pre-assembled cables.

Installation with cables

The integrated centre marks in the area of the conduit entries ensure a secure positioning of the entry without slipping.
The integrated centre marks in the area of the conduit entries ensure a secure positioning of the entry without slipping.

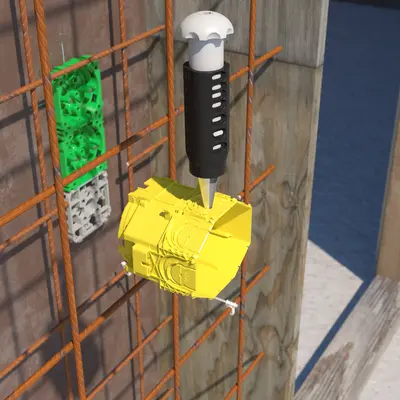

With the universal opening cutter (Art. No. 1085-80), the required openings for cables or lines are made to fit exactly.
With the universal opening cutter (Art. No. 1085-80), the required openings for cables or lines are made to fit exactly.
Then, the required cables or lines can be inserted and appropriate cable reserves can be accommodated in the one-gang box.
Then, the required cables or lines can be inserted and appropriate cable reserves can be accommodated in the one-gang box.
Once all cables / lines have been inserted, the back of the box is simply snapped on by hand and the installation is complete.
Once all cables / lines have been inserted, the back of the box is simply snapped on by hand and the installation is complete.

Dimensions / Form

Product length:
95 mm
Product width:
90 mm
Product depth:
67 mm
Cover for box/housing/casing Ø:
45 mm

Connections / Entries

Number of entries:
6
For conduit Ø:
20 mm, 25 mm

Assembly / Installation

Assembly type:
BB (solid construction)

Safety / Properties

Special application:
on-site mixed concrete
Conformity declaration

Declaration of conformity

Accessory box.
58.4 KB | 22/09/2021
Download
Certificate

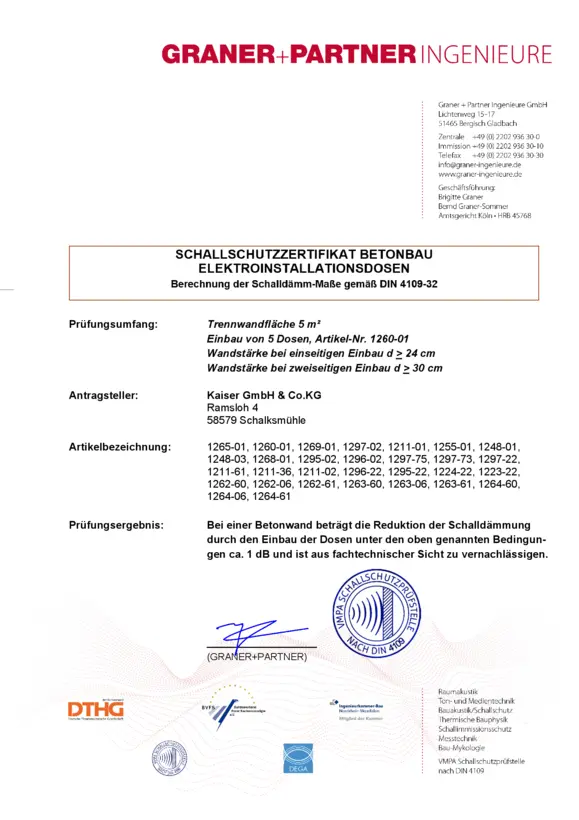

Concrete construction boxes - Sound insulation certificate

536.1 KB | 23/01/2023
Download
Instruction

Concrete construction B¹

Assembly instructions

7.8 MB | 24/07/2023
Download
Universal screw-on surface.
Brochure

Universal screw-on surface.

Electrical installation without drilling and dowelling.

804.2 KB
Electrical installation in on-site mixed concrete and as part of the 3D concrete printing process.
Brochure

Electrical installation in on-site mixed concrete and as part of the 3D concrete printing process.

Boxes, housings and systems.

78.4 MB
Concrete construction - B1 comparison list
Flyer

Concrete construction - B1 comparison list

Simple assignment of the new "B1 program" to the previous concrete construction program.

573 KB
The heart of every installation. - The KAISER box.
Flyer

The heart of every installation. - The KAISER box.

Designed by craftsmen, made by KAISER!

8 MB
Download
- Ermöglicht die Befestigung an der Bewehrung - Vorfixierung durch B¹ Prefix®-Montagetechnik - Verwendbar für folgende Artikel: - B¹ Gerätedose - B¹ Geräte-Verbindungsdose - B¹ Großrohr-Geräte-Verbindungsdose - B¹ Electronic-Dose - B¹ Doppel-Geräte-Verbindungsdose - B¹ Wandleuchten-Anschlussdose - B¹ Universal Wandauslass - B¹ Prefix® Adapter Ø 20, Ø 25 und Ø 32 mm
B¹ Prefix® system wing bracket set
Artikel-No. 1211-00
  • Facilitates fixing to the reinforcement
  • Pre-fixing by means of B¹ Prefix® installation technology
  • Can be used for the following articles:
  • B¹ device socket
  • B¹ device connection socket
  • B¹ large-conduit device connection socket
  • B¹ electronics socket
  • B¹ two-device connection socket
  • B¹ wall light connection socket
  • B¹ universal wall outlet
  • B¹ Prefix® adapter - Ø 20, Ø 25 and Ø 32 mm
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-04
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-06
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-08
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-10
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-12
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-14
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-16
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-18
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-20
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-98
See more
Support element Ø 20 mm
Support element Ø 20 mm
Artikel-No. 1212-99
See more
- für Stützelement Ø 20 mm - Befestigung an der Schalung durch Klebefolie 1219-00
Abutment for adhesive foil
Artikel-No. 1205-02
  • for support element Ø 20 mm
  • Fixing to formwork using 1219-00 adhesive foil
See more
- zur stoßsicheren Befestigung von Dosen und Kästen in liegender Schalung - bei stehender Schalung ist zusätzliches Abstützen mittels Stützelement und Gegenlager vorzunehmen - Schalung entfetten - doppelseitig klebend
Adhesive foil, double-sided adhesive
Artikel-No. 1219-00
  • for anti-shock fixing of boxes and casings in horizontal formwork
  • for vertical formwork, additional bracing must be provided using a support element and abutments
  • Degreasing formwork
  • Double-sided adhesion
See more
- für Stützelement Ø 20 mm - kombinierbar mit sich selbst, mit Gerätedosen, Geräte-Verbindungsdosen, Verbindungskasten, Universal-Einbaugehäusen und Distanzstücken 91 - Befestigung an der Schalung durch Spreizdübel, Nägel oder Schrauben
Abutment
Artikel-No. 1210-02
  • for support element Ø 20 mm
  • can be combined with itself, with one-gang boxes, one-gang junction boxes, junction casing, universal installation housings and distance pieces 91
  • Fixing to the formwork using expanding dowels, nails or screws
See more
Universal opening cutter for plastics
Universal opening cutter for plastics
Artikel-No. 1085-80
  • for manufacture of exact entry size
  • for low-voltage wiring of Ø 4 - 7.5 mm
  • for sheathed cabling up to 5 x 2.5 or 7 x 1.5
  • for cable NYY up to 5 x 2.5
  • for DIN EN conduits (flexible) with outer Ø of up to 20/25 mm
  • with 1/4" chuck size for battery-powered drills
See more
- für längere Leitungsstücke integriertes Messer für Längsschnitt - leichtes Arbeiten durch ergonomische Gestaltung - Schneidemesser gehärtet und geschliffen
AMZ 2 stripping pliers
Artikel-No. 1190-02
  • for longer cables: integrated knife for longitudinal cutting
  • ergonomic design - easy-to-use
  • hardened and polished cutting knife
See more
- für die Betonbau-Installation - zur Befestigung an Stahlschalungen mit Spreizdübel 1217-02 - für alle Dosen, Kästen, Tüllen usw.
Hole punch and expanding dowel fitting tool
Artikel-No. 1284-62
  • for concrete construction installation
  • for fixing to steel formwork with expanding dowel 1217-02
  • for all boxes, casings, bushes, etc.
See more
- für die Betonbau-Installation - zur Befestigung an Stahlschalungen mit Spreizdübel 1217-02 - für alle Dosen, Kästen, Tüllen usw.
Hole punch and expanding dowel fitting tool
Artikel-No. 1284-63
  • for concrete construction installation
  • for fixing to steel formwork with expanding dowel 1217-02
  • for all boxes, casings, bushes, etc.
See more
- für die Betonbau-Installation - zur Befestigung an Holzschalungen mit Stahlnägeln max. Kopf-Ø 4 mm - für alle Dosen, Kästen, Tüllen usw.
Nail inserter
Artikel-No. 1284-69
  • for concrete construction installation
  • for fixing to wooden formwork with steel nails max. head Ø 4 mm
  • for all boxes, casings, bushes, etc.
See more
- für die Betonbau-Installation - zur Befestigung an Holzschalungen mit Stahlnägeln max. Kopf-Ø 4 mm - für alle Dosen, Kästen, Tüllen usw.
Nail inserter
Artikel-No. 1284-68
  • for concrete construction installation
  • for fixing to wooden formwork with steel nails max. head Ø 4 mm
  • for all boxes, casings, bushes, etc.
See more
Ausschreiben.de

Ausschreiben.de

Go to tender article
PARTcommunity

PARTcommunity

Planning Data (CAD/3D/2D)
