Damp-proof one-gang junction box

Waterproof installation – certified to DIN 18534

KAISER’s new one-gang junction box provides optimum sealing for electrical installations in areas exposed to splash water, service water and cleaning water. The innovative damp-proof one-gang junction box, which has been tested and certified in accordance with DIN 18534, can be effortlessly integrated into the waterproofing layer (e.g. waterproofing slurry or waterproofing membranes) thanks to its 5 cm peripheral adhesive collar, thereby maintaining the wall’s protective integrity. As the wire entries are cut to exact fit using the KAISER universal opening cutter, uncontrolled moisture exchange is permanently prevented.

Damp-proof one-gang junction box

For professional installation in sealed indoor spaces.
- A 5 cm wide peripheral adhesive collar, designed to provide a slot for mineral-based sealing compounds, e.g. sealing slurry
- For professional installation in sealed interior spaces, such as commercial kitchens, bathroom modules or wet rooms in hospitals
- Tested and certified watertightness in accordance with DIN 18534
- For installation openings with a diameter of 68 mm
- Six airtight and watertight wire entries
- Device screws with Phillips head
- Suitable for use with KAISER plaster levelling rings (Art. no. 9155-61 or -62) for surface-mounted wall coverings
View product

All product information at a glance.

Flyer

Damp room one-gang junction box

Certified to DIN 18534.

326.7 KB

Languages	de-DE	en-DE	fr-DE
Download (326.7 KB)
Add to cart

Flyer

The heart of every installation. - The KAISER box.

8 MB

Download

Examples of applications

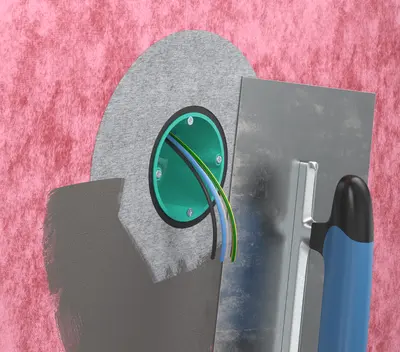

The fleece-like structure of the peripheral adhesive collar allows for easy sealing with sealing slurry...
...or conventional waterproofing membranes, and thus integrates seamlessly into the existing waterproofing system.
A damp-proof one-gang junction box, mounted in a cement fibre board, integrated into the waterproofing layer with a tiled splashback fitted.

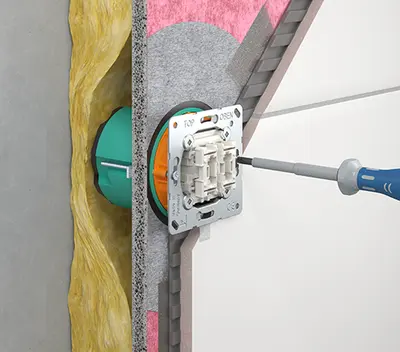

To ensure compliance with the IP protection class, the plaster levelling ring (Art. no. 9155-61 or -62) can be fitted where wall coverings are > 10 mm thick.

Product overview

- Umlaufender 5 cm breiter Klebekragen zur Aufnahme von mineralischen Abdichtungsstoffen, z. B. Dichtschlämme
- Komfortables Eindichten in die Abdichtungsebene dank vliesartiger Oberflächenstruktur der Abdichtungsmanschette
- Geprüft und zertifiziert für Anwendungen nach DIN 18534
- Luft- und wasserdichte Ausführung mit Dichtungsmembranen für sechs Leitungen bis max. Ø 11,5 mm mit integrierter Leitungsrückhaltung
- Verwendbar mit den KAISER Putzausgleich-Ringen (Art.-Nr. 9155-61 bzw. -62) bei aufbauenden Wandbelägen

Damp room one-gang junction box

Artikel-No. 9264-42

Peripheral 5 cm wide adhesive collar to hold mineral sealing materials, e. g. sealing slurries
Convenient sealing into the sealing layer thanks to the fleece-like surface structure of the sealing sleeve
Tested and certified for applications according to DIN 18534
Air-tight and watertight design with sealing membranes for six cables up to max. Ø 11.5 mm with integrated cable retention
Can be used with the KAISER plaster compensating rings (Art. No. 9155-61 or -62) with built-up wall coverings

Universal opening cutter for plastics

Artikel-No. 1085-80

for manufacture of exact entry size
for low-voltage wiring of Ø 4 - 7.5 mm
for sheathed cabling up to 5 x 2.5 or 7 x 1.5
for cable NYY up to 5 x 2.5
for DIN EN conduits (flexible) with outer Ø of up to 20/25 mm
with 1/4" chuck size for battery-powered drills

- zum Ausgleich zu tief sitzender Dosen
- Putzausgleich-Ringe mit gleichem Durchmesser höhenkombinierbar
- mit 2 Schrauben zur Gerätebefestigung und 2 Ringbefestigungsschrauben

Plaster compensation ring for boxes Ø 68 mm, Height 10 mm

Artikel-No. 9155-61

to compensate for deep-seated boxes
plaster compensation rings with same diameter can be stacked
with 2 screws for attaching equipment and 2 ring attachment screws

Plaster compensation ring for boxes Ø 68 mm, Height 20 mm

Artikel-No. 9155-62

to compensate for deep-seated boxes
plaster compensation rings with same diameter can be stacked
with 2 screws for attaching equipment and 2 ring attachment screws
