B² Geräte-Verbindungsdosen
NEW
Open Cadenas Modal
  • Slot for system magnet (Art.-No. 1299-69) and system magnet PLUS (Art.-No. 1299-70)
  • Standardised combination distance 71 mm
Read more Read less

B2 Geräte-Verbindungsdosen 88,5 mm für System-Haftmagnet

Kaiser GmbH & Co.KG
Artikel-No.: 1264-03
EAN: 4013456592599
VDE
OEVE
Product depth: 88.5 mm
Cover for box/housing/casing Ø: 60 mm
Shipping: 100
Price (MSRP) / 100 ST:
€335.00
Price group: 140
More product details
Datasheet (PDF)

similar

NEW
- Aufnahme für System-Haftmagnet (Art.-Nr. 1299-69) und System-Haftmagnet PLUS (Art.-Nr. 1299-70) - 1-teilig, mit rückseitig geschlossenem Deckel - für den obenliegenden Einbau geeignet - Frontteil muss abgeklebt werden - Norm-Kombinationsabstand 71 mm
B2 Geräte-Verbindungsdosen 48,5 mm für System-Haftmagnet
Artikel-No. 1262-03
  • Slot for system magnet (Art.-No. 1299-69) and system magnet PLUS (Art.-No. 1299-70)
  • Standardised combination distance 71 mm
See more
NEW
- Aufnahme für System-Haftmagnet (Art.-Nr. 1299-69) und System-Haftmagnet PLUS (Art.-Nr. 1299-70) - 1-teilig, mit rückseitig geschlossenem Deckel - für den obenliegenden Einbau geeignet - Frontteil muss abgeklebt werden - Norm-Kombinationsabstand 71 mm
B2 Geräte-Verbindungsdosen 68,5 mm für System-Haftmagnet
Artikel-No. 1263-03
  • Slot for system magnet (Art.-No. 1299-69) and system magnet PLUS (Art.-No. 1299-70)
  • Standardised combination distance 71 mm
See more

B² Geräte-Verbindungsdosen

In der modernen Werksfertigung zählt jede Sekunde – und jede Verbindung muss sitzen. Die neuen B² Geräte-Verbindungsdosen bieten hier eine durchdachte Lösung: großes Installationsvolumen, hohe Montagefreundlichkeit und flexible Einsatzmöglichkeiten – sowohl mit Aufnahme für den System-Haftmagneten und mit als auch ohne Putzhaut. Während die Variante mit Putzhaut einen sauberen und dichten Abschluss bei Sichtbetonoberflächen ermöglicht, ist die Ausführung ohne Putzhaut ideal für Anwendungen, bei denen die Dose nach dem Betonieren direkt zugänglich bleibt. Dank der optionalen Aufnahme für den System-Haftmagneten (Art.-Nr. 1299-69) oder System-Haftmagneten PLUS (Art.-Nr. 1299-70) lassen sich die Dosen schnell und präzise auf bereits gesetzte Magnete aufsetzen. Seitliche Verbindungsmöglichkeiten erlauben die einfache Kombination mehrerer Dosen im Normabstand von 71 mm, und passende Rohrkupplungen sorgen einen definierten, sicheren Rohranschluss und dämpfen Vibrationen beim Verdichten des Betons
  • For in-factory installation
  • Stable combinability at standardised distance of 71 mm
  • For magnetic and adhesive attachment
  • Convenient and secure pipe connection technology
  • Proven B² push-button technology for fixing extension elements on the rear
  • For in-factory installation
  • Pre-assembled sub-assemblies – for maximum efficiency in assembly processes

Fixing variant

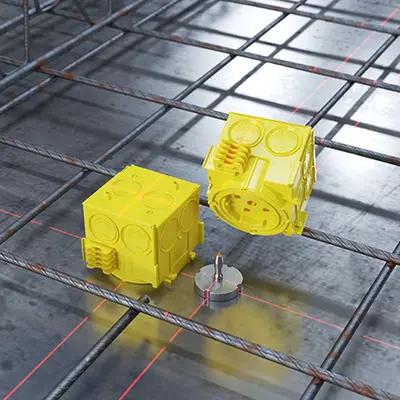

B² one-gang junction boxes with holder for KAISER system magnets (Art. No. 1299-69 / 1299-70).
B² one-gang junction boxes with holder for KAISER system magnets (Art. No. 1299-69 / 1299-70).

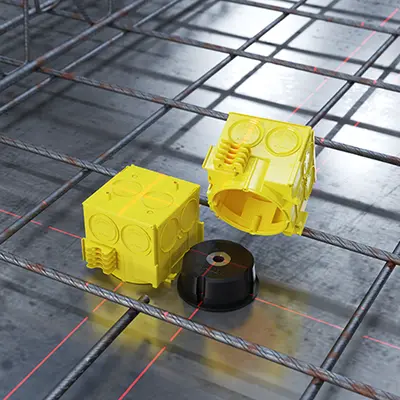

B² one-gang junction boxes without plaster skin with holder for the magnet (Art. No. 1261-81).
B² one-gang junction boxes without plaster skin with holder for the magnet (Art. No. 1261-81).

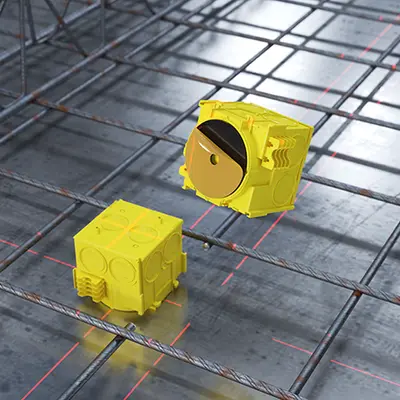

B² one-gang junction boxes with plaster skin to hold the adhesive foil (Art. No. 1219-00)...
B² one-gang junction boxes with plaster skin to hold the adhesive foil (Art. No. 1219-00)...

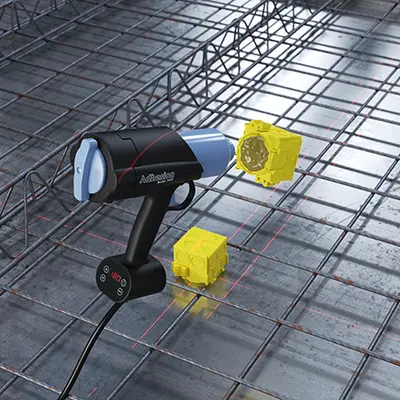

...or by means of hot glue.
...or by means of hot glue.

Product advantages

The conduit connectors buffer the vibrations that occur between the conduit and the box during the compression process…
The conduit connectors buffer the vibrations that occur between the conduit and the box during the compression process…
...and at the same time securely seal the connection in any position.
...and at the same time securely seal the connection in any position.
Combination of two B² one-gang junction boxes...
Combination of two B² one-gang junction boxes...

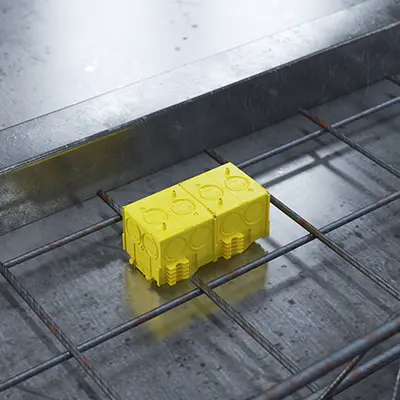

...fixed to the steel formwork using a system magnet.
...fixed to the steel formwork using a system magnet.

Conduit connectors Ø 20/25 mm

With built-in conduit lock designed especially for corrugated conduits with a diameter of 20/25 mm.
With built-in conduit lock designed especially for corrugated conduits with a diameter of 20/25 mm.
Snap the conduit connector in to the one-gang junction box.
Snap the conduit connector in to the one-gang junction box.
Press the conduit connector downwards and completely punch out the feed-through.
Press the conduit connector downwards and completely punch out the feed-through.
Insert the conduit into the conduit connector.
Insert the conduit into the conduit connector.

Conduit connectors Ø 32/40 mm

With built-in conduit lock designed especially for corrugated conduits with a diameter of 32/40 mm.
With built-in conduit lock designed especially for corrugated conduits with a diameter of 32/40 mm.
Insert the tip of the conduit connector in the marked position.
Insert the tip of the conduit connector in the marked position.
Turn the conduit connector with pressure against the one-gang junction box until the feed-through is cut out.
Turn the conduit connector with pressure against the one-gang junction box until the feed-through is cut out.
Snap-in the conduit connector, insert the conduit into the conduit connector.
Snap-in the conduit connector, insert the conduit into the conduit connector.

Conduit connector 60° / diameter 25 mm

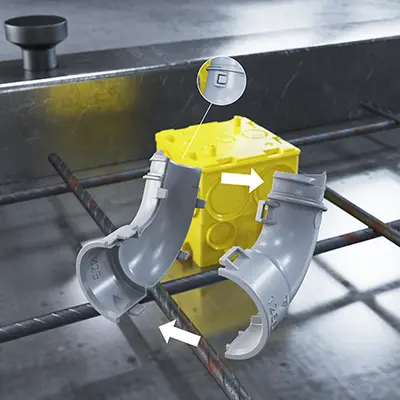

Snap the two halves of the 60° conduit connector together.
Snap the two halves of the 60° conduit connector together.

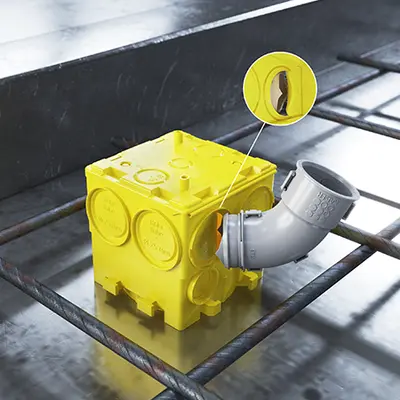

Pierce the tip of the 60° conduit connector at the desired conduit entry and turn until the feed-through is cut out.
Pierce the tip of the 60° conduit connector at the desired conduit entry and turn until the feed-through is cut out.

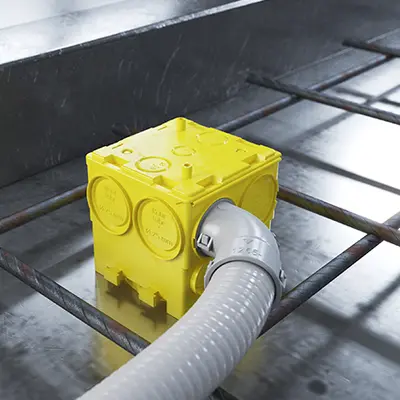

Insert the conduit in engaged conduit connector 60°.
Insert the conduit in engaged conduit connector 60°.

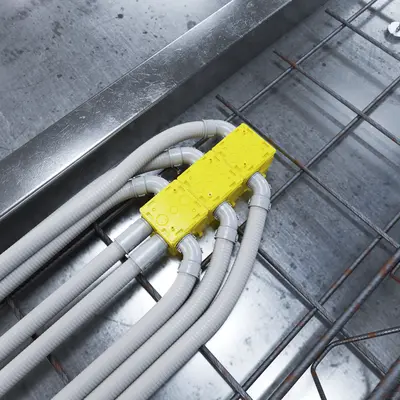

3-unit combination with inserted conduits in the wall area.
3-unit combination with inserted conduits in the wall area.

Conduit transition coupling Ø 32 mm – Application examples

With built-in conduit lock designed especially for corrugated conduits with a diameter of 32 mm.
With built-in conduit lock designed especially for corrugated conduits with a diameter of 32 mm.

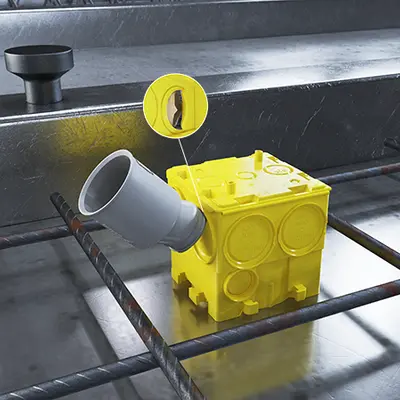

Push the nose of the conduit transition coupling at the marking of the box and turn it with pressure against the B² one-gang junction box until the feed-through is cut out.
Push the nose of the conduit transition coupling at the marking of the box and turn it with pressure against the B² one-gang junction box until the feed-through is cut out.
The conduit transition coupling directs the inner diameter of the conduit unrestricted into the B² one-gang junction boxes Art. No. 1262-XX and 1263-XX...
The conduit transition coupling directs the inner diameter of the conduit unrestricted into the B² one-gang junction boxes Art. No. 1262-XX and 1263-XX...

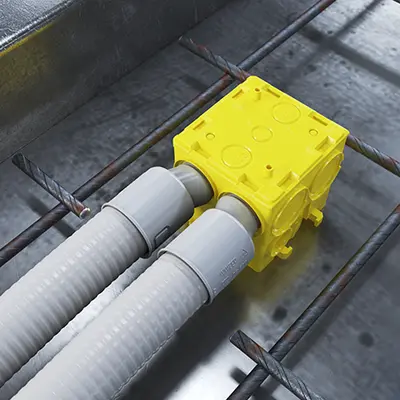

...and thus enables the secure conduit connection of two Ø 32 mm conduits from one direction.
...and thus enables the secure conduit connection of two Ø 32 mm conduits from one direction.

Dimensions / Form

Product depth:
88.5 mm
Cover for box/housing/casing Ø:
60 mm

Assembly / Installation

Assembly type:
BB (solid construction)

Safety / Properties

Special application:
precast concrete

Approvals / Certifications

VDE:
Yes
