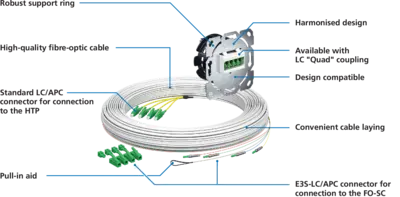

• Scope of delivery: FO subscriber connection, LC-APC coupling and pre-assembled E3S Connect® fibre optic cable

Flush-mounting with E3S Connect® - fibre optic cable for connection to the
house transfer point (HÜP / Gf-AP)

Innovative fibre optic subscriber connection with a maximum installation depth of 32 mm for exact flush-mounting in all standard one-gang junction boxes. The robust metal support ring with alignment markings allows for convenient installation with screw fastenings.
Perfect fibre storage management thanks to a rotatable and removable storage drum on the rear. Includes holder for up to 4 crimp splice connections.
Equipped with 1x LC/APC quad coupling including shutter and dust cover.
Design compatibility with all common switch manufacturers with standardised TAE covers.
The subscriber connection is delivered with a pre-assembled, high-quality (G.657.A2)
E3S Connect® fibre optic cable in a handy roll-off box, which also meets fire protection class B2ca, s1a, d0, a1 (BauPVo).
The fibre optic cable is also pre-assembled with special E3S Connect® – LC/APC connectors per fibre, which allow it to be pulled, blown or pushed into micro-tubes with a minimum diameter of 7 mm.


Subscriber connection features:

Network level: Building network NE4
Installation type: Flush-mounting
Protection class: IP20
Impact resistance: IK07
Number of fibres: 4
Number of splice cassettes: 1
Halogen-free: Yes
Loop length (splice cassette): 150 mm
Bending radius (splice cassette): R = 25 mm
Splice protection holder: CSS crimp / mini heat-shrink tubing
Number of cable entries: 1x
Cable routing: Rear (drum)
Storage temperature range: -10 °C / +60 °C
Installation temperature range: -10 °C / +60 °C
Temperature range in use: -20 °C / +60 °C

Coupling properties:

LC/APC quad coupling with flange, SC simplex footprint
Number of couplings: 1
Sleeve material: Ceramic, slotted
Housing material: Plastic, halogen-free, flame-retardant
Laser and dust protection: Integrated protective flap, blind plug
Insertion loss: ≤ 0.20 dB
Mating cycles: 1,000



Fibre optic cable properties

Fibre class: Single mode OS2 (G.657.A2)
Fibre type: Fibre-BrightCore® single mode optical fibre
Fibre colour coding: 2 fibres: 1=red, 2=green
Stranding element: Aramid yarn, 2x central strength members
Material: LSZH, IEC 60332-1/-2 BauPVo B2ca, s1a, d0, a1 in accordance with EN50575:2014 + A1:2016
Sheath thickness: 2.00 – 2.40 mm
Cable Ø: 2.00 – 2.40 mm
Cable labelling: KAISER FTTH E3S Connect System Cable 2E9/125 G657A2 CPR B2ca DOP 12013034
Minimum bending radius: 40 mm (installation) // 10 mm (permanent)
Tensile force: 250 N (installation) // 100 N (permanent)
Compressive strength: 1000 N / 10 cm
Storage temperature range: -40°C / +85°C
Temperature range for installation: -20°C / +60°C
Temperature range for use: -40°C / +80°C
Cable length: 10 m

Connector properties

Connection on Gf-TA: E3S Connect® – LC/APC
Whip length on Gf-TA: approx. 50 cm Stepped connector
Connection on HÜP/Gf-AP: Standard LC/APC
Whip length on HÜP/Gf-AP: approx. 7 cm Connector of equal length, not stepped
Material: Plastic, halogen-free, flame-retardant
Insertion loss: ≥ 0.12 dB Ø - ≤ 0.25 dB max. (Grade B)
Return loss: ≥ 70 dB (Grade B)
Mating cycles: 1,000
Ferrule Ø: 1.25 mm, ceramic, axially spring-loaded
Strain relief: ≥ 100 N
Laser and dust protection: Blind plug
Standard (design specification): IEC 61754-20
Storage temperature range: -40°C / +85°C
Installation temperature range: -20°C / +60°C
Operating temperature range: -40°C / +80°C
