O-range® Acoustic

Unbekannt
Artikel-No.: 5329
EAN: 5415160009285
Halogen-free
CEBEC
Product Ø: 68 mm
Product depth: 61 mm
Installation opening (wall/ceiling) Ø: 68 mm
Number of entries: 6
For conduit Ø: 20 mm, 25 mm
Min. panel thickness: 7 mm
Panel thickness max.: 40 mm
Drill/cut hole Ø: 68 mm
Sound insulation walls up to: 69
Halogen-free: Yes
Packaging / Shipping: 10 / 100
Price (MSRP) / 1 ST:
€18.50
Price group: 192
More product details
Datasheet (PDF)

O-range® Acoustic

Thanks to their solid box body in combination with the sound-absorbing surface on the base of the box, O-range® Acoustic one-gang and one-gang junction boxes guarantee the wall's sound insulation. This function is completely maintained even with directly opposing installation. The easy opening process and the 68 mm installation opening ensure fast mounting and also easy retrofitting in existing electrical installations.
  • Maintains the wall's sound insulation protection
  • Retrofitting is possible
  • For Ø 68 mm installation openings
  • For a directly opposing installation
  • Easy entry for cables up to Ø 11.5 mm and conduits up to Ø 25 mm

Examples of use

For sound insulation walls with a sound insulation value of up to 69 dB.
For sound insulation walls with a sound insulation value of up to 69 dB.
Also for directly opposing installation up to a 5-way combination.
Also for directly opposing installation up to a 5-way combination.

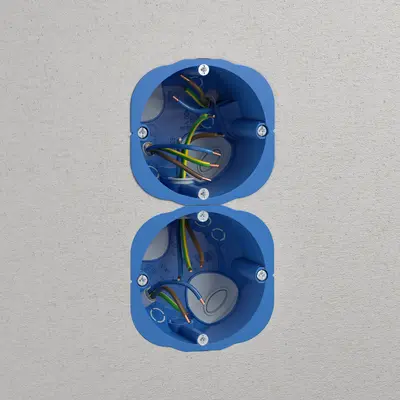

Can be combined with one-gang and one-gang junction boxes.
Can be combined with one-gang and one-gang junction boxes.

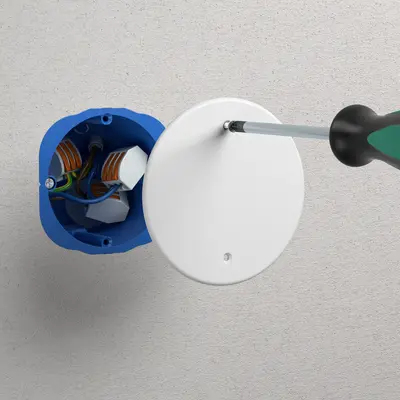

With a sound insulation cover (Art. No. 1184-69), it can also be used as a junction box.
With a sound insulation cover (Art. No. 1184-69), it can also be used as a junction box.

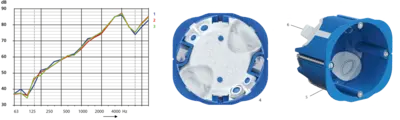

Comparison of sound insulation

Lightweight wall (2-layer, each triple-boarded)
Comparison of sound insulation
(1) Wall, without installations, 69 dB. | (2) O-range® Acoustic 5329 / 5379, single, with accessory, 69 dB | (3) The solid box body and the sound-absorbing surface on the base of the box guarantee sound insulation up to 69 dB. | (4) Sound-absorbing strips on the box edge to reduce structure-borne sound. | (5) Easy opening of the conduit entry by means of pre-defined opening tab.

Processing instructions

Can be used in Ø 68 mm installation Openings.
Can be used in Ø 68 mm installation Openings.

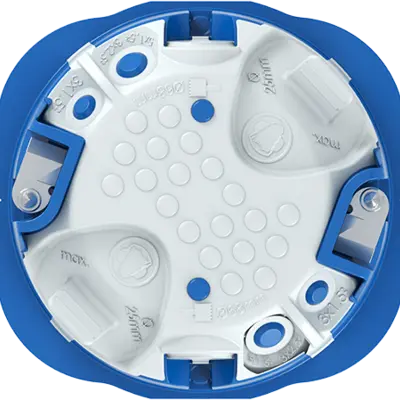

Up to 6 Ø 4 - 11.5 mm cable entries and 2 conduit entries up to M25.
Up to 6 Ø 4 - 11.5 mm cable entries and 2 conduit entries up to M25.

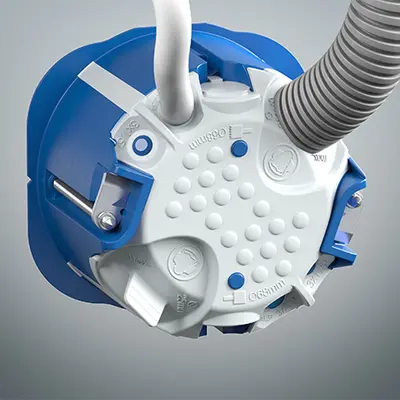

Easy cable and conduit entry with cable retention acc. to DIN EN 60670.
Easy cable and conduit entry with cable retention acc. to DIN EN 60670.

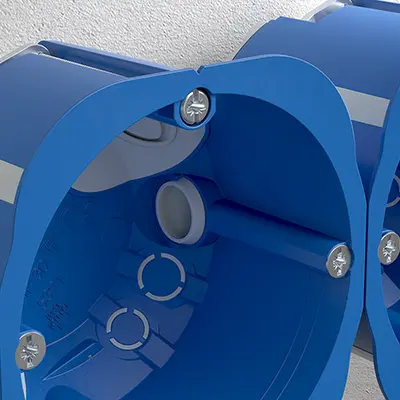

Fully-insulated through-wiring of one-gang and one-gang junction boxes using the support connector (Art. No. 9060-88).
Fully-insulated through-wiring of one-gang and one-gang junction boxes using the support connector (Art. No. 9060-88).

Installation

Cut Ø 68 mm installation opening using MULTI 4000 turbo cutter (Art. No. 1083-10). Cut combinations with a centre distance of 71 mm.
Cut Ø 68 mm installation opening using MULTI 4000 turbo cutter (Art. No. 1083-10). Cut combinations with a centre distance of 71 mm.
Easy opening for the installation of data and power cables or electrical installation conduits.
Easy opening for the installation of data and power cables or electrical installation conduits.
Fix the box using tried-and-tested KAISER FX4 technology.
Fix the box using tried-and-tested KAISER FX4 technology.
Opposing installation - possible for one-gang boxes with a minimum wall thickness of 100 mm and one-gang junction boxes for a minimum of 125 mm.
Opposing installation - possible for one-gang boxes with a minimum wall thickness of 100 mm and one-gang junction boxes for a minimum of 125 mm.
For combinations, create installation openings Ø 68 mm in centre distance 71 mm.
For combinations, create installation openings Ø 68 mm in centre distance 71 mm.
Conduit entry ensures tighter fit of the conduits to the boarding.
Conduit entry ensures tighter fit of the conduits to the boarding.
Ensure fully-insulated through-wiring by using support connector (Art. No. 9060-88).
Ensure fully-insulated through-wiring by using support connector (Art. No. 9060-88).
One-gang boxes and one-gang junction boxes can be combined.
One-gang boxes and one-gang junction boxes can be combined.

Dimensions / Form

Product Ø:
68 mm
Product depth:
61 mm
Installation opening (wall/ceiling) Ø:
68 mm
Drill/cut hole Ø:
68 mm

Connections / Entries

Number of entries:
6
For conduit Ø:
20 mm, 25 mm

Assembly / Installation

Min. panel thickness:
7 mm
Panel thickness max.:
40 mm
Assembly type:
HW (drywall/lightweight construction)

Safety / Properties

Sound insulation walls up to:
69
Halogen-free:
Yes
Special application:
sound insulation
Sound insulation:
Yes
Certificate

Sound insulation boxes Art. No. 5321 and 5371 - Sound insulation certificate

416.4 KB | 10/03/2017
Download

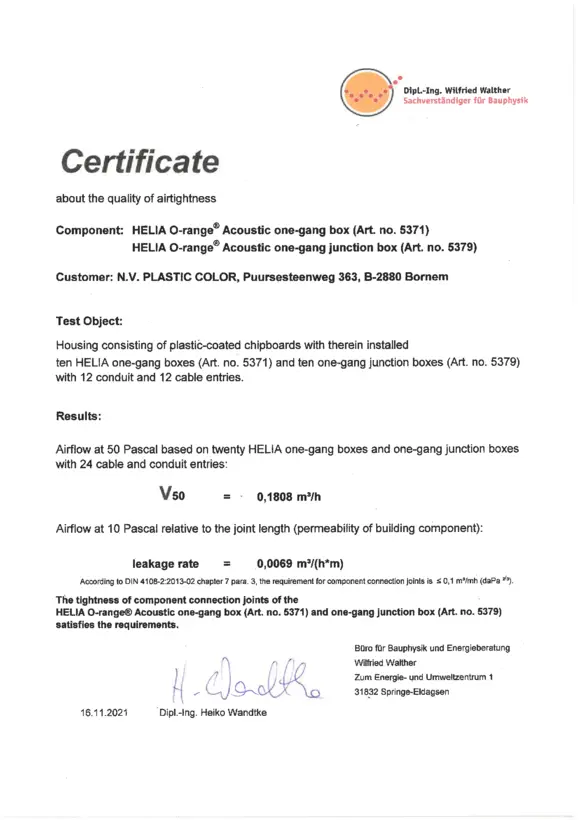

Certificate

-range® Acoustic - airtightness certificate

57.9 KB | 16/11/2021
