Quickbox® ECON Pro
1 / 2
Open Cadenas Modal
  • Compatible with Feller SNAPFIX®
  • for plate thickness > 10 - 40 mm
  • Airtight design with sealing membranes
  • Toolless pipe inlets
  • For Ø 20 mm and Ø 25 mm
  • No shadow gaps of the covers
  • Pipe inlet 90° swivelling
Read more Read less

Quickbox® ECON Pro 2x1

Kaiser GmbH & Co.KG
Artikel-No.: 9299-77.02
EAN: 7611614437309
Feller SNAPFIX compact
Product Ø: 83 mm
Product length: 145 mm
Product width: 83 mm
Product depth: 68 mm
Installation opening (wall/ceiling) Ø: 83 mm
Number of entries: 6
For conduit Ø: 20 mm, 25 mm
Drill/cut hole Ø: 83 mm
Shipping: 50
Price (MSRP) / 100 ST:
€2,095.00
Price group: 121
More product details
Datasheet (PDF)

similar

- kompatibel mit Feller SNAPFIX® - für Plattenstärke > 10 - 40 mm - Luftdichte Ausführung mit Dichtungsmembranen - Werkzeuglose Rohreinführungen - Für Ø 20 mm und Ø 25 mm - Keine Schattenfugen der Abdeckungen - Rohreinführung 90° schwenkbar
Quickbox® ECON Pro 1x1
Artikel-No. 9299-77
  • Compatible with Feller SNAPFIX®
  • for plate thickness > 10 - 40 mm
  • Airtight design with sealing membranes
  • Toolless pipe inlets
  • For Ø 20 mm and Ø 25 mm
  • No shadow gaps of the covers
  • Pipe inlet 90° swivelling
See more
- kompatibel mit Feller SNAPFIX® - für Plattenstärke > 10 - 40 mm - Luftdichte Ausführung mit Dichtungsmembranen - Werkzeuglose Rohreinführungen - Für Ø 20 mm und Ø 25 mm - Keine Schattenfugen der Abdeckungen - Rohreinführung 90° schwenkbar
Quickbox® ECON Pro 3x1
Artikel-No. 9299-77.03
  • Compatible with Feller SNAPFIX®
  • for plate thickness > 10 - 40 mm
  • Airtight design with sealing membranes
  • Toolless pipe inlets
  • For Ø 20 mm and Ø 25 mm
  • No shadow gaps of the covers
  • Pipe inlet 90° swivelling
See more

Quickbox® ECON Pro

The airtight cavity wall box Quickbox® ECON Pro ensures airtightness of the electrical installation on a new level. The innovative opening lug facilitates installation while ensuring retention of the conduit. Particularly easy to install thanks to tool-free pipe entry, which allows the pipes to be swiveled by up to 90° during installation.
  • Compatible with Feller SNAPFIX®
  • Toolless pipe insertion thanks to innovative opening lug with retainer
  • Pipes can be swivelled by up to 90° during installation
  • Elastic sealing membrane guarantees air-tightness
  • No more shadow gaps with covers on smooth surfaces
  • More space in the combinations for easier and faster wiring

Processing instructions

“The certificates can be downloaded as PDF files from our website, or can be requested from our technical consultancy department.”
The elastic sealing membrane of the ECON® technology joins when the pipes are pushed through. Uncontrolled air flows are thus excluded.
The elastic sealing membrane of the ECON® technology joins when the pipes are pushed through. Uncontrolled air flows are thus excluded.
The flexible and tool-free insertion of the conduit or cable significantly simplifies the process and reduces installation time.
The flexible and tool-free insertion of the conduit or cable significantly simplifies the process and reduces installation time.
Reinforcement around the opening prevents the membrane from tearing and at the same time increases the retention of the tubes.
Reinforcement around the opening prevents the membrane from tearing and at the same time increases the retention of the tubes.
Easy opening of the conduit entry by means of pre-defined opening tab.
Easy opening of the conduit entry by means of pre-defined opening tab.
Permanently airtight pipe entry in M20 and M25.
Permanently airtight pipe entry in M20 and M25.

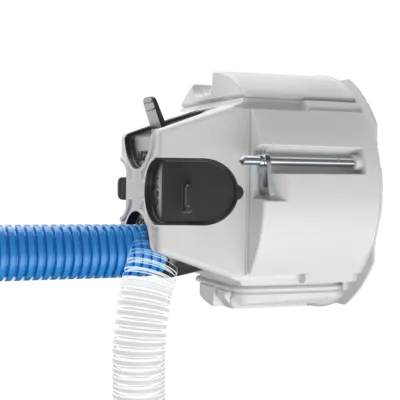

The conduit can be angled in the entry by up to 90°…
The conduit can be angled in the entry by up to 90°…
…which is ideal for use in slim wall constructions and installation levels.
…which is ideal for use in slim wall constructions and installation levels.
The marking of the entry openings simplifies the correct choice of opening size.
The marking of the entry openings simplifies the correct choice of opening size.
More space in the combinations for easier and faster wiring.
More space in the combinations for easier and faster wiring.

Dimensions / Form

Product Ø:
83 mm
Product length:
145 mm
Product width:
83 mm
Product depth:
68 mm
Installation opening (wall/ceiling) Ø:
83 mm
Drill/cut hole Ø:
83 mm

Connections / Entries

Number of entries:
6
For conduit Ø:
20 mm, 25 mm

Assembly / Installation

Assembly type:
HW (drywall/lightweight construction)
