Quickbox® inlet boxes

accessories

Screws
Artikel-No. 2445-25
  • for cavity wall boxes
  • for the following articles: 9062-.., 9063-.., 9064-.., 9066-.., 9067-01, 9068-.., 9071-.., 9073-.., 9075-.., 9192-.., 9195-.., 9196-.., 9197-.., 9248-..,9300-.., 9098-77, 9263-.., 9264-..
Metal lugs for screws
Artikel-No. 2445-50
  • for cavity wall boxes
  • for the following articles: 9061-.., 9062-.., 9063-.., 9064-.., 9066-.., 9067-01, 9068-.., 9071-.., 9073-.., 9075-.., 9148-00, 9195-.., 9248-.., 9300-.., 9098-77, 9263-.., 9264-..
Zero Clamping Strap
Artikel-No. 78512-03
  • for Quickbox
  • for mounting the Quickbox® in mounting plates up to 0.5 mm

tools

Universal opening cutter for plastics
Artikel-No. 1085-80
  • for manufacture of exact entry size
  • for low-voltage wiring of Ø 4 - 7.5 mm
  • for sheathed cabling up to 5 x 2.5 or 7 x 1.5
  • for cable NYY up to 5 x 2.5
  • for DIN EN conduits (flexible) with outer Ø of up to 20/25 mm
  • with 1/4" chuck size for battery-powered drills

similar

Quickbox® Kombi 3x2
Artikel-No. 9098-77.06
  • Compatible with Feller SNAPFIX®
  • for plate thickness 7 - 35 mm
  • indispensable in light and column construction
  • Retrofitting is possible
  • Extremely robust construction
  • For device screws Ø 3 mm
  • Max. tightening torque 0.5 Nm

Quickbox® inlet boxes

The well-known AGRO cavity wall box with proven lug fastening technology and improved product features. A practical design and a targeted selection of pipe entries allow a wide range of possible uses. Additional special applications such as installation in thinly planked walls with the aid of the zero clamping lug round off the diverse range. The certifications from Electrosuisse and ESTI document the high quality standards.
  • Compatible with Feller SNAPFIX®

Dimensions / Form

Product Ø:
83 mm
Product length:
145 mm
Product width:
145 mm
Product depth:
65 mm
Installation opening (wall/ceiling) Ø:
83 mm
Drill/cut hole Ø:
83 mm

Connections / Entries

For conduit Ø:
20 mm, 25 mm

Assembly / Installation

Assembly type:
HW (drywall/lightweight construction)

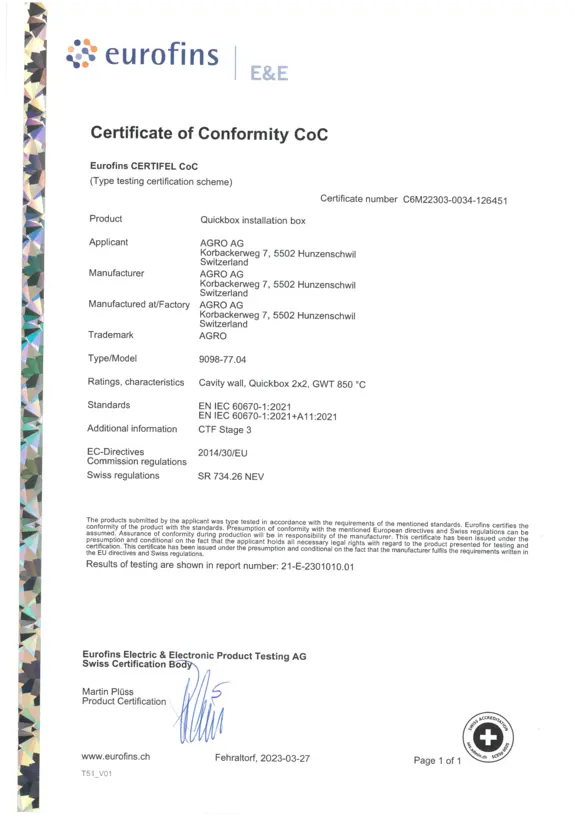

Certificate
3.1 MB | 10/06/2026
Screws
Artikel-No. 2445-25
  • for cavity wall boxes
  • for the following articles: 9062-.., 9063-.., 9064-.., 9066-.., 9067-01, 9068-.., 9071-.., 9073-.., 9075-.., 9192-.., 9195-.., 9196-.., 9197-.., 9248-..,9300-.., 9098-77, 9263-.., 9264-..
Metal lugs for screws
Artikel-No. 2445-50
  • for cavity wall boxes
  • for the following articles: 9061-.., 9062-.., 9063-.., 9064-.., 9066-.., 9067-01, 9068-.., 9071-.., 9073-.., 9075-.., 9148-00, 9195-.., 9248-.., 9300-.., 9098-77, 9263-.., 9264-..
Zero Clamping Strap
Artikel-No. 78512-03
  • for Quickbox
  • for mounting the Quickbox® in mounting plates up to 0.5 mm
Universal opening cutter for plastics
Artikel-No. 1085-80
  • for manufacture of exact entry size
  • for low-voltage wiring of Ø 4 - 7.5 mm
  • for sheathed cabling up to 5 x 2.5 or 7 x 1.5
  • for cable NYY up to 5 x 2.5
  • for DIN EN conduits (flexible) with outer Ø of up to 20/25 mm
  • with 1/4" chuck size for battery-powered drills
Quickbox® Kombi 3x2
Artikel-No. 9098-77.06
  • Compatible with Feller SNAPFIX®
  • for plate thickness 7 - 35 mm
  • indispensable in light and column construction
  • Retrofitting is possible
  • Extremely robust construction
  • For device screws Ø 3 mm
  • Max. tightening torque 0.5 Nm
