SPECIAL cutter for insulating boards

tools

Mini equipment carrier with 4 swivels and 2 ribs
Artikel-No. 1159-50
  • Retrofitting in existing composite thermal insulation systems (ETICS)
  • consisting of anchor sleeve and attachment core
  • for insulation thicknesses of 80 mm and upwards
  • Screw-on surface with 10 mm tolerance compensation
  • 4 swivel cutters
  • 2 ribs
  • Sealing lip on all sides
  • Weight loading up to 30 N (3 kg)
  • equipment attached with self-tapping screws with Ø of 3.2 - 4 mm

SPECIAL cutter for insulating boards

Retrofitting electrical connections to an already completed, insulated facade is a challenge. The SPECIAL cutters can be used to create installation openings without weakening the external composite thermal insulation system, as insulation is only removed at certain points.
  • with depth stop to prevent heat bridges
  • Hardened metal teeth enable use even with plastering
  • easy removal of the drilled core

SPECIAL cutter Ø 20 x 80 mm for KAISER mini equipment carrier

The SPECIAL cutter Ø 20 x 80 mm with carbide cutters for exact installation openings. (Art. No. 1088-06).
The SPECIAL cutter Ø 20 x 80 mm with carbide cutters for exact installation openings. (Art. No. 1088-06).

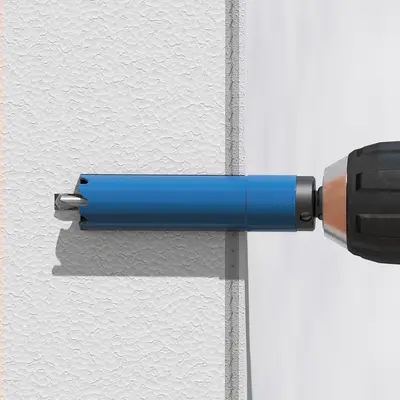

The drilling depth stop ensures that only the amount of insulation material is removed thath is necessary to secure the mini equipment carrier.
The drilling depth stop ensures that only the amount of insulation material is removed thath is necessary to secure the mini equipment carrier.
By simply unscrewing the cutter head, the drilled core can be removed quickly using a centering drill.
By simply unscrewing the cutter head, the drilled core can be removed quickly using a centering drill.

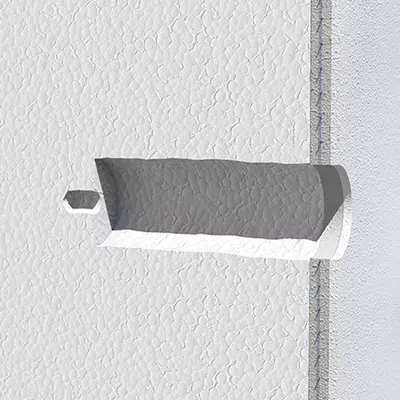

The insulating capacity remains intact despite the installation opening.
The insulating capacity remains intact despite the installation opening.

Dimensions / Form

Product Ø:
20 mm
Product length:
80 mm
Installation opening (wall/ceiling) Ø:
20 mm
Drill hole Ø:
20 mm
Drill/cut hole Ø:
20 mm
Drilling/cut hole depth:
max. 60 mm
Instruction

Mini equipment carrier

Assembly instructions

745.5 KB | 03/12/2024
The heart of every installation. - The KAISER box.
Flyer

The heart of every installation. - The KAISER box.

Designed by craftsmen, made by KAISER!

Mini equipment carrier with 4 swivels and 2 ribs
Artikel-No. 1159-50
  • Retrofitting in existing composite thermal insulation systems (ETICS)
  • consisting of anchor sleeve and attachment core
  • for insulation thicknesses of 80 mm and upwards
  • Screw-on surface with 10 mm tolerance compensation
  • 4 swivel cutters
  • 2 ribs
  • Sealing lip on all sides
  • Weight loading up to 30 N (3 kg)
  • equipment attached with self-tapping screws with Ø of 3.2 - 4 mm
