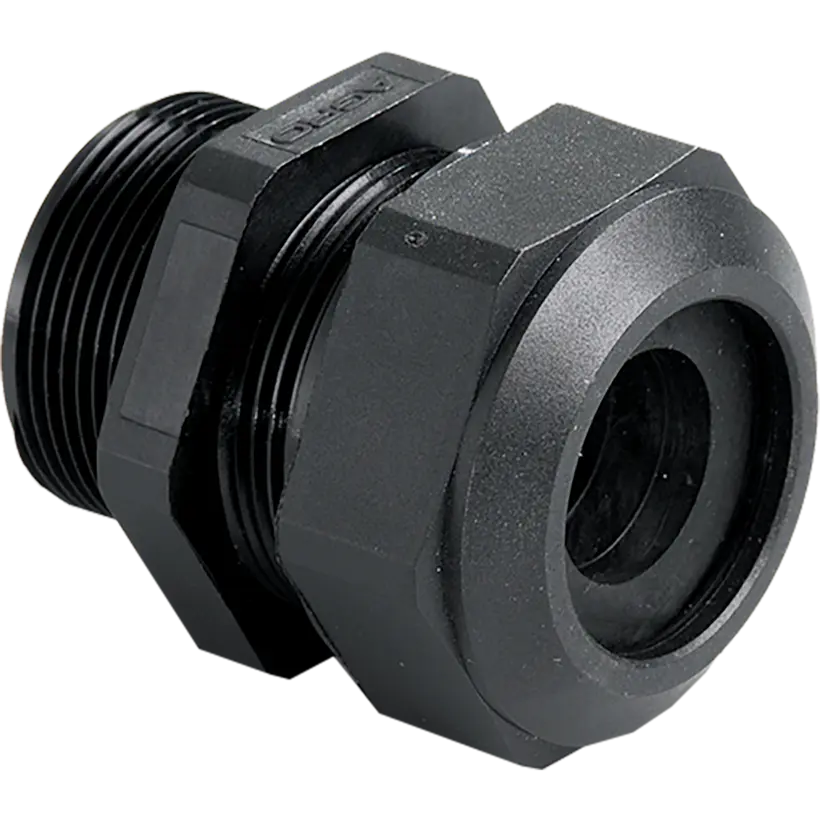

Synthetic cable glands Progress® GFK

Entry thread Pg

Thread	Pg 9	Pg 11	Pg 13	Pg 16	Pg 21	Pg 29	Pg 36	Pg 42	Pg 48
Min. clamping range	8 mm	8.5 mm	11 mm	11 mm	16 mm	23 mm	30.5 mm	37 mm	43 mm
Max. clamping range	10.5 mm	12 mm	15 mm	15 mm	20.5 mm	27.5 mm	35 mm	42 mm	49 mm
Clamping range with inlet min.	6 mm	5.5 mm	8 mm	8 mm	12.5 mm	19 mm	26 mm	33 mm	37 mm
Clamping range with inlet max.	8 mm	8.5 mm	11 mm	11 mm	16 mm	23 mm	30.5 mm	37 mm	43 mm
Spanner size	21 mm	24 mm	27 mm	27 mm	34 mm	41 mm	55 mm	60 mm	70 mm
Properties	halogen-free	halogen-free	halogen-free	halogen-free	halogen-free	halogen-free	halogen-free	halogen-free	halogen-free
Thread type	Pg	Pg	Pg	Pg	Pg	Pg	Pg	Pg	Pg
clamp technology	Compression technology	Compression technology	Compression technology	Compression technology	Compression technology	Compression technology	Compression technology	Compression technology	Compression technology
Protection class	IP68	IP68	IP68	IP68	IP68	IP68	IP68	IP68	IP68
Artikel-No.	1540.09	1540.11	1540.13	1540.16	1540.21	1540.29	1540.36	1540.42	1540.48
Packaging / Shipping	- / 50	- / 50	- / 50	- / 50	- / 25	- / 25	- / 10	- / 10	- / 5
