Damp room one-gang junction box
1 / 3
Open Cadenas Modal
  • Peripheral 5 cm wide adhesive collar to hold mineral sealing materials, e. g. sealing slurries
  • Convenient sealing into the sealing layer thanks to the fleece-like surface structure of the sealing sleeve
  • Tested and certified for applications according to DIN 18534
  • Air-tight and watertight design with sealing membranes for six cables up to max. Ø 11.5 mm with integrated cable retention
  • Can be used with the KAISER plaster compensating rings (Art. No. 9155-61 or -62) with built-up wall coverings

One-gang junction box, air-tight and watertight, for professional installation in damp room cavity walls.
Damp room box for cavity walls, designed as a cavity wall one-gang junction box in accordance with DIN EN 60670/VDE 0606 and DIN 49073, made of plastic, air-tight design in accordance with DIN 18015-5, watertight design in accordance with DIN 18534, with 5 cm wide peripheral adhesive collar for mineral sealing materials
Installation opening Ø 60 mm, installation opening Ø 68 mm, depth 62 mm, for panel thickness 7-40 mm, with 2 plus-minus device screws,
6 markings for wire entries up to max. Ø 11.5 mm using universal opening cutter (Art. no. 1085-80), protection class IP 30 according to DIN EN 60529, flame-retardant according to DIN EN 60695 up to 850° C, for professional installation in damp room cavity walls
Read more Read less

Damp room one-gang junction box

Kaiser GmbH & Co.KG
Artikel-No.: 9264-42
EAN: 4013456590137
air tightness
Halogen-free
Product Ø: 68 mm
Product depth: 62 mm
Installation opening (wall/ceiling) Ø: 68 mm
Number of entries: 6
Min. panel thickness: 7 mm
Panel thickness max.: 40 mm
Drill/cut hole Ø: 68 mm
air tightness: Yes
Halogen-free: Yes
Packaging / Shipping: 10 / 100
Price (MSRP) / 100 ST:
€1,855.00
Price group: 121
More product details
Datasheet (PDF)

accessories

- zum Ausgleich zu tief sitzender Dosen - Putzausgleich-Ringe mit gleichem Durchmesser höhenkombinierbar - mit 2 Schrauben zur Gerätebefestigung und 2 Ringbefestigungsschrauben
Plaster compensation ring for boxes Ø 68 mm, Height 10 mm
Artikel-No. 9155-61
  • to compensate for deep-seated boxes
  • plaster compensation rings with same diameter can be stacked
  • with 2 screws for attaching equipment and 2 ring attachment screws
See more
- zum Ausgleich zu tief sitzender Dosen - Putzausgleich-Ringe mit gleichem Durchmesser höhenkombinierbar - mit 2 Schrauben zur Gerätebefestigung und 2 Ringbefestigungsschrauben
Plaster compensation ring for boxes Ø 68 mm, Height 20 mm
Artikel-No. 9155-62
  • to compensate for deep-seated boxes
  • plaster compensation rings with same diameter can be stacked
  • with 2 screws for attaching equipment and 2 ring attachment screws
See more

tools

Universal opening cutter for plastics
Universal opening cutter for plastics
Artikel-No. 1085-80
  • for manufacture of exact entry size
  • for low-voltage wiring of Ø 4 - 7.5 mm
  • for sheathed cabling up to 5 x 2.5 or 7 x 1.5
  • for cable NYY up to 5 x 2.5
  • for DIN EN conduits (flexible) with outer Ø of up to 20/25 mm
  • with 1/4" chuck size for battery-powered drills
See more

Damp room one-gang junction box

The damp room one-gang junction box from KAISER provides optimum sealing for electrical installations in areas exposed to splash water, process water and cleaning water. Thanks to the 5 cm peripheral adhesive collar, the innovative and for applications DIN 18534-tested and certified waterproof one-gang junction box can be easily integrated into the sealing layer (e.g. flexible sealing slurry or sealing membranes) and maintains the protection target of the wall. Uncontrolled moisture exchange is permanently prevented thanks to the precisely fitting cable entries created using the KAISER universal opening cutter.
  • For professional installation in sealed interior rooms, such as commercial kitchens, bathroom modules or damp rooms in hospitals
  • Tested and certified watertightness for applications in accordance with DIN 18534
  • For installation openings Ø 68 mm
  • 6 air-tight and watertight cable entries
  • Device screws with +/- drive

Application examples

The fleece-like structure of the peripheral adhesive collar enables problem-free sealing in flexible sealing slurries...
The fleece-like structure of the peripheral adhesive collar enables problem-free sealing in flexible sealing slurries...
...or conventional sealing membranes and thus fits seamlessly into the existing sealing system.
...or conventional sealing membranes and thus fits seamlessly into the existing sealing system.
Waterproof one-gang junction box, mounted in a cement fibreboard, integrated into the sealing level with attached tiling.
Waterproof one-gang junction box, mounted in a cement fibreboard, integrated into the sealing level with attached tiling.
To comply with the IP protection class, the plaster compensation ring (Art. No. 9155-61 or -62) can be fitted for > 10 mm wall coverings.
To comply with the IP protection class, the plaster compensation ring (Art. No. 9155-61 or -62) can be fitted for > 10 mm wall coverings.

Processing instructions

Produce the exact fitting cable entry using KAISER universal opening cutter (Art. No. 1085-80).
Produce the exact fitting cable entry using KAISER universal opening cutter (Art. No. 1085-80).
Up to six cable entries for sheathed cables with external diameter up to max. Ø 11.5 mm.
Up to six cable entries for sheathed cables with external diameter up to max. Ø 11.5 mm.
By removing the backing film, the peripheral collar can be easily stuck to the wall surface.
By removing the backing film, the peripheral collar can be easily stuck to the wall surface.
Integrated cable retention of NYM cables according to DIN EN 60670.
Integrated cable retention of NYM cables according to DIN EN 60670.

Installation

Create the exact installation opening Ø 68 mm using the KAISER cutter EXPERT (Art. No. 1082-30).
Create the exact installation opening Ø 68 mm using the KAISER cutter EXPERT (Art. No. 1082-30).
Open the cable entries using the KAISER universal opening cutter (Art. No. 1085-80) and insert the cables up to Ø 11.5 mm.
Open the cable entries using the KAISER universal opening cutter (Art. No. 1085-80) and insert the cables up to Ø 11.5 mm.
Gradually remove the backing film, align the box in the installation opening and then spread the sleeve to bonding it to the wall surface.
Gradually remove the backing film, align the box in the installation opening and then spread the sleeve to bonding it to the wall surface.
Fastening of the box in the installation opening by means of lug fixing.
Fastening of the box in the installation opening by means of lug fixing.
Application of the waterproofing layer (e. g. sealing slurry).
Application of the waterproofing layer (e. g. sealing slurry).
Application of the wall covering (e. g. tiling).
Application of the wall covering (e. g. tiling).
Fasten the installation accessory using the device screws.
Fasten the installation accessory using the device screws.
To comply with the IP protection class, the plaster compensation ring (Art. No. 9155-61 or -62) can be fitted for > 10 mm wall coverings.
To comply with the IP protection class, the plaster compensation ring (Art. No. 9155-61 or -62) can be fitted for > 10 mm wall coverings.

Dimensions / Form

Product Ø:
68 mm
Product depth:
62 mm
Installation opening (wall/ceiling) Ø:
68 mm
Drill/cut hole Ø:
68 mm

Connections / Entries

Number of entries:
6

Assembly / Installation

Min. panel thickness:
7 mm
Panel thickness max.:
40 mm
Assembly type:
HW (drywall/lightweight construction)

Safety / Properties

air tightness:
Yes
Halogen-free:
Yes
Special application:
Humid room, air-tight
Waterproof in accordance with DIN 18534:
Yes
Certificate

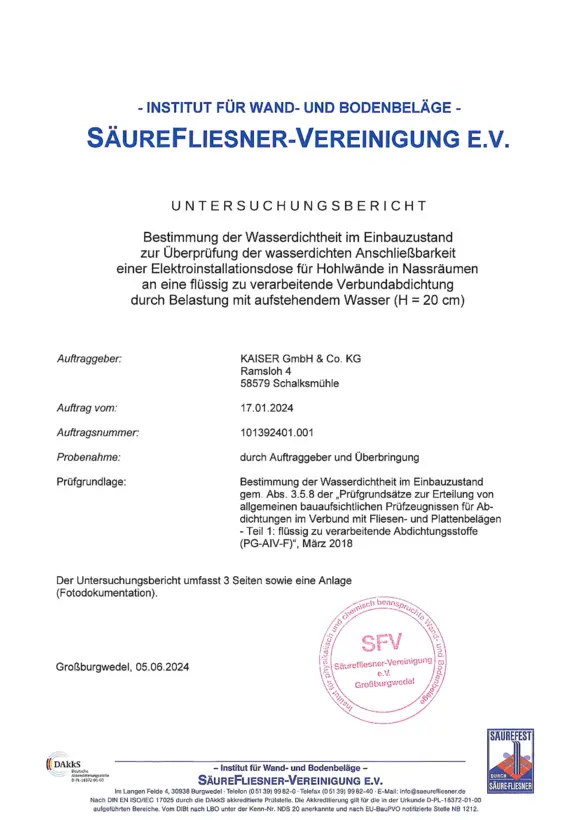

Watertightness test report (Art. No. 9264-42)

2.4 MB | 05/06/2024
Download
Instruction

Damp room one-gang junction box

Assembly instructions, Art. No. 9264-42

1.2 MB | 24/07/2025
Download
