Cable glands Progress® EMC Series 85 nickel-plated brass with collet chuck
Thread:
M25x1.5
Min. clamping range:
16 mm
Max. clamping range:
20.5 mm
Clamping range with inlet min.:
12.5 mm
Clamping range with inlet max.:
16 mm
Spanner size:
30 mm
Properties:
For high leakage currents, concentric shield contact with minimal transfer resistances and transfer impedances
Thread type:
metric
clamp technology:
Compression technology
Contact:
collet
Protection class:
IP68, IP69
Protection class with condition:
IP 68 (10 bar) / IP69
Shielded design (EMC):
Yes
Shipping:
20
Price (MSRP) / 100 ST:
€3,600.00
Price group:
520
Available with sealing inserts conformity with EN 45545 / NFPA 130. When placing an inquiry, prefix the article number by the capital F. Important: To provide the best possible protection for the cable shield and the cable, it is necessary to install a copper EMC tape.
Dimensions / Form
- Thread:
- M25x1.5
- Spanner size:
- 30 mm
- Dimension H:
- 59 mm
- Dimension X:
- 21 mm
- Thread length L:
- 8 mm
Connections / Entries
- Min. clamping range:
- 16 mm
- Max. clamping range:
- 20.5 mm
- Clamping range with inlet min.:
- 12.5 mm
- Clamping range with inlet max.:
- 16 mm
- clamp technology:
- Compression technology
- Contact:
- collet
Safety / Properties
- Shielded design (EMC):
- Yes
Features
- Properties:
- For high leakage currents, concentric shield contact with minimal transfer resistances and transfer impedances
- Thread type:
- metric
Approvals / Certifications
- Protection class:
- IP68, IP69
- Protection class with condition:
- IP 68 (10 bar) / IP69

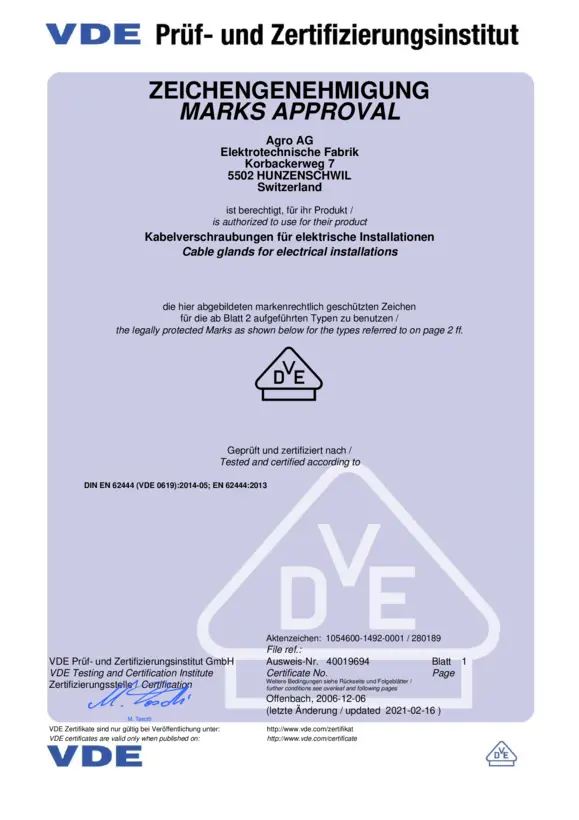

- VDE:
- Yes
Storage / Installation / Operation
- Minimum operating temperature:
- -40 °C
- Maximum operating temperature:
- 100 °C
