Cable glands Progress® EMC powerCONNECT nickel-plated brass
Thread:
M16x1.5
Min. clamping range:
8 mm
Max. clamping range:
10.5 mm
Clamping range with inlet min.:
6 mm
Clamping range with inlet max.:
8 mm
Spanner size:
18 mm
Properties:
For high leakage currents, concentric 360° shield contact ensure extremely low transfer resistance and transfer impedance. Compact design
Thread type:
metric
Thread length:
long
clamp technology:
Compression technology
Contact:
Press sleeve
Protection class:
IP68, IP69
Protection class with condition:
IP 68 (10 bar) / IP69
Shipping:
25
Price (MSRP) / 100 ST:
€2,030.00
Price group:
520
1 = One-piece sealing insert. Available with sealing inserts conformity with EN 45545 / NFPA 130. When placing an inquiry, prefix the article number by the capital F. Stainless steel A2 or A4. Entry thread Pg and NPT
Dimensions / Form
- Thread:
- M16x1.5
- Spanner size:
- 18 mm
- Dimension H:
- 28 mm
- Thread length L:
- 10 mm
Connections / Entries
- Min. clamping range:
- 8 mm
- Max. clamping range:
- 10.5 mm
- Clamping range with inlet min.:
- 6 mm
- Clamping range with inlet max.:
- 8 mm
- clamp technology:
- Compression technology
- Contact:
- Press sleeve
Features
- Properties:
- For high leakage currents, concentric 360° shield contact ensure extremely low transfer resistance and transfer impedance. Compact design
- Thread type:
- metric
- Thread length:
- long
Approvals / Certifications
- Protection class:
- IP68, IP69
- Protection class with condition:
- IP 68 (10 bar) / IP69

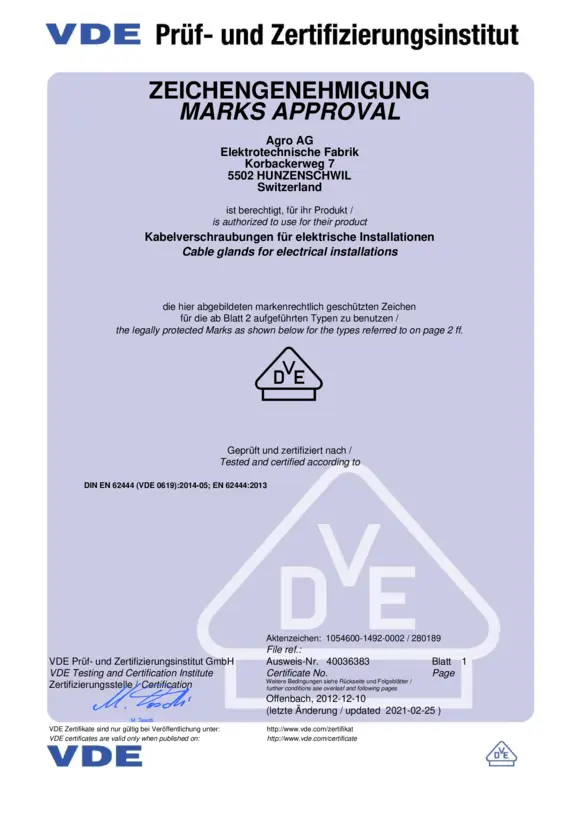

- VDE:
- Yes
Storage / Installation / Operation
- Minimum operating temperature:
- -60 °C
- Maximum operating temperature:
- 100 °C
