Clean room one-gang junction box
1 / 2
Open Cadenas Modal
  • For professional installation in clean room walls and functioning containments
  • Certified according to VDI 2083 sheet 19 (tightness class 7)
  • Airtight design with sealing membranes and peripheral sealing lip
  • For cables up to max. Ø 11.5mm with integrated cable retention

One-gang junction box, air-tight, for professional installation in clean room cavity walls.
Clean room box for cavity walls, designed as a cavity wall one-gang junction box in accordance with DIN EN 60670/VDE 0606 and DIN 49073, made of plastic, air-tight design in accordance with VDI 2083 Sheet 19 (tightness class 7, extended class 11),
installation opening Ø 60 mm, installation opening Ø 68 mm, depth 62 mm, for panel thickness 7-40 mm, combination distance 71 mm with fully insulated straight couplings, with 2 plus-minus device screws,
6 markings for wire entries up to max. Ø 11.5 mm using universal opening cutter (Art. no. 1085-80), protection class IP 30 according to DIN EN 60529, flame-retardant according to DIN EN 60695 up to 850° C, for professional installation in clean room cavity walls
Read more Read less

Clean room one-gang junction box with peripheral sealing lip, depth 62 mm

Kaiser GmbH & Co.KG
Artikel-No.: 9264-32
EAN: 4013456587465
air tightness
Halogen-free
Product Ø: 68 mm
Product depth: 62 mm
Installation opening (wall/ceiling) Ø: 68 mm
Number of entries: 6
Min. panel thickness: 7 mm
Panel thickness max.: 40 mm
Drill/cut hole Ø: 68 mm
air tightness: Yes
Halogen-free: Yes
Packaging / Shipping: 10 / 100
Price (MSRP) / 100 ST:
€1,755.00
Price group: 121
More product details
Datasheet (PDF)

accessories

- zur vollisolierten Durchverdrahtung bei Kombinationen - zur Erstellung luftdichter Kombinationen - für Art.-Nr. 9066-01/-12, 9068-01, 9263-.., 9264-.., 9062-02/-77, 9062-94/-74, 9268-94/-74, 9266-22/-77
Support connector, air-tight, halogen-free
Artikel-No. 9060-78
  • For fully insulated through-wiring in combinations
  • to make air-tight combinations
  • for Art. Nos. 9066-01/12, 9068-01, 9263-..., 9264-… , 9062-02/-77, 9062-94/-74, 9268-94/-74, 9266-22/-77
See more

tools

Universal opening cutter for plastics
Universal opening cutter for plastics
Artikel-No. 1085-80
  • for manufacture of exact entry size
  • for low-voltage wiring of Ø 4 - 7.5 mm
  • for sheathed cabling up to 5 x 2.5 or 7 x 1.5
  • for cable NYY up to 5 x 2.5
  • for DIN EN conduits (flexible) with outer Ø of up to 20/25 mm
  • with 1/4" chuck size for battery-powered drills
See more

Clean room one-gang junction box

With the new cleanroom appliance junction box, KAISER offers the ideal solution for reliably maintaining tightness in the cleanroom. The one-gang junction box, tested at the Steinbeis Transfer Centre STZ EURO in Offenburg in accordance with VDI 2083 Sheet 19 prevents the transmission of airborne particles, viruses or gases and has the highest tightness class (tightness class 7) of the clean room. Thanks to the sealing lip under the holding ring and the and the cable entries that can be created precisely using the KAISER universal opening cutter, an uncontrolled exchange of air can be permanently prevented to protect against contamination. The safe solution - even after the requalification test!
  • For use in clean rooms in a medical environment or in hygienic areas
  • To protect personnel and products in cleanrooms from contamination of any kind (airborne particles, viruses or gases)
  • For Ø 68 mm installation openings
  • Complete assembly and installation with just one screwdriver

Processing instructions

Fully insulated through-wiring at the normative centre distance of 71 mm by means of support connectors (Art. No. 9060-78).
Fully insulated through-wiring at the normative centre distance of 71 mm by means of support connectors (Art. No. 9060-78).
Up to 6 cable entries for sheathed cables with outer diameter up to max. Ø 11.5 mm.
Up to 6 cable entries for sheathed cables with outer diameter up to max. Ø 11.5 mm.
Integrated cable retention of the NYM cables according to EN 60670.
Integrated cable retention of the NYM cables according to EN 60670.

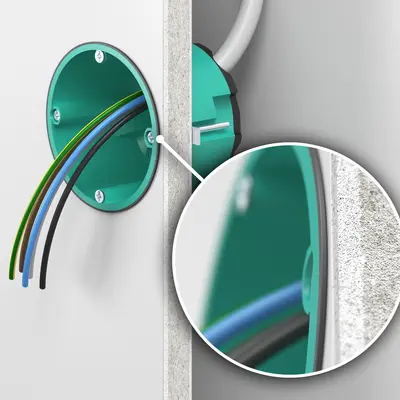

The peripheral sealing lip prevents the exchange of air and airborne particles at the installation opening.
The peripheral sealing lip prevents the exchange of air and airborne particles at the installation opening.

Installation

Create installation opening Ø 68 mm with KAISER cutter (e.g. EXPERT, Art. No. 1082-30).
Create installation opening Ø 68 mm with KAISER cutter (e.g. EXPERT, Art. No. 1082-30).
Produce the precisely fitting cable entry (max. up to Ø 11.5 mm) using KAISER universal opening cutter (Art. No. 1085-80).
Produce the precisely fitting cable entry (max. up to Ø 11.5 mm) using KAISER universal opening cutter (Art. No. 1085-80).
Insert the cables through the elastic sealing membrane and tighten the screws.
Insert the cables through the elastic sealing membrane and tighten the screws.
Secure the installation accessory with the device screws.
Secure the installation accessory with the device screws.

Verifications

The certificates can be downloaded as PDF files from our website, or can be requested from our technical consultancy department.
Verifications

Dimensions / Form

Product Ø:
68 mm
Product depth:
62 mm
Installation opening (wall/ceiling) Ø:
68 mm
Drill/cut hole Ø:
68 mm

Connections / Entries

Number of entries:
6

Assembly / Installation

Min. panel thickness:
7 mm
Panel thickness max.:
40 mm
Assembly type:
HW (drywall/lightweight construction)

Safety / Properties

air tightness:
Yes
Halogen-free:
Yes
Special application:
Clean room, air-tight
Certificate

Test certificate - Clean room one-gang junction box (art. no. 9264-32)

426.1 KB | 18/02/2026
Download
Innovations 2026
Brochure

Innovations 2026

Designed by craftsmen, made by KAISER!

4.5 MB
Clean room one-gang junction box
Flyer

Clean room one-gang junction box

Certified according to VDI 2083.
Safe preservation of clean room sealing.

850.7 KB
- zur vollisolierten Durchverdrahtung bei Kombinationen - zur Erstellung luftdichter Kombinationen - für Art.-Nr. 9066-01/-12, 9068-01, 9263-.., 9264-.., 9062-02/-77, 9062-94/-74, 9268-94/-74, 9266-22/-77
Support connector, air-tight, halogen-free
Artikel-No. 9060-78
  • For fully insulated through-wiring in combinations
  • to make air-tight combinations
  • for Art. Nos. 9066-01/12, 9068-01, 9263-..., 9264-… , 9062-02/-77, 9062-94/-74, 9268-94/-74, 9266-22/-77
See more
Universal opening cutter for plastics
Universal opening cutter for plastics
Artikel-No. 1085-80
  • for manufacture of exact entry size
  • for low-voltage wiring of Ø 4 - 7.5 mm
  • for sheathed cabling up to 5 x 2.5 or 7 x 1.5
  • for cable NYY up to 5 x 2.5
  • for DIN EN conduits (flexible) with outer Ø of up to 20/25 mm
  • with 1/4" chuck size for battery-powered drills
See more
