B² conduit connectors
Open Cadenas Modal
  • Toolless conduit connection to the B² one-gang junction boxes
  • Accepts rigid and flexible conduits
  • Damping of conduit vibrations during the compaction process
  • Prevents the conduits penetrating the one-gang junction box and thus prevents conduits from being shortened later on
  • Art.-Nr. 1261-21 replaces Art. No. 1261-20 and Art. No. 1261-26 replaces Art. No. 1261-25
Read more Read less

Conduit connector for DIN EN conduit Ø 20 mm

Kaiser GmbH & Co.KG
Artikel-No.: 1261-21
EAN: 4013456584310
For conduit Ø: 20 mm
Shipping: 100
Price (MSRP) / 100 ST:
€102.00
Price group: 140
More product details
Datasheet (PDF)

similar

- Werkzeugloser Rohranschluss an den B² Geräte-Verbindungsdosen - Aufnahme von starren und biegsamen Rohren - Dämpfung der Rohrschwingungen während des Verdichtungsvorgangs - Verhindert das Eindringen der Rohre in die Geräte-Verbindungsdose und vermeiden somit das spätere Rohrkürzen - Art.-Nr. 1261-21 ersetzt Art.-Nr. 1261-20 und Art.-Nr. 1261-26 ersetzt Art.-Nr. 1261-25
Conduit connector for DIN EN conduit Ø 25 mm
Artikel-No. 1261-26
  • Toolless conduit connection to the B² one-gang junction boxes
  • Accepts rigid and flexible conduits
  • Damping of conduit vibrations during the compaction process
  • Prevents the conduits penetrating the one-gang junction box and thus prevents conduits from being shortened later on
  • Art.-Nr. 1261-21 replaces Art. No. 1261-20 and Art. No. 1261-26 replaces Art. No. 1261-25
See more
- Werkzeugloser Rohranschluss an den B² Geräte-Verbindungsdosen - Aufnahme von starren und biegsamen Rohren - Dämpfung der Rohrschwingungen während des Verdichtungsvorgangs - Verhindert das Eindringen der Rohre in die Geräte-Verbindungsdose und vermeiden somit das spätere Rohrkürzen - Art.-Nr. 1261-21 ersetzt Art.-Nr. 1261-20 und Art.-Nr. 1261-26 ersetzt Art.-Nr. 1261-25
Conduit connector for DIN EN conduit Ø 32 mm
Artikel-No. 1261-32
  • Toolless conduit connection to the B² one-gang junction boxes
  • Accepts rigid and flexible conduits
  • Damping of conduit vibrations during the compaction process
  • Prevents the conduits penetrating the one-gang junction box and thus prevents conduits from being shortened later on
  • Art.-Nr. 1261-21 replaces Art. No. 1261-20 and Art. No. 1261-26 replaces Art. No. 1261-25
See more
Conduit connector for DIN EN conduit Ø 40 mm
Conduit connector for DIN EN conduit Ø 40 mm
Artikel-No. 1261-40
  • Toolless conduit connection to the B² one-gang junction boxes
  • Accepts rigid and flexible conduits
  • Damping of conduit vibrations during the compaction process
  • Prevents the conduits penetrating the one-gang junction box and thus prevents conduits from being shortened later on
  • Art.-Nr. 1261-21 replaces Art. No. 1261-20 and Art. No. 1261-26 replaces Art. No. 1261-25
See more

B² conduit connectors

The range of B² conduit connectors offers a secure and toolless conduit connection to the B² one-gang junction boxes without the need for special tools. The conduit connection created using a conduit connector is absolutely impermeable to concrete and safely dampens the vibrations of the conduits during the compaction process. As the conduit connection is made outside the B² one-gang junction boxes, no conduit protrudes into the interior of the box, thus eliminating the need to shorten the conduit on the inside. With the new 90° conduit connectors, sideway conduit connections can now also be easily implemented in narrow installation areas.
  • Toolless conduit connection, no special tools required
  • Precisely fitting "variable" conduit connection, absolutely sealed against concrete
  • Damping of vibrations during the high-frequency or low-frequency compression process
  • Conduit connection outside the one-gang junction box, no conduits protruding into the interior of the box
  • Conduit connectors 90° for the lateral connection of conduits in narrow installation areas

Secure and fast connections using KAISER conduit connectors

With the extensive KAISER conduit connector programme, all rigid or flexible conduits in diameters of 20, 25, 32 and 40 mm can be connected to the B² one-gang junction boxes. Two cutting edges on the connection piece are used to open the box entries without the need for tools; all that is needed to open the entry is to turn it with pressure against the box.
Secure and fast connections using KAISER conduit connectors

Application examples

B² conduit connectors with integrated conduit lock for flexible as well as rigid conduits Ø 20/25/32/40 mm.
B² conduit connectors with integrated conduit lock for flexible as well as rigid conduits Ø 20/25/32/40 mm.

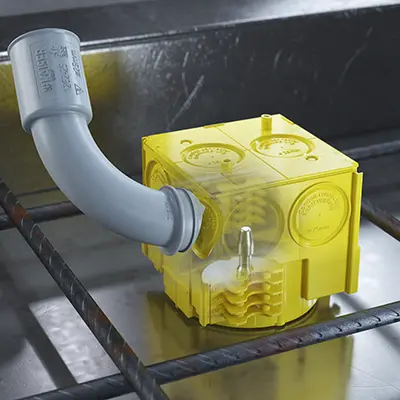

Insert the tips of the conduit connector into the desired conduit entry...
Insert the tips of the conduit connector into the desired conduit entry...

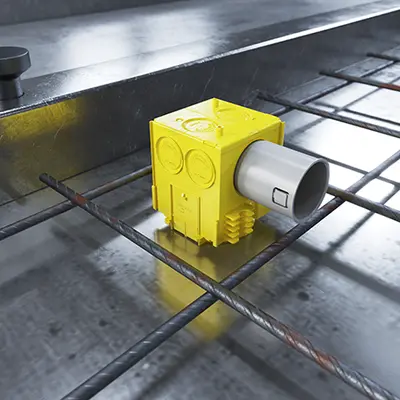

...and using pressure, turn against the one-gang junction box until the feed-through is cut out.
...and using pressure, turn against the one-gang junction box until the feed-through is cut out.

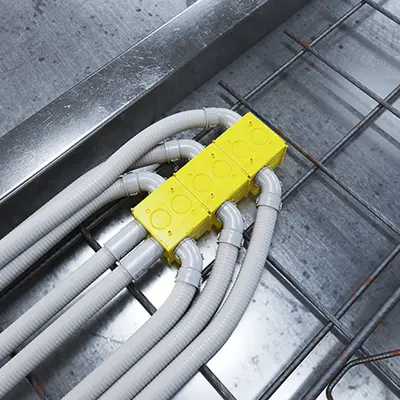

Straight conduit connectors as well as 90° and 60° versions enable every conceivable conduit connection.
Straight conduit connectors as well as 90° and 60° versions enable every conceivable conduit connection.

Processing instructions / prefabrication

The B² range, consisting of one-gang junction boxes, conduit connectors and wall/ceiling transitions, enables complete pre-assembly of the electrical installation. For this...
The B² range, consisting of one-gang junction boxes, conduit connectors and wall/ceiling transitions, enables complete pre-assembly of the electrical installation. For this...
...the conduits connectors and wall/ceiling transitions offer the greatest possible tolerance compensation when using rigid conduits.
...the conduits connectors and wall/ceiling transitions offer the greatest possible tolerance compensation when using rigid conduits.
The planned sub-assemblies for the respective concrete wall elements can be prefabricated in the factory to fit precisely and on time...
The planned sub-assemblies for the respective concrete wall elements can be prefabricated in the factory to fit precisely and on time...
...and then simply and quickly positioned on the formwork table in the circulation system without unnecessarily burdening the production process.
...and then simply and quickly positioned on the formwork table in the circulation system without unnecessarily burdening the production process.

Conduit connectors Ø 20/25/32/40 mm

With built-in conduit lock designed especially for corrugated conduits as well as rigid conduits with a diameter of Ø 20/25/32/40 mm.
With built-in conduit lock designed especially for corrugated conduits as well as rigid conduits with a diameter of Ø 20/25/32/40 mm.
The tip of the conduit connector is inserted at the marking.
The tip of the conduit connector is inserted at the marking.
Using pressure, the conduit connector is turned against the one-gang junction box until the feed-through is cut out.
Using pressure, the conduit connector is turned against the one-gang junction box until the feed-through is cut out.

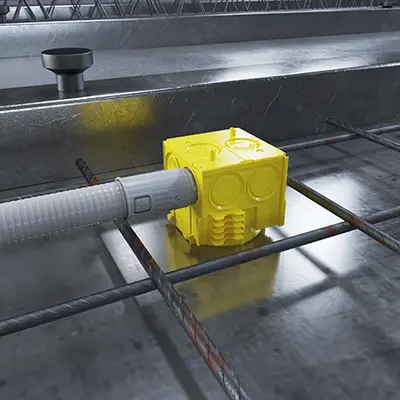

The conduit connector locks into place and the conduit is inserted into the conduit connector.
The conduit connector locks into place and the conduit is inserted into the conduit connector.

Conduit connectors Ø 20/25 mm

With built-in conduit lock designed especially for corrugated conduits with a diameter of 20/25 mm.
With built-in conduit lock designed especially for corrugated conduits with a diameter of 20/25 mm.
Snap the conduit connector in to the one-gang junction box.
Snap the conduit connector in to the one-gang junction box.
Press the conduit connector downwards and completely punch out the feed-through.
Press the conduit connector downwards and completely punch out the feed-through.
Insert the conduit into the conduit connector.
Insert the conduit into the conduit connector.

Conduit connectors Ø 32/40 mm

With built-in conduit lock designed especially for corrugated conduits with a diameter of 32/40 mm.
With built-in conduit lock designed especially for corrugated conduits with a diameter of 32/40 mm.
Insert the tip of the conduit connector in the marked position.
Insert the tip of the conduit connector in the marked position.
Turn the conduit connector with pressure against the one-gang junction box until the feed-through is cut out.
Turn the conduit connector with pressure against the one-gang junction box until the feed-through is cut out.

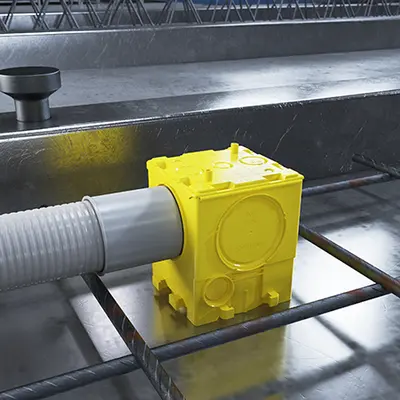

Snap-in the conduit connector, insert the conduit into the conduit connector.
Snap-in the conduit connector, insert the conduit into the conduit connector.

Connections / Entries

For conduit Ø:
20 mm

Assembly / Installation

Assembly type:
BB (solid construction)

Safety / Properties

Special application:
precast concrete
Electrical installation in on-site mixed concrete and as part of the 3D concrete printing process.
Brochure

Electrical installation in on-site mixed concrete and as part of the 3D concrete printing process.

Boxes, housings and systems.

78.4 MB
