Multiple air-tight sleeves ECON®
Open Cadenas Modal
  • 1-piece
  • extremely strong adhesion
  • Temperature resistance from -25°C to +80°C
  • UV-resistant, halogen-free

Multiple air-tight sleeve for permanent sealing of pipe penetrations through air-tight layers,
Self-adhesive air-tight sleeve with anti-kink sleeve to compensate for movements during installation or on-site, for 6 conduits Ø 16-25 mm, air-tight design in accordance with DIN 18015-5.
Temperature resistant from -30°C to 80°C, UV resistant, halogen-free in accordance with DIN VDE 0604-2-100
Read more Read less

ECON® Conduit-sleeve

Kaiser GmbH & Co.KG
Artikel-No.: 9059-62
EAN: 4013456537385
Product length: 320 mm
Product width: 320 mm
Product depth: 30 mm
For conduit Ø: 16 mm, 25 mm
Shipping: 5
Price (MSRP) / 100 ST:
€3,135.00
Price group: 180
More product details
Datasheet (PDF)

accessories

- Der selbstklebende Haftprimer ist wasser- und wärmestandfest und lässt sich zusätzlich z. B. auch auf Styropor, EPS oder XPS einsetzen.
Primer 250 ml, solvent-free
Artikel-No. 9000-02
  • The self-adhesive primer is water and heat resistant. It can also be used on Styrofoam, EPS, XPS etc.
See more

Multiple air-tight sleeves ECON®

Cable and conduit sleeve ECON® for reliable sealing of up to 6 cable or conduit entries through the air-tight building shell - ideal for digital satellite units.
  • Flexible sealing of 1 to 6 cables or conduits
  • Low space requirement, powerful adhesion
  • Completely toolless wall installation
  • Sealing even when cables are extremely kinked
  • Unused entries are reserved for later installations

Examples of use

Connection of a digital satellite receiver unit.
Connection of a digital satellite receiver unit.
4 coaxial cables are connected here for reception.
4 coaxial cables are connected here for reception.

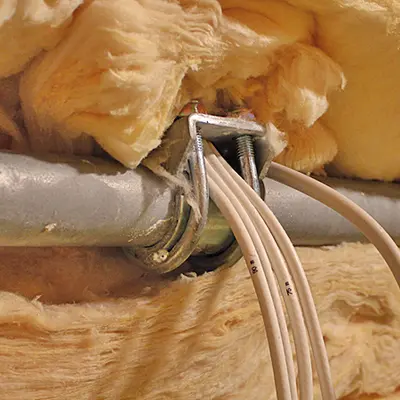

The mast which supports the parabolic mirror must also be incorporated in the equipotential bonding.
The mast which supports the parabolic mirror must also be incorporated in the equipotential bonding.

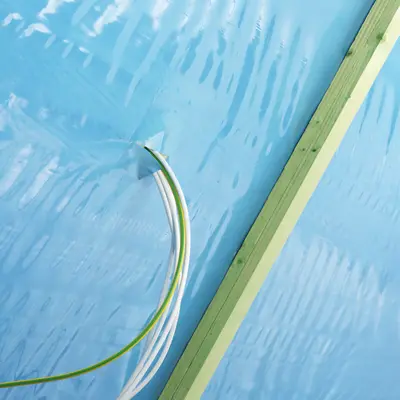

The cables are fed through the building's air-tight seal. This entry must be permanently sealed air-tight.
The cables are fed through the building's air-tight seal. This entry must be permanently sealed air-tight.

Installation

ECON® technology's toolless cable or conduit entry offers maximum ease of installation and permits fast processing.
ECON® technology's toolless cable or conduit entry offers maximum ease of installation and permits fast processing.

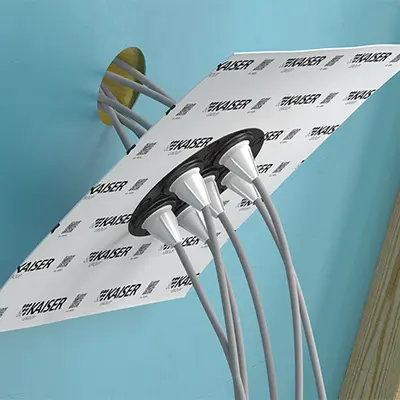

Before the sleeve can be glued in position, make sure that the surface is free of dust. Then remove the protective foil,…
Before the sleeve can be glued in position, make sure that the surface is free of dust. Then remove the protective foil,…

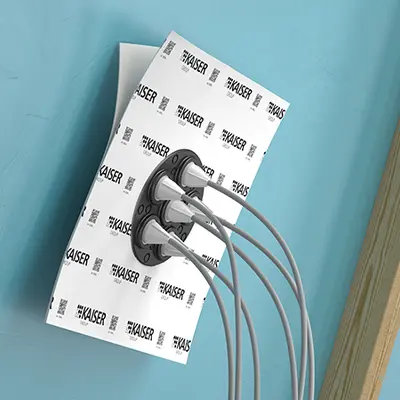

…glue the sleeve in position and thoroughly smooth it onto the surface, working from the inside to the outside.
…glue the sleeve in position and thoroughly smooth it onto the surface, working from the inside to the outside.

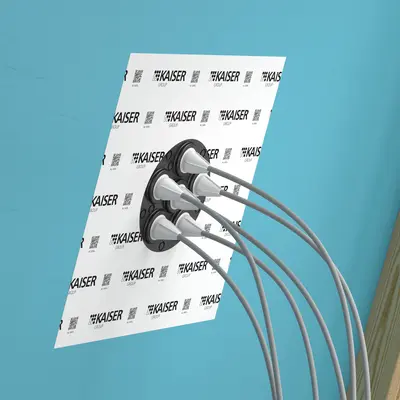

The sleeves guarantee permanent sealing of entries, even when cables are extremely kinked. Retrofitting is easy.
The sleeves guarantee permanent sealing of entries, even when cables are extremely kinked. Retrofitting is easy.

Product advantages

Dimensions / Form

Product length:
320 mm
Product width:
320 mm
Product depth:
30 mm

Connections / Entries

For conduit Ø:
16 mm, 25 mm

Assembly / Installation

Assembly type:
HW (drywall/lightweight construction)
Instruction

Air-tight sleeve

Assembly instructions

1.3 MB | 11/03/2024
Download
Energy efficiency.
Brochure

Energy efficiency.

Electrical installation for energy-saving buildings.

6.1 MB
Electrical installation in timber construction.
Brochure

Electrical installation in timber construction.

Innovative, safe and certified.

2.6 MB
Sealing sleeves
Flyer

Sealing sleeves

Reliable sealing of installation feed-throughs.

2.8 MB
- Der selbstklebende Haftprimer ist wasser- und wärmestandfest und lässt sich zusätzlich z. B. auch auf Styropor, EPS oder XPS einsetzen.
Primer 250 ml, solvent-free
Artikel-No. 9000-02
  • The self-adhesive primer is water and heat resistant. It can also be used on Styrofoam, EPS, XPS etc.
See more
