HWD B15 cavity wall box for shipbuilding walls

Videos for this Produkt

for shipbuilding walls of category B15

Fire protection one-gang junction box for shipbuilding walls B15, fire protection box for cavity walls, designed as a one-gang junction box in accordance with DIN EN 60670/VDE 0606 and DIN 49073, made of plastic, for shipbuilding walls B15, MED and steering wheel approval from DNV, installation opening Ø 60 mm, installation opening Ø 74 mm, combination distance 71 mm, combination with fully insulated straight couplings, depth 54.5 mm, for panel thickness 0.2-40 mm with zero tension technology, with 2 screw domes and 2 plus-minus device screws, entry markings for 4 NYM cables, 4 wire entries 3 x 1.5 mm² each, 3 x 2.5 mm² or 5 x 1.5 mm², protection class IP 30 according to DIN EN 60529, flame-retardant according to DIN EN 60695 up to 850° C, halogen-free according to DIN VDE 0604-2-100, for cavity wall installation

Read more Read less

HWD B15 one-gang junction box for thin boarding

Kaiser GmbH & Co.KG

Artikel-No.: 9464-14

EAN: 4013456535701

Halogen-free

Wheelmark

DNV

Product Ø: 74 mm

Product depth: 54.5 mm

Installation opening (wall/ceiling) Ø: 74 mm

Number of entries: 4

Min. panel thickness: 0.2 mm

Panel thickness max.: 40 mm

Drill/cut hole Ø: 74 mm

Halogen-free: Yes

Packaging / Shipping: 10 / 100

Price (MSRP) / 1 ST:

€26.00

Price group: 192

More product details

Datasheet (PDF)

accessories

- zur vollisolierten Durchverdrahtung bei Kombinationen
- zur Erstellung luftdichter Kombinationen
- für Art.-Nr. 9066-01/-12, 9068-01, 9263-.., 9264-.., 9062-02/-77, 9062-94/-74, 9268-94/-74, 9266-22/-77

Support connector, air-tight, halogen-free

Artikel-No. 9060-78

For fully insulated through-wiring in combinations
to make air-tight combinations
for Art. Nos. 9066-01/12, 9068-01, 9263-..., 9264-… , 9062-02/-77, 9062-94/-74, 9268-94/-74, 9266-22/-77

- zur Erweiterung bestehender Installationsöffnungen von Ø 68 mm auf Ø 74 mm
- exakte Führung für KAISER Hohlwandfräser PROFI
- für ein- und mehrlagig beplankte Leichtbauwände und -decken

Centering insert 68/74

Artikel-No. 1083-99

for expanding existing installation openings from Ø 68 mm to Ø 74 mm
precise guide for KAISER PROFI cavity wall cutter
for single and multi-layer boarded lightweight walls and ceilings

tools

Universal opening cutter for plastics

Universal opening cutter for plastics

Artikel-No. 1085-80

for manufacture of exact entry size
for low-voltage wiring of Ø 4 - 7.5 mm
for sheathed cabling up to 5 x 2.5 or 7 x 1.5
for cable NYY up to 5 x 2.5
for DIN EN conduits (flexible) with outer Ø of up to 20/25 mm
with 1/4" chuck size for battery-powered drills

recommendations

- für Schiffbauwände der Trennflächen-Kategorie B15

One-gang box HWD B15

Artikel-No. 9463-15

for shipbuilding walls of category B15

- für Schiffbauwände der Trennflächen-Kategorie B15

HWD B15 one-gang box for thin boarding

Artikel-No. 9463-14

for shipbuilding walls of category B15

- für Schiffbauwände der Trennflächen-Kategorie B15

One-gang junction box HWD B15

Artikel-No. 9464-15

for shipbuilding walls of category B15

- für Schiffbauwände der Trennflächen-Kategorie B15

One-gang box HWD B15 for thin boarding 40 mm

Artikel-No. 9461-14

for shipbuilding walls of category B15

similar

- für Schiffbauwände der Trennflächen-Kategorie B15

One-gang junction box HWD B15

Artikel-No. 9464-15

for shipbuilding walls of category B15

Product Information

HWD B15 cavity wall box for shipbuilding walls

HWD B15 cavity wall box for category B15 partitions reacts to a fire very quickly. The integrated fire-retardant coating intumesces and reliably seals the installation opening. The HWD B15 cavity wall boxes protect against fire and smoke in the fire-protection zone and preserve the B15 function of the fire-protection wall for at least 30 minutes of flames.

For category B15 partitions
Encasing is not necesssary
With fire-protection cover, can be used as a junction box
Retrofitting also possible

Certified and designed for fast installation

Expensive and time-consuming encasing, i.e. metal, is avoided with the HWD B15 cavity wall box. The user is guaranteed a certified and fast installation.

Installation in mineral-based walls

In walls with mineral-based materials, working with the cutter (Art. No. 1082-40) is quick and simple. It cuts the required Ø 74 mm wall hole and creates the basis for an exact box installation that is flush to the wall.

In walls with mineral-based materials, working with the cutter (Art. No. 1082-40) is quick and simple. It cuts the required Ø 74 mm wall hole and creates the basis for an exact box installation that is flush to the wall.

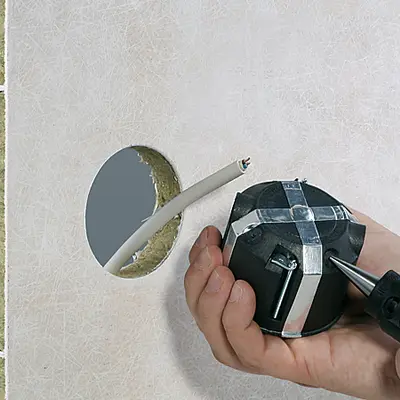

Occupancy can be for a max. of four entries of up to Ø 13 mm as well as for flame-retardant cables in accordance with UL-VO. Use the KAISER universal opening cutter (Art. No. 1085-80) to cut the openings for the cable entry.

Occupancy can be for a max. of four entries of up to Ø 13 mm as well as for flame-retardant cables in accordance with UL-VO. Use the KAISER universal opening cutter (Art. No. 1085-80) to cut the openings for the cable entry.

Fit the HWD B15 cavity wall box in the wall using FX⁴ screws.

Fit the HWD B15 cavity wall box in the wall using FX⁴ screws.

For board thicknesses from 0.2 to 40 mm.

For board thicknesses from 0.2 to 40 mm.

Installation in metal-covered walls

Cut the installation opening in metal plates with the cutter (Art. No. 1086-74).

Cut the installation opening in metal plates with the cutter (Art. No. 1086-74).

Open the cable entry with the KAISER universal opening cutter (Art. No. 1085-80).

Open the cable entry with the KAISER universal opening cutter (Art. No. 1085-80).

Fit the HWD B15 cavity wall box in the wall using FX⁴ screws.

Fit the HWD B15 cavity wall box in the wall using FX⁴ screws.

For thin boarding, one-gang boxes and one-gang junction boxes attached by straps are available for a clamping range of 0.2 mm and higher.

For thin boarding, one-gang boxes and one-gang junction boxes attached by straps are available for a clamping range of 0.2 mm and higher.

Combinations

It is very easy to combine one-gang junction boxes. After cutting the cutting holes (Ø 74 mm) at a standard distance (71 mm), remove the marked area of the holding ring.

It is very easy to combine one-gang junction boxes. After cutting the cutting holes (Ø 74 mm) at a standard distance (71 mm), remove the marked area of the holding ring.

The fully-insulated through-wiring of one-gang junction boxes with each other is created using the support connector (Art. No. 9060-78).

The fully-insulated through-wiring of one-gang junction boxes with each other is created using the support connector (Art. No. 9060-78).

Technical Data

Dimensions / Form

Product Ø:: 74 mm
Product depth:: 54.5 mm
Installation opening (wall/ceiling) Ø:: 74 mm
Drill/cut hole Ø:: 74 mm

Connections / Entries

Number of entries:: 4

Assembly / Installation

Min. panel thickness:: 0.2 mm
Panel thickness max.:: 40 mm

Safety / Properties

Halogen-free:: Yes
Special application:: Fire protection

Technical Information

Conformity declaration

Declaration on conformity HWD B15
