Locking plugs nickel-plated brass flameproof enclosure Ex d IIC
Thread:
M12x1.5
Spanner size:
15 mm
Thread type:
metric
clamp technology:
Compression technology
Product type:
closing screw
Protection class:
IP68
Protection class with condition:
IP 68 (30 bar)
Explosion-proof design:
Yes
EX zone:
Gas 1 and 2 - Dust 21 and 22
Gas:
II 2G Ex db eb IIC Gb
Dust:
Ex Series 18 D
Test standard:
IEC EN 60079-0, IEC EN 60079-1, IEC EN 60079-31
Shipping:
10
Price (MSRP) / 100 ST:
€605.00
Price group:
530
Dimensions / Form
- Thread:
- M12x1.5
- Spanner size:
- 15 mm
- Dimension H:
- 5 mm
- Thread length L:
- 15 mm
Connections / Entries
- clamp technology:
- Compression technology
Features
- Thread type:
- metric
- Product type:
- closing screw
Approvals / Certifications
- Protection class:
- IP68
- Protection class with condition:
- IP 68 (30 bar)
- Explosion-proof design:
- Yes
- EX zone:
- Gas 1 and 2 - Dust 21 and 22
- Gas:
- II 2G Ex db eb IIC Gb
- Dust:
- Ex Series 18 D
- Test standard:
- IEC EN 60079-0, IEC EN 60079-1, IEC EN 60079-31

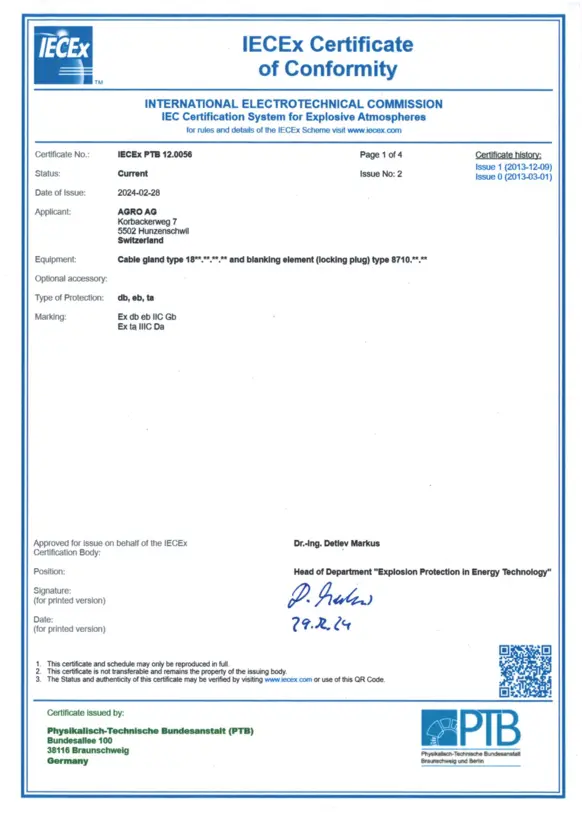

- IECEx certification:
- IECEx PTB 12.0056

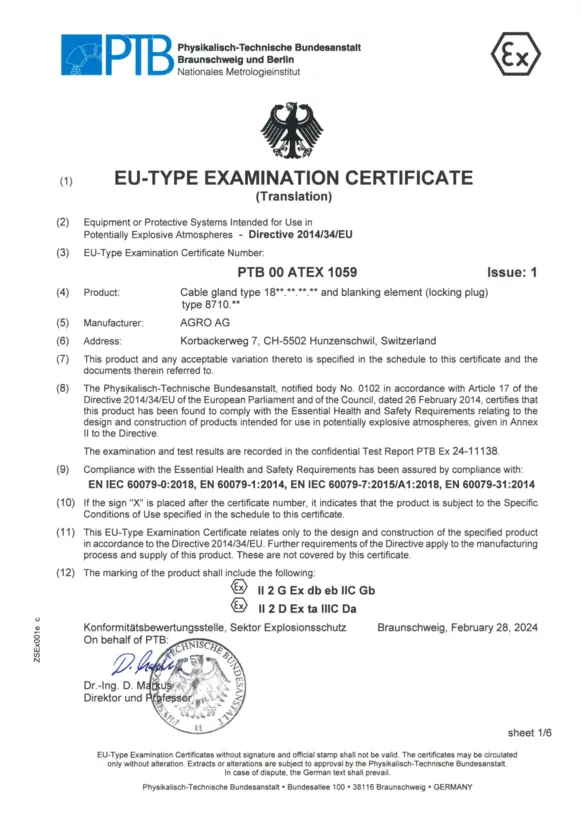

- Further certifications:
- PTB 00 ATEX 1059
- Connectivity certification:
- PTB 00 ATEX 1059
Storage / Installation / Operation
- Minimum operating temperature:
- -40 °C
- Maximum operating temperature:
- 100 °C
