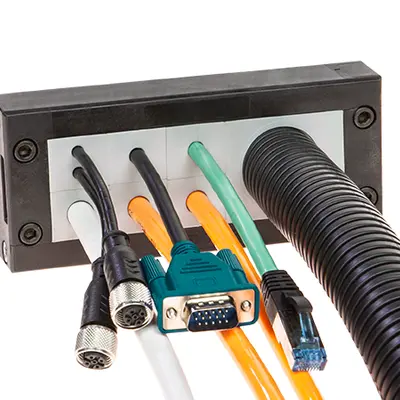

The 1914.24M splittable frame series allow up to 40 cables with or without connector or one or two cables up to 35mm diameter to pass through electric cabinet or machine walls. The small and big grommets can be freely positioned inside the frame. This frame is the base structure for the expandable MX version.
- Multiple configurations in the same frame
- Frame screws in AISI304 Stainless Steel
- External gasket included
- High pull-out forces according to EN 62444
- Robust construction IK10
- Colour black
