Sound-insulation box 68
Sound insulation value R'w up to 69 dB
Open Cadenas Modal
  • for sound insulation walls
  • also for directly opposing installation
  • minimum wall thickness 125 mm
  • combinable with each other and with the one-gang box

Sound insulation device one-gang junction box for sound insulation walls, sound insulation box for cavity walls, designed as a one-gang junction box in accordance with DIN EN 60670/VDE 0606 and DIN 49073, made of plastic, with sound-absorbing haptics and additional external component in the box base area, for sound insulation walls up to 69dB, installation opening Ø 60 mm, installation opening Ø 68 mm, depth 61 mm, combination distance 71 mm, combination with fully insulated straight couplings, for panel thicknesses 7-40 mm, with 2 screw domes and 2 plus-minus device screws, entry markings for 6 electric cables Ø 4-11.5 and 2 conduit entries up to 25 mm, protection class IP30, halogen-free in accordance with DIN VDE 0604-2-100
Read more Read less

One-gang junction box sound insulation 68

Kaiser GmbH & Co.KG
Artikel-No.: 9069-04
EAN: 4013456547940
Halogen-free
VDE
OEVE
Product Ø: 68 mm
Product depth: 61 mm
Installation opening (wall/ceiling) Ø: 68 mm
Number of entries: 4
For conduit Ø: 20 mm, 25 mm
Min. panel thickness: 40 mm
Panel thickness max.: 40 mm
Drill/cut hole Ø: 68 mm
Sound insulation walls up to: 69
Halogen-free: Yes
Packaging / Shipping: 10 / 100
Price (MSRP) / 1 ST:
€10.80
Price group: 192
More product details
Datasheet (PDF)

accessories

Sound insulation value R'w up to 56 dB
- für Schallschutzdose - Schallschutzfunktion in Verbindung mit Schallschutzdose
Sound insulation cover for sound insulation box
Artikel-No. 1184-69
  • for sound insulation box
  • Sound insulation function in conjunction with sound insulation box
See more
- zur vollisolierten Durchverdrahtung bei Kombinationen - für Art.-Nr. 1159-90, 1555-51, 9069-03, 9069-04 und 9074-03
Support connector
Artikel-No. 9060-88
  • For fully insulated through-wiring in combinations
  • For Art. Nos. 1159-90, 1555-51, 9069-03, 9069-04 and 9074-03
See more
- zuverlässiges Abdichten von Elektro-Installationsrohren - ECON®-Technik zur einfachen Leitungsdurchführung - dauerelastischer Kunststoff
Sealing plug ECON® M16
Artikel-No. 1040-16
  • for sealing electrical installation conduits
  • ECON® technology for easy cable entry
  • permanently flexible plastic
See more
- zuverlässiges Abdichten von Elektro-Installationsrohren - ECON®-Technik zur einfachen Leitungsdurchführung - dauerelastischer Kunststoff
Sealing plug ECON® M20
Artikel-No. 1040-20
  • for sealing electrical installation conduits
  • ECON® technology for easy cable entry
  • permanently flexible plastic
See more
- zuverlässiges Abdichten von Elektro-Installationsrohren - ECON®-Technik zur einfachen Leitungsdurchführung - dauerelastischer Kunststoff
Sealing plug ECON® M25
Artikel-No. 1040-25
  • for sealing electrical installation conduits
  • ECON® technology for easy cable entry
  • permanently flexible plastic
See more

tools

- für längere Leitungsstücke integriertes Messer für Längsschnitt - leichtes Arbeiten durch ergonomische Gestaltung - Schneidemesser gehärtet und geschliffen
AMZ 2 stripping pliers
Artikel-No. 1190-02
  • for longer cables: integrated knife for longitudinal cutting
  • ergonomic design - easy-to-use
  • hardened and polished cutting knife
See more

recommendations

Sound insulation value R'w up to 69 dB
- für Schallschutzwände - auch für den direkt gegenüberliegenden Einbau - ab Wandstärke 100 mm - kombinierbar untereinander und mit der Geräte-Verbindungsdose
One-gang box sound insulation 68
Artikel-No. 9069-03
  • for sound insulation walls
  • also for directly opposing installation
  • minimum wall thickness 100 mm
  • can be combined with each other and with the one-gang junction box
See more

Sound-insulation box 68

Thanks to their solid box body in combination with the sound-absorbing surface on the base of the box, sound insulation 68 one-gang and one-gang junction boxes guarantee the wall's sound insulation. This function is completely maintained even with directly opposing installation. The easy opening process and the 68 mm installation opening ensure fast mounting and also easy retrofitting in existing electrical installations.
  • Maintains the wall's sound insulation protection
  • Also for retrofitting
  • For Ø 68 mm installation openings
  • For a directly opposing installation
  • Easy entry for cables up to Ø 11.5 mm and conduits up to Ø 25 mm

Examples of use

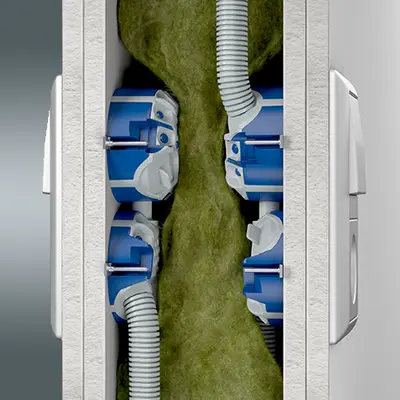

For sound insulation walls with a sound insulation value of up to 69 dB.
For sound insulation walls with a sound insulation value of up to 69 dB.

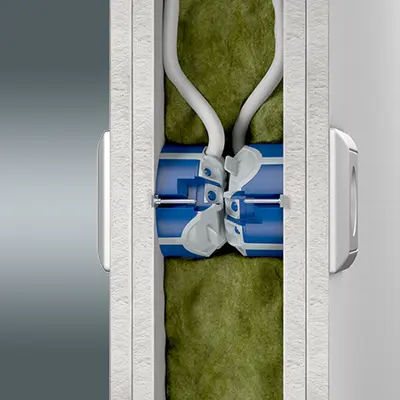

Also for directly opposing installation up to a 5-way combination.
Also for directly opposing installation up to a 5-way combination.

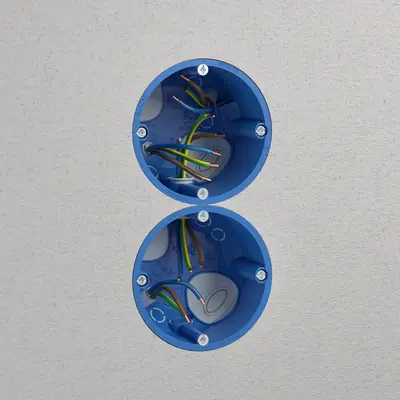

Can be combined with one-gang and one-gang junction boxes.
Can be combined with one-gang and one-gang junction boxes.

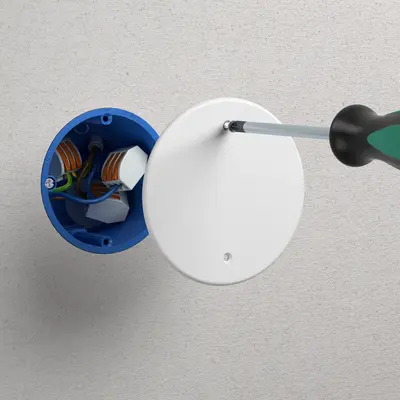

With a sound insulation cover (Art. No. 1184-69), it can also be used as a junction box.
With a sound insulation cover (Art. No. 1184-69), it can also be used as a junction box.

Comparison of sound insulation

Lightweight wall (2-layer, each triple-boarded)
Comparison of sound insulation
(1) Wall, without installations, 69 dB. | (2) Sound insulation box 9069-03, single, with accessory, 69 dB. | (3) Sound insulation box 9069-04, single, with accessory, 69 dB. | (4) The solid box body and the sound-absorbing surface on the base of the box guarantee sound insulation up to 69 dB. | (5) Sound-absorbing strips on the box edge to reduce structure-borne sound. | (6) Easy opening of the conduit entry by means of pre-defined opening tab.

Processing instructions

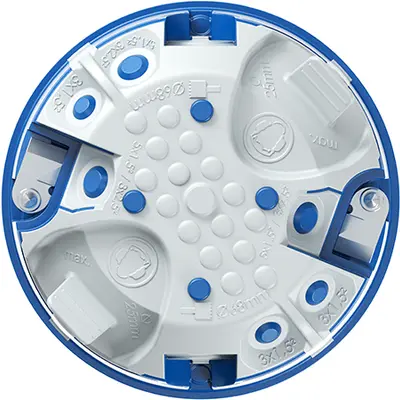

Up to 6 Ø 4 - 11.5 mm cable entries and 2 conduit entries up to M25.
Up to 6 Ø 4 - 11.5 mm cable entries and 2 conduit entries up to M25.

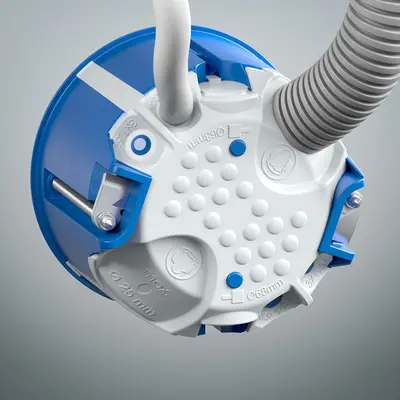

Easy cable and conduit entry with cable retention acc. to DIN EN 60670.
Easy cable and conduit entry with cable retention acc. to DIN EN 60670.
Easy opening of the conduit entry by means of pre-defined opening tab.
Easy opening of the conduit entry by means of pre-defined opening tab.

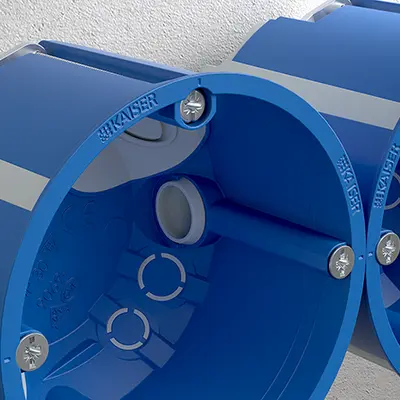

Fully-insulated through-wiring of one-gang and one-gang junction boxes using the support connector (Art. No. 9060-88).
Fully-insulated through-wiring of one-gang and one-gang junction boxes using the support connector (Art. No. 9060-88).

Installation

Cut Ø 68 mm installation opening using PROFI cutter (Art. No. 1081-10). Cut combinations with a centre distance of 71 mm.
Cut Ø 68 mm installation opening using PROFI cutter (Art. No. 1081-10). Cut combinations with a centre distance of 71 mm.
Easy opening for the installation of data and power cables or electrical installation conduits.
Easy opening for the installation of data and power cables or electrical installation conduits.
Fix the box using tried-and-tested KAISER FX⁴ technology.
Fix the box using tried-and-tested KAISER FX⁴ technology.
Opposing installation - possible for one-gang boxes with a minimum wall thickness of 100 mm and one-gang junction boxes for a minimum of 125 mm.
Opposing installation - possible for one-gang boxes with a minimum wall thickness of 100 mm and one-gang junction boxes for a minimum of 125 mm.
For combinations, create installation openings Ø 68 mm in centre distance 71 mm.
For combinations, create installation openings Ø 68 mm in centre distance 71 mm.
Conduit entry ensures tighter fit of the conduits to the boarding.
Conduit entry ensures tighter fit of the conduits to the boarding.
Ensure fully-insulated through-wiring by using support connector (Art. No. 9060-88).
Ensure fully-insulated through-wiring by using support connector (Art. No. 9060-88).
One-gang boxes and one-gang junction boxes can be combined.
One-gang boxes and one-gang junction boxes can be combined.

Dimensions / Form

Product Ø:
68 mm
Product depth:
61 mm
Installation opening (wall/ceiling) Ø:
68 mm
Drill/cut hole Ø:
68 mm

Connections / Entries

Number of entries:
4
For conduit Ø:
20 mm, 25 mm

Assembly / Installation

Min. panel thickness:
40 mm
Panel thickness max.:
40 mm
Assembly type:
HW (drywall/lightweight construction)

Safety / Properties

Sound insulation walls up to:
69
Halogen-free:
Yes
Special application:
sound insulation
Sound insulation:
Yes

Approvals / Certifications

VDE:
Yes
