PROFI cutter

The new PROFI cutter is the ideal tool for creating installation openings in drywalls. The fine saw teeth and precise drilling diameter are perfectly matched to the installation of KAISER boxes. The innovative trilo geometry of the cutter head ensures an improved operating life. In combination with the new centring drill, the drilled core can be reliably ejected, enabling fast work.
  • Longer service life due to new cutting edge geometry
  • Faster installation thanks to reliable drilled core ejection
  • With holder, centring drill, countersink hole cutter and drilled core ejector
  • Specially for plasterboard, softwood and plywood boards
  • Unique triangular-round cutter geometry for maximum hole precision

Application examples

Plasterboard
Plasterboard
Plywood board
Plywood board
Softwood
Softwood
PVC
PVC

Technical information

Optimised cutting performance thanks to the innovative trilo geometry of the cutter head.
Optimised cutting performance thanks to the innovative trilo geometry of the cutter head.
PROFI cutter including holder, centring drill, spring and countersink hole cutter.
PROFI cutter including holder, centring drill, spring and countersink hole cutter.
PROFI cutter for optimum installation openings in drywall walls and ceilings with plasterboard boarding.
PROFI cutter for optimum installation openings in drywall walls and ceilings with plasterboard boarding.
Exact openings enable the professional installation of cavity wall boxes.
Exact openings enable the professional installation of cavity wall boxes.

Dust extraction - Application examples

Cleanliness during ceiling installation, e. g. for spotlights, especially when retrofitting.
Cleanliness during ceiling installation, e. g. for spotlights, especially when retrofitting.
Using the extraction system prevents the release of hazardous dust and increases the operating life of the cutter head.
Using the extraction system prevents the release of hazardous dust and increases the operating life of the cutter head.

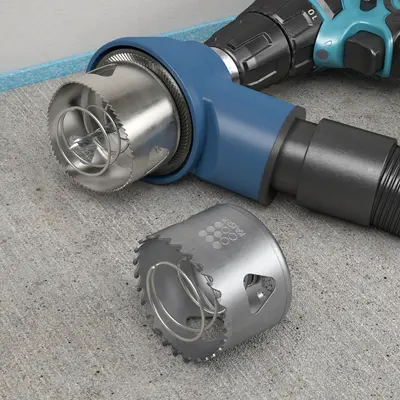

Dust extraction is compatible with the PROFI and EXPERT Ø 68 / 74 mm cutter heads.
Dust extraction is compatible with the PROFI and EXPERT Ø 68 / 74 mm cutter heads.

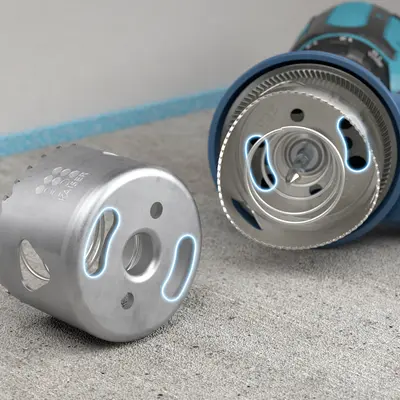

The special contour in the cutter heads enables reliable extraction of drilling dust.
The special contour in the cutter heads enables reliable extraction of drilling dust.

Quick ejector – Operation

Create drill hole.
Create drill hole.
Drilled core remains in the cutter head.
Drilled core remains in the cutter head.
Push out and remove the drilled core using the push handle.
Push out and remove the drilled core using the push handle.
Push the push handle back to the starting position.
Push the push handle back to the starting position.

Dimensions / Form

Product Ø:
68 mm
Installation opening (wall/ceiling) Ø:
68 mm
Drill/cut hole Ø:
68 mm
Drilling/cut hole depth:
32 mm

Features

With edge countersink:
Yes
With ejector:
Yes
With the triangle, it's all round now. Trilo - the new generation of cutters.
Flyer

With the triangle, it's all round now. Trilo - the new generation of cutters.

243.2 KB
