Telescope equipment carrier and switch box
Open Cadenas Modal
  • for secure fixing of sockets and much more
  • for use with external insulation of walls and ceilings
  • with 2 screw domes
  • Standardised combination distance 71 mm

Telescope switch box for mechanically secure and thermal bridge-free installation in insulated exterior walls, telescope switch box made of plastic, thermal bridge-free design in accordance with DIN 18015-5, for installation in insulated exterior walls, switch box dimensions (L x W x D) 68 x 70 x 50 mm, with break-out side walls for connection to combination one-gang boxes (1159-62), insulation thickness adjustable 80-200 mm, with dimension specifications on the carrier arm, flame-retardant in accordance with DIN EN 60695 up to 650° C, halogen-free in accordance with DIN VDE 0604-2-100, for installation in insulated facades
for 20 mm conduits and NYM cables (3 x 1.5 mm², 5 x 1.5 mm² or 3 x 2.5 mm², 5 x 2.5 mm² or 5 x 7.5 mm², low voltage), with 2 screw domes
Read more Read less

Telescope switch box

AGRO AG
Artikel-No.: 1159-61
EAN: 4013456537057
Halogen-free
Product length: 68 mm
Product width: 70 mm
Product depth: 50 mm
Number of entries: 4
For conduit Ø: 20 mm
Min. insulation thickness: 80 mm
Insulation thickness max.: 200 mm
Halogen-free: Yes
Shipping: 10
Price (MSRP) / 100 ST:
€2,575.00
Price group: 180
More product details
Datasheet (PDF)

accessories

- für Kombinationen mit Teleskop-Gerätedose (Art.-Nr. 1159-61)
Combination one-gang box
Artikel-No. 1159-62
  • for combinations with telescope switch box (Art. No. 1159-61)
See more

tools

- für längere Leitungsstücke integriertes Messer für Längsschnitt - leichtes Arbeiten durch ergonomische Gestaltung - Schneidemesser gehärtet und geschliffen
AMZ 2 stripping pliers
Artikel-No. 1190-02
  • for longer cables: integrated knife for longitudinal cutting
  • ergonomic design - easy-to-use
  • hardened and polished cutting knife
See more

recommendations

- bei Außendämmung von Wänden - zur sicheren Befestigung von Sprechanlagen, Schaltern, Steckdosen u. v. m. - erweiterbar durch Aufstockelement um je 100 mm (max. 360 mm) - mit Steinwollzuschnitt zum Ausfüllen des Geräteträgers
Universal equipment carrier with combination insert
Artikel-No. 1159-26
  • for use with externally-insulated walls
  • For secure mounting of intercoms, switches, sockets and many more
  • Can be extended in steps of 100 mm using extension element
  • With pre-cut rock wool parts through which the equipment carrier can be fed
See more
- Anpassung an Dämmstärke in 10 mm Schritten möglich - inklusive 2 Schraubdübel - Isolationsmaterial: Neopor - Verarbeitungstemperatur: -5 °C / + 60 °C
System equipment carrier 160-240 mm with multiple accessory insert for boxes
Artikel-No. 9966.31
  • Adaptation to insulation thickness possible in 10 mm steps
  • Including 2 screw dowels
  • Insulation material: Neopor
  • Processing temperature: -5 °C / + 60 °C
See more

Telescope equipment carrier and switch box

For the safe installation of luminaires, motion detectors and many other accessories in and on insulated facades. Optimised for the latest insulation thicknesses, the telescopic products permit a wide range of applications in external faces with insulation thicknesses from 80 to 200 mm. The two conduit entries on the basic carrier guarantee secure conduit connection. The cable routing which is integrated in the carrier arm ensures a fast, easy cable pull-in.
  • Stable fit to walls and ceilings
  • For insulation thicknesses from 80 to 200 mm
  • Equipment carriers for accessories up to max. 5 kg
  • One-gang boxes can be combined with a standardised 71 mm combination distance
  • Conduit entries on the carrier with internal cable routing
  • Integrated indicated dimension allows easy cutting off to insulation thickness
  • Front fixing and depth stop prevent incorrect installation
  • Front fixing of the mounting plate/one-gang box

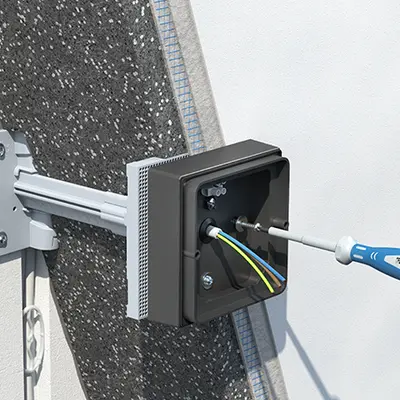

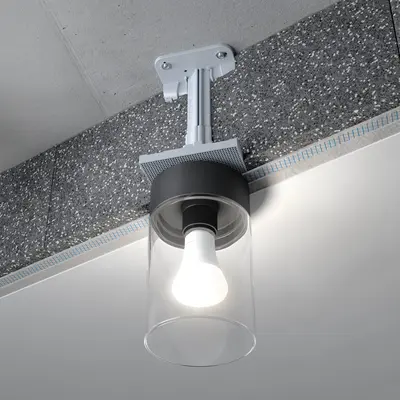

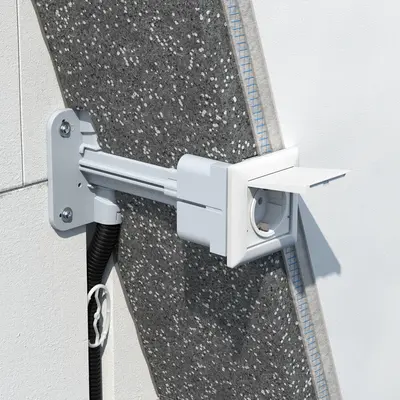

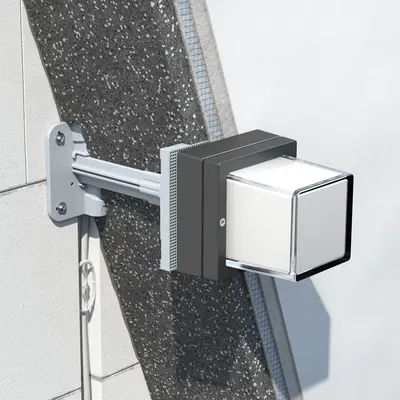

Examples of use

Heat bridge calculation / weight-bearing load

A heat bridge analysis produced by the Passivhaus Institut Dr. Feist, Darmstadt, showed that heat conductivity is only changed to a negligible extent and consequently it is demonstrated that no heat bridges result. When the space between the basic carrier and mounting plate / one-gang box is filled with insulating material, the loss coefficient "x WB" for the telescope equipment carrier is 0.0085 W/K, and 0.0077 W/K for the telescope switch box.
Telescope equipment carrier
Telescope equipment carrier
Telescope switch box
Telescope switch box

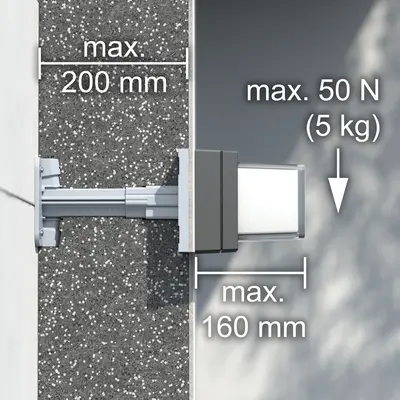

When fitting an equipment carrier to a wall, ensure that the cable entries are positioned vertically.
When fitting an equipment carrier to a wall, ensure that the cable entries are positioned vertically.

Installing the basic carrier

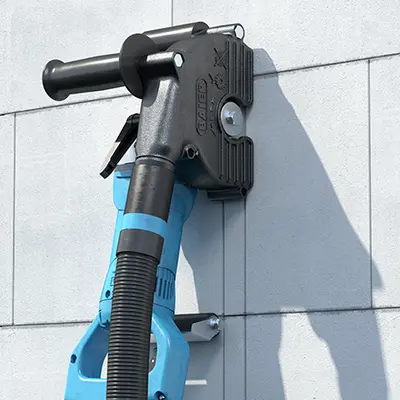

Prepare the cable routes. Try to avoid direct cable routing through masonry and insulation.
Prepare the cable routes. Try to avoid direct cable routing through masonry and insulation.
The internal cable routing can easily be broken off to permit cable routing from the rear.
The internal cable routing can easily be broken off to permit cable routing from the rear.
Saw the carrier to the required length. The integrated indicated dimension ensures exact reading of the dimension.
Saw the carrier to the required length. The integrated indicated dimension ensures exact reading of the dimension.

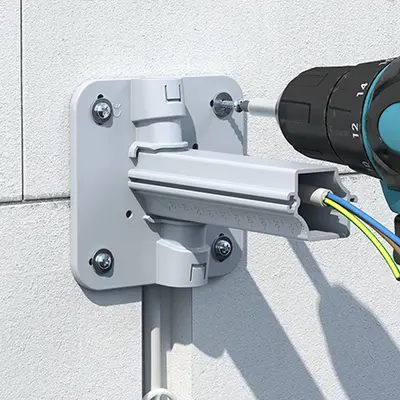

Slotted holes allow precise alignment even when the drill holes are not exact.
Slotted holes allow precise alignment even when the drill holes are not exact.

Installing the equipment carrier

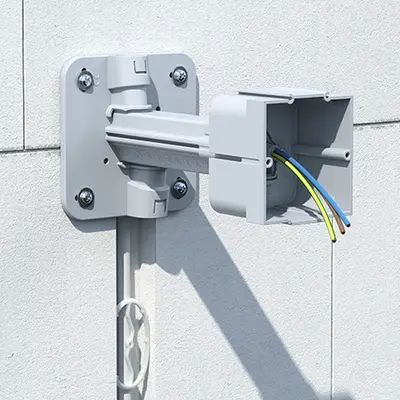

Push the one-gang box onto the supporting arm as far as the stop.
Push the one-gang box onto the supporting arm as far as the stop.

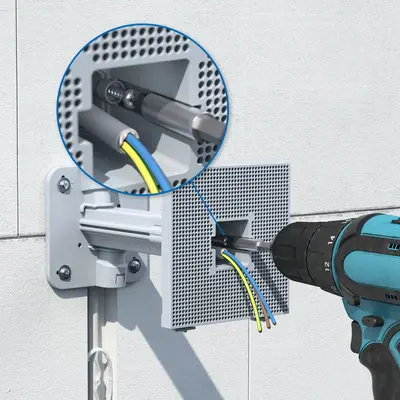

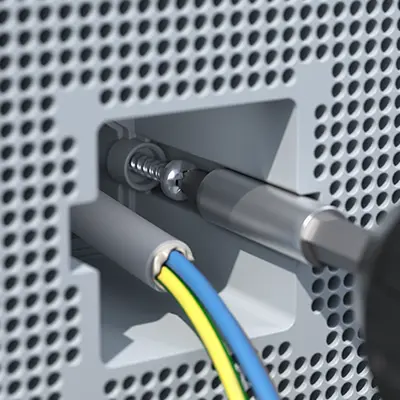

The front fixing and the depth stop always ensure exact fitting and prevent incorrect installation.
The front fixing and the depth stop always ensure exact fitting and prevent incorrect installation.
Side fixings allow the secure positioning of several equipment carriers next to each other…
Side fixings allow the secure positioning of several equipment carriers next to each other…
…and stable installation for accessories when the attachment points are far apart.
…and stable installation for accessories when the attachment points are far apart.

Installing the one-gang box

Push the one-gang box onto the supporting arm as far as the stop.
Push the one-gang box onto the supporting arm as far as the stop.

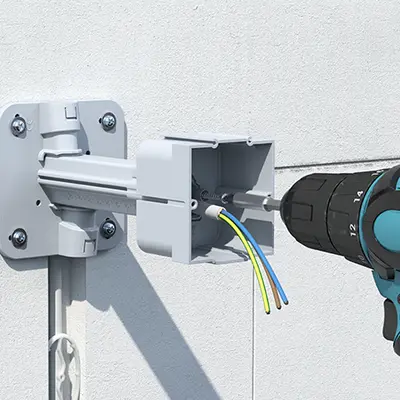

The front fixing and the depth stop always ensure exact fitting and prevent incorrect installation.
The front fixing and the depth stop always ensure exact fitting and prevent incorrect installation.
For multiple combinations, cut out the side separator walls and connect the one-gang boxes.
For multiple combinations, cut out the side separator walls and connect the one-gang boxes.
For multiple combinations, cut out the side separator walls and connect the one-gang boxes.
For multiple combinations, cut out the side separator walls and connect the one-gang boxes.

Product advantages

Dimensions shown on the carrier ensure that the carrier length can easily be sawn off to match the insulation thickness – no need for measuring!
Dimensions shown on the carrier ensure that the carrier length can easily be sawn off to match the insulation thickness – no need for measuring!

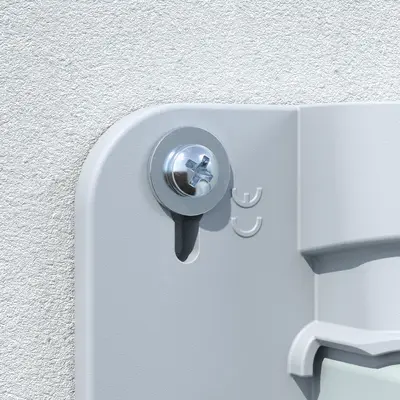

Slotted holes allow precise alignment even when the drill holes are not exact.
Slotted holes allow precise alignment even when the drill holes are not exact.

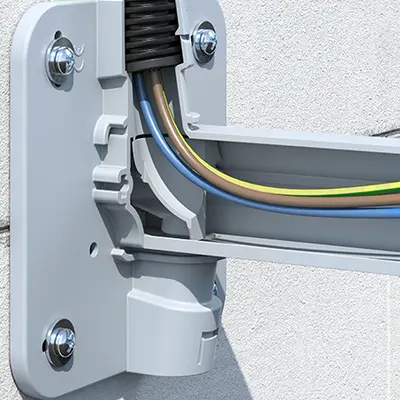

The two conduit entries on the carrier guarantee secure conduit support. The integrated cable routing ensures fast, easy cable insertion.
The two conduit entries on the carrier guarantee secure conduit support. The integrated cable routing ensures fast, easy cable insertion.

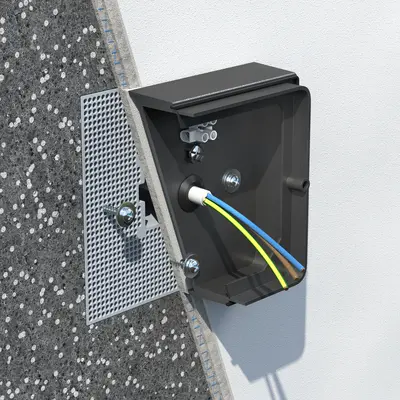

Luminaires and many other accessories are easily fitted in the mounting plate through the plaster using screws up to 4 mm Ø.
Luminaires and many other accessories are easily fitted in the mounting plate through the plaster using screws up to 4 mm Ø.

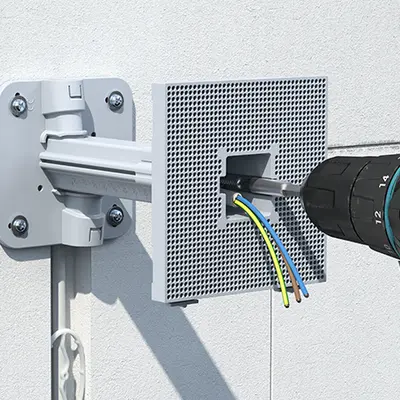

Front fixing of telescope equipment carrier and box

Dimensions / Form

Product length:
68 mm
Product width:
70 mm
Product depth:
50 mm

Connections / Entries

Number of entries:
4
For conduit Ø:
20 mm

Assembly / Installation

Min. insulation thickness:
80 mm
Insulation thickness max.:
200 mm
Assembly type:
ETICS/external insulation

Safety / Properties

Halogen-free:
Yes
Certificate

Teleskop-Geräteträger - Wärmebrückenberechnung

1.7 MB | 21/08/2018
Instruction

Telescope equipment carrier, switch box and combination one-gang box

Assembly instructions

1.3 MB | 26/01/2018
Download
