UP¹ Fix stepless plaster compensation frame

recommendations

UP¹ ECON® Fix one-gang box
Artikel-No. 1055-26
  • More volume than conventional one-gang boxes
  • With quick fixing for installation without plaster
  • With 4 x 3 screw domes
  • Side-neutral combination
  • Many through-wiring possibilities
  • Standardised combination distance 71 mm
Signal cover UP¹ for installation openings Ø 60 mm
Artikel-No. 1181-65
  • Reusable
  • Protects interior of box, screwing dome and screw heads when plastering
Wall groove clip
Artikel-No. 1159-95
  • For laying cables or conduits without plaster
  • Quick fixation in wall grooves from 20 to 55 mm
  • Reduction of assembly time
  • No damage to the cables
  • Optional: use of steel nails Ø 3 mm

UP¹ Fix stepless plaster compensation frame

With the newly developed plaster compensation frame, even accessories in boxes that are installed too low can be installed flush with the wall and in compliance with standards. Also ideal for renovations. The plaster compensation frame is stepless adjustable and can therefore, e.g. bridge retrofitted wall plaster or tiled walls professionally. Due to the stepless immersion into the box, compatibility must be checked prior to installation for devices that take up the maximum installation space, such as SCHUKO sockets with USB charging function, dimmers, etc. Alternatively, the plaster compensation rings 1155-61 or 1155-62 can be used.
  • To compensate for boxes that are positioned too low
  • Continuously adjustable from 10 - 35 mm
  • Installation accessories can be installed directly with the compensation frame or retrofitted
  • Including screws 40 mm, Pozidriv drive

Examples of applications

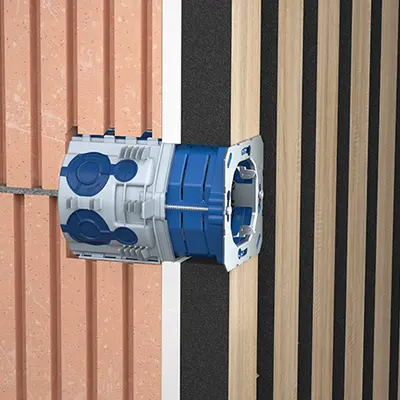

Acoustic panel.
Acoustic panel.

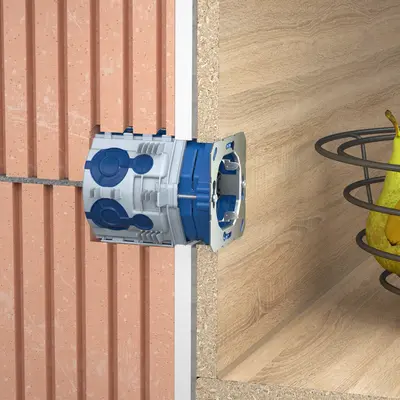

Kitchen wall panel.
Kitchen wall panel.
Thick tiles.
Thick tiles.

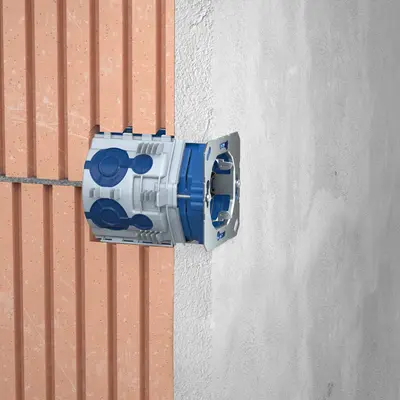

Thick plaster layer.
Thick plaster layer.

Processing instructions

Insert the plaster compensation frame into the box.
Insert the plaster compensation frame into the box.
Either mount the accessory and the plaster compensation frame together on the box with a screw...
Either mount the accessory and the plaster compensation frame together on the box with a screw...
...or first mount the plaster compensation frame and fix the installation accessory later.
...or first mount the plaster compensation frame and fix the installation accessory later.

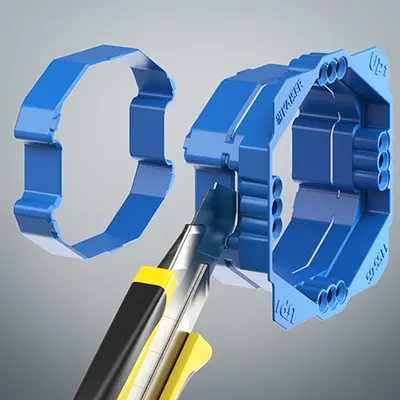

The plaster compensation frame can be shortened in segments if required.
The plaster compensation frame can be shortened in segments if required.

Assembly / Installation

Assembly type:
UP (solid construction)
Conformity declaration

Declaration of conformity

UP¹ ECON® Fix one-gang box including accessories, UP¹ ECON® Fix one-gang junction box including accessories.
51.2 KB | 07/06/2024
Instruction

UP¹ ECON® Fix

Assembly instructions

3.5 MB | 29/11/2024
