UP¹ flush-mounting boxes
1 / 2
Open Cadenas Modal
One-gang junction box with more volume, air-tight with multi-membrane, for flush-mounting/masonry installation,
flush-mounting box, designed as a flush-mounting device junction box in accordance with DIN EN 60670/VDE 0606 and DIN 49073, made of plastic, air-tight design in accordance with DIN 18015-5,
installation opening Ø 60 mm, installation opening Ø 82 mm, depth 66 mm, combination distance 71 mm, with fixing for installation without plaster, protection class IP 20 according to DIN EN 60529, flame-retardant according to DIN EN 60695 up to 650° C, halogen-free in accordance with DIN VDE 0604-2-100, for flush-mounting installation.
Toolless entries for electric cables and EN conduits with a diameter of 20/25 mm (2 x 20 mm/25 mm in both combination surfaces, 4 x 20 mm/25 mm in the side wall), each with segmentations for up to 4 NYM cables 3 x 1.5 mm², 3 x 2.5 mm² or 5 x 1.5 mm², 5 x 2.5 mm² or 7 x 1.5 mm², 4 wire entries up to diameter 11 mm in the side wall, 2 wire entries up to diameter 11 mm in the combination surfaces, 2 wire entries for DIN EN conduits with a diameter of 20/25 mm and 2 wire entries up to diameter 11 mm (3 x 1.5 mm², 3 x 2.5 mm² or 5 x 1.5 mm²) in the box base.
Open through-wiring, fully insulated through-wiring near the base, with 4 x 3 screw domes and 2 expanding claw fields, without device screws
Read more Read less

UP¹ ECON® Fix one-gang junction box

Kaiser GmbH & Co.KG
Artikel-No.: 1555-26
EAN: 4013456587342
Product depth: 66 mm
Installation opening (wall/ceiling) Ø: 82 mm
Number of entries: 16
For conduit Ø: 20 mm, 25 mm
Wire entry Ø max.: 11 mm
Packaging / Shipping: 20 / 200
Price (MSRP) / 100 ST:
€265.00
Price group: 121
More product details
Datasheet (PDF)

accessories

- Zum Ausgleich zu tief sitzender Dosen - Zur Einhaltung der IP-Schutzart - Mit 2 Befestigungsschrauben 40 mm - Kompatibilität bei Installation von großen Einbaugeräten prüfen
UP¹ Fix stepless plaster compensation frame
Artikel-No. 1155-65
  • To compensate for deep-seated boxes
  • To maintain IP protection class
  • With 2 fixing screws 40 mm
  • Check compatibility when installing large built-in appliances
See more
- Mehrmals zu verwenden - Schützen das Doseninnere, die Schraubdome und Schraubenköpfe beim Verputzen
Signal cover UP¹ for installation openings Ø 60 mm
Artikel-No. 1181-65
  • Reusable
  • Protects interior of box, screwing dome and screw heads when plastering
See more
- Für die zusätzliche Fixierung der UP¹ ECON® Fix Dosen - Zur Verarbeitung mit handelsüblichen PU-Schaumpistolen mit M65 Gewindeanschluss - Verwendbar mit Art.-Nr. 1055-26, 1555-26, 1068-26 und 1656-26 - 1-K PU-Schaum - Baustoffklasse E nach EN 13501 (DIN 4102 B2-Qualität) - Feinporige Schaumstruktur - Verarbeitungstemperatur Umgebung -10 °C bis +30°, optimal +20°C, 60% relative Luftfeuchtigkeit (Dosentemperatur mind. +5°C) - Feuchtigkeitshärtend - Klebefrei innerhalb von ca. 10 min - Schneidbar nach ca. 30 min. - Voll belastbar nach ca. 12 h - Temperaturbeständig ausgehärtet von -40 °C bis +80 °C - Lagerfähig bis zu 12 Monate - Bitte Sicherheitsdatenblatt beachten

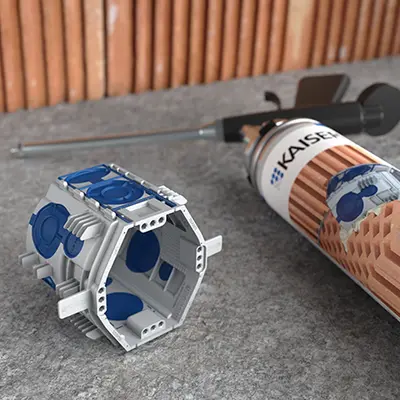

Flush-mounting gun foam
Artikel-No. 1155-95
  • For additional fixing of the UP¹ ECON® Fix boxes
  • For processing with commercially available PU foam guns with M65 threaded connection
  • Can be used with Art. No. 1055-26, 1555-26, 1068-26 and 1656-26
  • 1-component PU foam
  • Building material class E according to EN 13501 (DIN 4102 B2 quality)
  • Fine-pored foam structure
  • Ambient processing temperature -10°C to +30°C, optimum +20°C, 60% relative humidity (box temperature min. +5°C)
  • Humidity curing
  • Adhesive-free within approx. 10 min
  • Can be cut after approx. 30 min.
  • Fully loadable after approx. 12 h
  • Temperature resistant cured from -40 °C to +80 °C
  • Can be stored up to 12 months
  • Please note the safety data sheet
See more
- zum Ausgleich zu tief sitzender Dosen - Zur Einhaltung der IP-Schutzart - Mit 2 eingedrehten Geräteschrauben - mit 2 Ring-Befestigungsschrauben
Plaster compensation ring for one-gang and one-gang junction boxes Ø 60 mm, Height 12 mm
Artikel-No. 1155-61
  • to compensate for deep-seated boxes
  • To maintain IP protection class
  • With 2 screwed-in device screws
  • with 2 ring attachment screws
See more
- zum Ausgleich zu tief sitzender Dosen - Zur Einhaltung der IP-Schutzart - Mit 2 eingedrehten Geräteschrauben - mit 2 Ring-Befestigungsschrauben
Plaster compensation ring for one-gang and one-gang junction boxes Ø 60 mm, Height 24 mm
Artikel-No. 1155-62
  • to compensate for deep-seated boxes
  • To maintain IP protection class
  • With 2 screwed-in device screws
  • with 2 ring attachment screws
See more

tools

- 2 Libellen zum senkrechten und waagerechten Ausrichten - 71 mm für Norm-Kombinationen - 91 mm für getrennte Abdeckungen von Kleinspannungsgeräten - mit gehärteten Bohrbuchsen Ø 6 mm - mit ausklappbarem Führungsstift für die erste Bohrung
Drilling template
Artikel-No. 1190-65
  • 2 spirit levels for vertical and horizontal alignment
  • 71 mm for standard combinations
  • 91 mm for separate covers on low-voltage equipment
  • with hardened drilling bushes Ø 6 mm
  • with fold-out guide pin for first drill hole
See more
- universeller Einsatzbereich - für mittelhartes Mauerwerk - hohe Standzeit - Anschlussgewinde M18 x 1,5 - mit Seitenschlitzen - zum Aufschrauben auf die Direktaufnahme
Diamond grinding head without dust extraction
Artikel-No. 1088-00
  • Universal area of application
  • For medium-hard masonry
  • High service life
  • Entry thread M18 x 1.5
  • with side slits
  • for screwing onto the direct attachment
See more
- universeller Einsatzbereich - für mittelhartes Mauerwerk - hohe Standzeit - Anschlussgewinde M18 x 1,5 - zum Aufschrauben auf die Staubabsaugung
Diamond grinding head with dust extraction
Artikel-No. 1088-02
  • Universal area of application
  • For medium-hard masonry
  • High service life
  • Entry thread M18 x 1.5
  • for screwing onto the dust extraction system
See more
- für Diamant-Schleifkronen Ø 82 oder Ø 68 mm mit Anschlussgewinde M18x1,5 - Staubsauger-Schlauchaufnahme von Ø 31 - 36 mm
Dust extraction with direct attachment
Artikel-No. 1088-21
  • for diamond grinding heads Ø 82 or Ø 68 mm with connection thread M18x1.5
  • Vacuum cleaner hose attachments from Ø 31 - 36 mm
See more
- für Diamant-Schleifkronen Ø 82 oder Ø 68 mm mit Anschlussgewinde M18x1,5 - Staubsauger-Schlauchaufnahme von Ø 31 - 36 mm
Dust extraction with direct attachment
Artikel-No. 1088-16
  • for diamond grinding heads Ø 82 or Ø 68 mm with connection thread M18x1.5
  • Vacuum cleaner hose attachments from Ø 31 - 36 mm
See more
- für Diamant-Schleifkronen Ø 82 oder Ø 68 mm mit Anschlussgewinde M18x1,5 - Staubsauger-Schlauchaufnahme von Ø 31 - 36 mm
Dust extraction with chuck attachment
Artikel-No. 1088-41
  • for diamond grinding heads Ø 82 or Ø 68 mm with connection thread M18x1.5
  • Vacuum cleaner hose attachments from Ø 31 - 36 mm
See more

recommendations

- Variante zum klassischen Setzen mit Gips - Seitenneutrale Kombination - Vielfältige Durchverdrahtung - Mit 4 x 3 Schraubdomen - Norm-Kombinationsabstand 71 mm
UP¹ ECON® Fix one-gang box
Artikel-No. 1055-26
  • More volume than conventional one-gang boxes
  • With quick fixing for installation without plaster
  • With 4 x 3 screw domes
  • Side-neutral combination
  • Many through-wiring possibilities
  • Standardised combination distance 71 mm
See more
- Mit Schnellfixierung für die Montage ohne Gips - Mit 4 x 3 Schraubdomen - Seitenneutrale Kombination - Vielfältige Durchverdrahtung - Norm-Kombinationsabstand 71 mm
UP¹ ECON® Fix electronics box
Artikel-No. 1068-26
  • With quick fixing for installation without plaster
  • With 4 x 3 screw domes
  • Side-neutral combination
  • Many through-wiring possibilities
  • Standardised combination distance 71 mm
See more
- Mit Schnellfixierung für die Montage ohne Gips - Mit 6 x 3 Schraubdomen - Seitenneutrale Kombination - Vielfältige Durchverdrahtung - Norm-Kombinationsabstand 71 mm
UP¹ ECON® Fix two-gang junction box
Artikel-No. 1656-26
  • With quick fixing for installation without plaster
  • With 4 x 3 screw domes
  • Side-neutral combination
  • Many through-wiring possibilities
  • Standardised combination distance 71 mm
See more
- Für das Verlegen von Leitungen oder Rohr ohne Gips - Schnelle Fixierung in Mauerschlitzen von 20 bis 55 mm - Verkürzung der Montagezeit - Keine Beschädigung der Leitungen - Optional: Verwendung von Stahlnägeln Ø 3 mm
Wall groove clip
Artikel-No. 1159-95
  • For laying cables or conduits without plaster
  • Quick fixation in wall grooves from 20 to 55 mm
  • Reduction of assembly time
  • No damage to the cables
  • Optional: use of steel nails Ø 3 mm
See more

UP¹ flush-mounting boxes

UP¹, the new flush-mounting range for electrical installation, takes flush-mounting installation to a new level and makes it easier than ever before. 25% more installation volume compared to conventional flush-mounting one-gang junction boxes enables convenient accommodation of cables, connection terminals and installation accessories. The quick-fixing by means of ribs in all stones ensures up to 50% time savings during installation without plaster. The side-neutral and stable combination quickly allows multiple combinations to be created at a 71 mm centre distance. Thanks to open through-wiring and breakaway bridge, the device connection can be made without spatial separation. Accessories that are already wired, especially sockets, can therefore be installed particularly quickly and easily. The entries close to the base and through-wiring close to the base maximise the usable wiring space and facilitate the installation of the installation accessory due to the low-lying wiring material. Thanks to expanding claw fields and 4 x 3-fold screw domes, fixing the accessory is easier and more flexible than ever before. The new plaster compensation frame enables continuous plaster compensation from 10 to 35 mm with only one accessory.
  • 25% more volume compared to conventional flush-mounted one-gang junction boxes

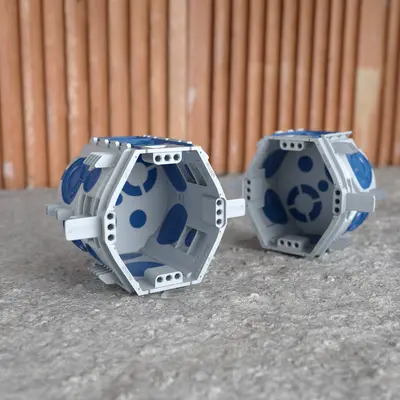

  • Quick mounting in all wall constructions (ribs on the box, no mounting of accessories, use of PU foam is possible)
  • Stable and side-neutral combination
  • Open and diverse through-wiring
  • Fully insulated through-wiring close to the base for deep boxes
  • Entries close to the bottom of the box
  • Triple conduit feed 25 mm from one direction to one-gang and one-gang junction boxes
  • ECON® multi-cable conduit entries
  • 4 triple-screw domes / rows of spreader claws for secure hold
  • Entries in the bottom of the box
  • Stepless plaster compensation (accessories)
  • The product has been tested for harmful substances and can be incorporated into sustainable construction projects using the SHI product passport

Application examples

Vertically perforated bricks with and without filling, solid bricks.
Vertically perforated bricks with and without filling, solid bricks.

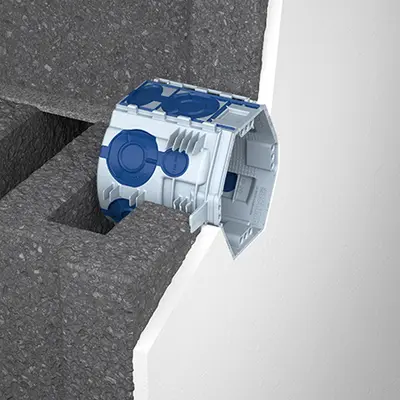

Lightweight concrete.
Lightweight concrete.
Cellular concrete.
Cellular concrete.
Lime sand brick.
Lime sand brick.

Processing instructions

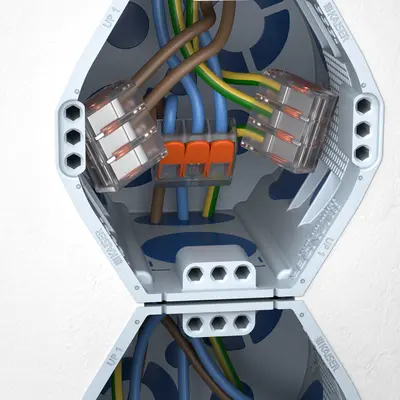

All UP¹ one-gang boxes offer generous installation space for convenient accommodation of cables, connection terminals and installation accessories.
All UP¹ one-gang boxes offer generous installation space for convenient accommodation of cables, connection terminals and installation accessories.

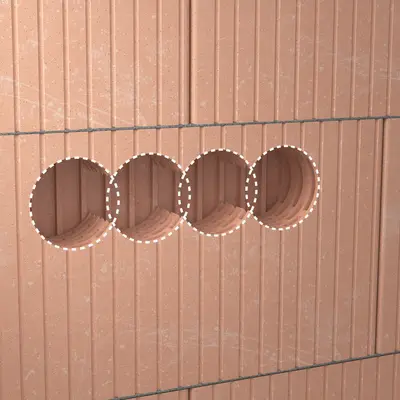

Overlapping box diameters allow for a stable combination and open through-wiring.
Overlapping box diameters allow for a stable combination and open through-wiring.
After plastering, connecting accessories can be implemented in many different ways,...
After plastering, connecting accessories can be implemented in many different ways,...
...this makes it possible, for example, to insert the connecting cables of pre-wired accessories, such as sockets, quickly and easily without having to connect them in the boxes first.
...this makes it possible, for example, to insert the connecting cables of pre-wired accessories, such as sockets, quickly and easily without having to connect them in the boxes first.

Secure connection with the new side-neutral combination

The safe combination with the KAISER side-neutral combination: place the boxes together – no matter which way round – and press them together. Now you have a stable combination with 71 mm standardised combination distance.

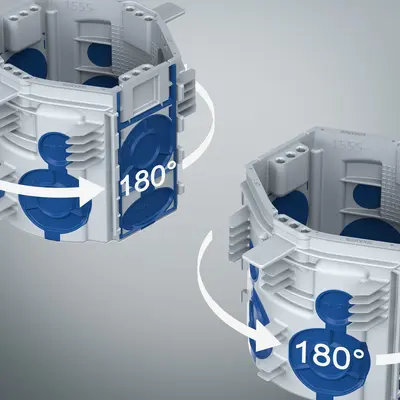

No matter which way the boxes meet...
No matter which way the boxes meet...
...put them together...
...put them together...
...and the boxes lock together stably.
...and the boxes lock together stably.
Stable and side-neutral combination in 71 mm standardised combination distance.
Stable and side-neutral combination in 71 mm standardised combination distance.

Processing instructions – Entries

Due to entries being close to the base, the cable can be stowed directly on the base and take up little space.
Due to entries being close to the base, the cable can be stowed directly on the base and take up little space.
Maximum usable space, thanks to fully insulated through-wiring close to the base.
Maximum usable space, thanks to fully insulated through-wiring close to the base.
Maximum flexibility thanks to three feeds up to M25 from one direction...
Maximum flexibility thanks to three feeds up to M25 from one direction...

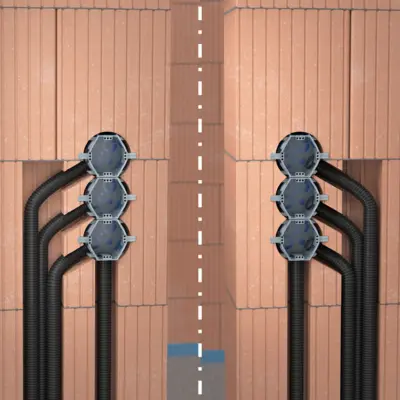

...e.g. next to door openings.
...e.g. next to door openings.
The UP¹ boxes also have entries in the base...
The UP¹ boxes also have entries in the base...
...2 entries each up to Ø 11 mm and 2 entries each up to Ø 25 mm with stiffening against pressure from expanding PU foam.
...2 entries each up to Ø 11 mm and 2 entries each up to Ø 25 mm with stiffening against pressure from expanding PU foam.
All cable and ECON® Multi-Membranes are labelled...
All cable and ECON® Multi-Membranes are labelled...
...this makes it easier to select the optimal entry.
...this makes it easier to select the optimal entry.

Processing instructions for the ECON® Multi-Membrane

The toolless cable and conduit entries reduce installation time and make processing easier.
The toolless cable and conduit entries reduce installation time and make processing easier.
The elastic ECON® Multi-Membrane fits air-tight around the conduit or cable.
The elastic ECON® Multi-Membrane fits air-tight around the conduit or cable.

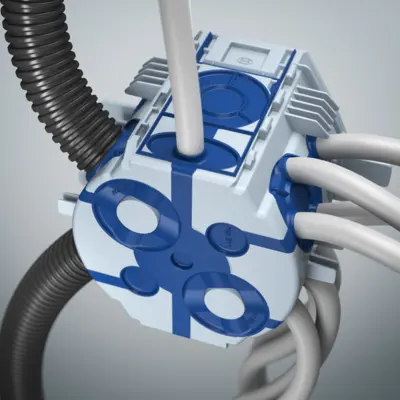

Each cable and conduit diameter up to Ø 25 mm can be installed quickly and air-tight.
Each cable and conduit diameter up to Ø 25 mm can be installed quickly and air-tight.

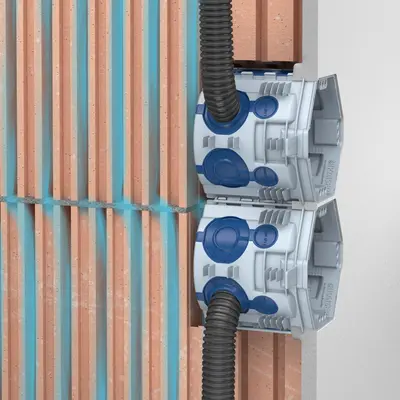

Vertical draughts occur in hollow chamber blocks. The UP¹ boxes with ECON® technology prevent air exchange.
Vertical draughts occur in hollow chamber blocks. The UP¹ boxes with ECON® technology prevent air exchange.

Processing instructions – Combination after plastering

After plastering, connecting accessories can be implemented in four different ways:
After plastering, connecting accessories can be implemented in four different ways:
Classic connection in the middle area of the one-gang junction box...
Classic connection in the middle area of the one-gang junction box...
...or by the fully insulated connection close to the base in the one-gang junction boxes,...
...or by the fully insulated connection close to the base in the one-gang junction boxes,...
...without routing the cable in bends from one box to the other.
...without routing the cable in bends from one box to the other.
Moreover, in the case of permanently installed boxes, it is possible to break out the separator wall between the combined boxes in the upper area simply with a pair of combination pliers by means of a tilting movement...
Moreover, in the case of permanently installed boxes, it is possible to break out the separator wall between the combined boxes in the upper area simply with a pair of combination pliers by means of a tilting movement...
...furthermore, the underlying ECON® Multi-Membrane can be additionally removed for even more wiring space.
...furthermore, the underlying ECON® Multi-Membrane can be additionally removed for even more wiring space.
This makes it possible to insert the connecting cables of pre-wired accessories, such as sockets, quickly and easily without having to connect them in the sockets first.
This makes it possible to insert the connecting cables of pre-wired accessories, such as sockets, quickly and easily without having to connect them in the sockets first.
All UP¹ one-gang boxes offer generous installation space for convenient accommodation of cables, connection terminals and installation accessories.
All UP¹ one-gang boxes offer generous installation space for convenient accommodation of cables, connection terminals and installation accessories.

Electrical installation

The signal bristles indicate the position of the boxes after plastering.
The signal bristles indicate the position of the boxes after plastering.
Open the boxes with one blow of the hammer.
Open the boxes with one blow of the hammer.

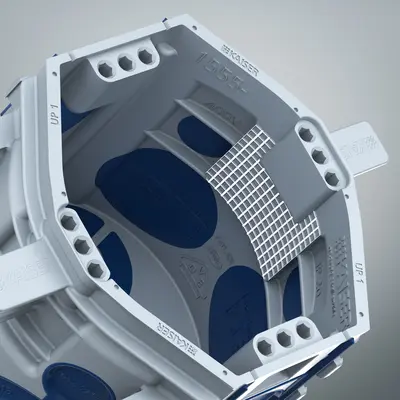

Accessory fixing by means of: expanding claws or...
Accessory fixing by means of: expanding claws or...

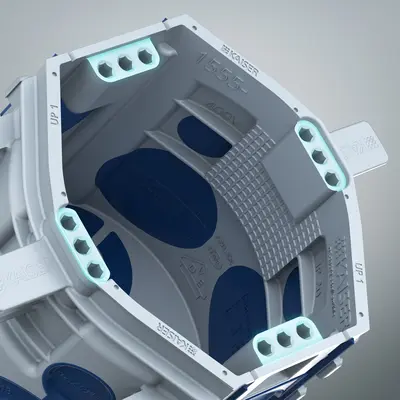

...4 x 3 screw domes for maximum flexibility.
...4 x 3 screw domes for maximum flexibility.

Technical installation instructions

The quick-fixing of the UP¹ ECON® Fix boxes saves up to 50% installation time compared to the conventional installation of flush-mounting boxes with plaster. The box is securely fixed in the wall and held in position before plastering.
  • For fitting boxes without plaster
  • For all common bricks such as lime sand brick, cellular concrete, lightweight concrete, vertically perforated bricks with and without filling
  • Secure, clean and time-saving
  • Alignment and secure mounting even before plastering
  • Can also be used at sub-zero temperatures
  • By plastering the wall and allowing plaster to penetrate into the annular gap around the box, the box is permanently fixed in place
  • For thin plaster, remove the depth stop and additionally fix the boxes with flush-mounting gun foam
  • Not applicable when using clay plaster

Installation advantages – Installation without plaster UP¹ Fix und UP¹ ECON® Fix

The UP¹ Fix family with rib fixing for mounting without plaster.
The UP¹ Fix family with rib fixing for mounting without plaster.
Fixing with ribs on several levels for secure fixing in all stones.
Fixing with ribs on several levels for secure fixing in all stones.

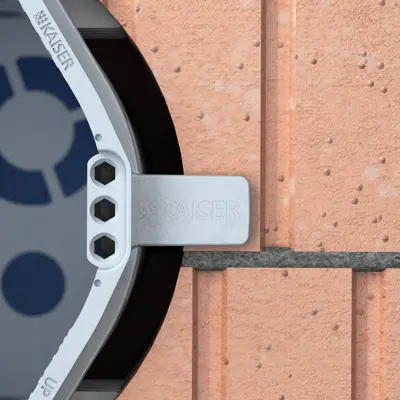

Depth stop to ensure the minimum plaster thickness.
Depth stop to ensure the minimum plaster thickness.
The plaster penetrates between the box and the stone, ensuring that the box is securely and permanently fixed.
The plaster penetrates between the box and the stone, ensuring that the box is securely and permanently fixed.

Installation – Installation without plaster UP¹ Fix und UP¹ ECON® Fix

Make the installation opening Ø 82 mm with the diamond grinding head (Art. No. 1088-02).
Make the installation opening Ø 82 mm with the diamond grinding head (Art. No. 1088-02).
Insert the UP¹ Fix one-gang box or one-gang junction box with ribs.
Insert the UP¹ Fix one-gang box or one-gang junction box with ribs.
Put on the signal cover (Art. No. 1181-65) and plaster the wall.
Put on the signal cover (Art. No. 1181-65) and plaster the wall.
The penetration of the plaster between the box and the stone fixes the box securely and permanently.
The penetration of the plaster between the box and the stone fixes the box securely and permanently.

Installation instructions – Installation with flush-mounting gun foam

Alternatively, the UP¹ ECON® Fix boxes can be fixed with flush-mounting gun foam (Art. No. 1155-95).
Alternatively, the UP¹ ECON® Fix boxes can be fixed with flush-mounting gun foam (Art. No. 1155-95).
Make the installation opening Ø 82 mm with the diamond grinding head (Art. No. 1088-02).
Make the installation opening Ø 82 mm with the diamond grinding head (Art. No. 1088-02).
Spray the wall with water...
Spray the wall with water...
...and insert the UP¹ one-gang box or one-gang junction box with ribs.
...and insert the UP¹ one-gang box or one-gang junction box with ribs.
Pierce the TPE membrane in the centre of the bottom of the box...
Pierce the TPE membrane in the centre of the bottom of the box...
...and foam-in the box.
...and foam-in the box.
If necessary, remove excess foam after curing so that plaster can still penetrate between the box and the stone.
If necessary, remove excess foam after curing so that plaster can still penetrate between the box and the stone.
Then fit signal cover (Art. No. 1181-65) ...
Then fit signal cover (Art. No. 1181-65) ...
...and the wall is plastered.
...and the wall is plastered.
The penetration of the plaster between the box and the stone fixes the box securely and permanently.
The penetration of the plaster between the box and the stone fixes the box securely and permanently.

Dimensions / Form

Product depth:
66 mm
Installation opening (wall/ceiling) Ø:
82 mm

Connections / Entries

Number of entries:
16
For conduit Ø:
20 mm, 25 mm
Wire entry Ø max.:
11 mm

Assembly / Installation

Assembly type:
UP (solid construction)
Technical information

Sicherheitsdatenblatt UP-Pistolenschaum (Art.-Nr. 1155-95)

289.1 KB | 02/01/2023
Download
Conformity declaration

Declaration of conformity

UP¹ ECON® Fix one-gang box including accessories, UP¹ ECON® Fix one-gang junction box including accessories.
51.2 KB | 07/06/2024
Download
Certificate

UP¹ flush-mounting boxes – sustainability certification

2.5 MB | 09/03/2026
Download
Certificate

BlowerDoor Certificate - Boîtier d'appareillage UP¹ ECON® Fix et Boîte d'encastrement UP¹ ECON® Fix (Art. No. 1055-26, 1555-26)

75.3 KB | 05/02/2024
Instruction

UP¹ ECON® Fix

Assembly instructions

3.5 MB | 29/11/2024
Download
Our UP¹ family
Flyer

Our UP¹ family

Designed by craftsmen, made by KAISER.

630.7 KB
UP1. Our best UP flush-mounting box.
Brochure

UP1. Our best UP flush-mounting box.

The new flush-mounting programme.

1.2 MB
Innovations 2026
Brochure

Innovations 2026

Designed by craftsmen, made by KAISER!

4.5 MB
- Zum Ausgleich zu tief sitzender Dosen - Zur Einhaltung der IP-Schutzart - Mit 2 Befestigungsschrauben 40 mm - Kompatibilität bei Installation von großen Einbaugeräten prüfen
UP¹ Fix stepless plaster compensation frame
Artikel-No. 1155-65
  • To compensate for deep-seated boxes
  • To maintain IP protection class
  • With 2 fixing screws 40 mm
  • Check compatibility when installing large built-in appliances
See more
- Mehrmals zu verwenden - Schützen das Doseninnere, die Schraubdome und Schraubenköpfe beim Verputzen
Signal cover UP¹ for installation openings Ø 60 mm
Artikel-No. 1181-65
  • Reusable
  • Protects interior of box, screwing dome and screw heads when plastering
See more
- Für die zusätzliche Fixierung der UP¹ ECON® Fix Dosen - Zur Verarbeitung mit handelsüblichen PU-Schaumpistolen mit M65 Gewindeanschluss - Verwendbar mit Art.-Nr. 1055-26, 1555-26, 1068-26 und 1656-26 - 1-K PU-Schaum - Baustoffklasse E nach EN 13501 (DIN 4102 B2-Qualität) - Feinporige Schaumstruktur - Verarbeitungstemperatur Umgebung -10 °C bis +30°, optimal +20°C, 60% relative Luftfeuchtigkeit (Dosentemperatur mind. +5°C) - Feuchtigkeitshärtend - Klebefrei innerhalb von ca. 10 min - Schneidbar nach ca. 30 min. - Voll belastbar nach ca. 12 h - Temperaturbeständig ausgehärtet von -40 °C bis +80 °C - Lagerfähig bis zu 12 Monate - Bitte Sicherheitsdatenblatt beachten
Flush-mounting gun foam
Artikel-No. 1155-95
  • For additional fixing of the UP¹ ECON® Fix boxes
  • For processing with commercially available PU foam guns with M65 threaded connection
  • Can be used with Art. No. 1055-26, 1555-26, 1068-26 and 1656-26
  • 1-component PU foam
  • Building material class E according to EN 13501 (DIN 4102 B2 quality)
  • Fine-pored foam structure
  • Ambient processing temperature -10°C to +30°C, optimum +20°C, 60% relative humidity (box temperature min. +5°C)
  • Humidity curing
  • Adhesive-free within approx. 10 min
  • Can be cut after approx. 30 min.
  • Fully loadable after approx. 12 h
  • Temperature resistant cured from -40 °C to +80 °C
  • Can be stored up to 12 months
  • Please note the safety data sheet
See more
- zum Ausgleich zu tief sitzender Dosen - Zur Einhaltung der IP-Schutzart - Mit 2 eingedrehten Geräteschrauben - mit 2 Ring-Befestigungsschrauben
Plaster compensation ring for one-gang and one-gang junction boxes Ø 60 mm, Height 12 mm
Artikel-No. 1155-61
  • to compensate for deep-seated boxes
  • To maintain IP protection class
  • With 2 screwed-in device screws
  • with 2 ring attachment screws
See more
- zum Ausgleich zu tief sitzender Dosen - Zur Einhaltung der IP-Schutzart - Mit 2 eingedrehten Geräteschrauben - mit 2 Ring-Befestigungsschrauben
Plaster compensation ring for one-gang and one-gang junction boxes Ø 60 mm, Height 24 mm
Artikel-No. 1155-62
  • to compensate for deep-seated boxes
  • To maintain IP protection class
  • With 2 screwed-in device screws
  • with 2 ring attachment screws
See more
- 2 Libellen zum senkrechten und waagerechten Ausrichten - 71 mm für Norm-Kombinationen - 91 mm für getrennte Abdeckungen von Kleinspannungsgeräten - mit gehärteten Bohrbuchsen Ø 6 mm - mit ausklappbarem Führungsstift für die erste Bohrung
Drilling template
Artikel-No. 1190-65
  • 2 spirit levels for vertical and horizontal alignment
  • 71 mm for standard combinations
  • 91 mm for separate covers on low-voltage equipment
  • with hardened drilling bushes Ø 6 mm
  • with fold-out guide pin for first drill hole
See more
- universeller Einsatzbereich - für mittelhartes Mauerwerk - hohe Standzeit - Anschlussgewinde M18 x 1,5 - mit Seitenschlitzen - zum Aufschrauben auf die Direktaufnahme
Diamond grinding head without dust extraction
Artikel-No. 1088-00
  • Universal area of application
  • For medium-hard masonry
  • High service life
  • Entry thread M18 x 1.5
  • with side slits
  • for screwing onto the direct attachment
See more
- universeller Einsatzbereich - für mittelhartes Mauerwerk - hohe Standzeit - Anschlussgewinde M18 x 1,5 - zum Aufschrauben auf die Staubabsaugung
Diamond grinding head with dust extraction
Artikel-No. 1088-02
  • Universal area of application
  • For medium-hard masonry
  • High service life
  • Entry thread M18 x 1.5
  • for screwing onto the dust extraction system
See more
- für Diamant-Schleifkronen Ø 82 oder Ø 68 mm mit Anschlussgewinde M18x1,5 - Staubsauger-Schlauchaufnahme von Ø 31 - 36 mm
Dust extraction with direct attachment
Artikel-No. 1088-21
  • for diamond grinding heads Ø 82 or Ø 68 mm with connection thread M18x1.5
  • Vacuum cleaner hose attachments from Ø 31 - 36 mm
See more
- für Diamant-Schleifkronen Ø 82 oder Ø 68 mm mit Anschlussgewinde M18x1,5 - Staubsauger-Schlauchaufnahme von Ø 31 - 36 mm
Dust extraction with direct attachment
Artikel-No. 1088-16
  • for diamond grinding heads Ø 82 or Ø 68 mm with connection thread M18x1.5
  • Vacuum cleaner hose attachments from Ø 31 - 36 mm
See more
- für Diamant-Schleifkronen Ø 82 oder Ø 68 mm mit Anschlussgewinde M18x1,5 - Staubsauger-Schlauchaufnahme von Ø 31 - 36 mm
Dust extraction with chuck attachment
Artikel-No. 1088-41
  • for diamond grinding heads Ø 82 or Ø 68 mm with connection thread M18x1.5
  • Vacuum cleaner hose attachments from Ø 31 - 36 mm
See more
Ausschreiben.de

Ausschreiben.de

Go to tender article
PARTcommunity

PARTcommunity

Planning Data (CAD/3D/2D)
- Variante zum klassischen Setzen mit Gips - Seitenneutrale Kombination - Vielfältige Durchverdrahtung - Mit 4 x 3 Schraubdomen - Norm-Kombinationsabstand 71 mm
UP¹ ECON® Fix one-gang box
Artikel-No. 1055-26
  • More volume than conventional one-gang boxes
  • With quick fixing for installation without plaster
  • With 4 x 3 screw domes
  • Side-neutral combination
  • Many through-wiring possibilities
  • Standardised combination distance 71 mm
See more
- Mit Schnellfixierung für die Montage ohne Gips - Mit 4 x 3 Schraubdomen - Seitenneutrale Kombination - Vielfältige Durchverdrahtung - Norm-Kombinationsabstand 71 mm
UP¹ ECON® Fix electronics box
Artikel-No. 1068-26
  • With quick fixing for installation without plaster
  • With 4 x 3 screw domes
  • Side-neutral combination
  • Many through-wiring possibilities
  • Standardised combination distance 71 mm
See more
- Mit Schnellfixierung für die Montage ohne Gips - Mit 6 x 3 Schraubdomen - Seitenneutrale Kombination - Vielfältige Durchverdrahtung - Norm-Kombinationsabstand 71 mm
UP¹ ECON® Fix two-gang junction box
Artikel-No. 1656-26
  • With quick fixing for installation without plaster
  • With 4 x 3 screw domes
  • Side-neutral combination
  • Many through-wiring possibilities
  • Standardised combination distance 71 mm
See more
- Für das Verlegen von Leitungen oder Rohr ohne Gips - Schnelle Fixierung in Mauerschlitzen von 20 bis 55 mm - Verkürzung der Montagezeit - Keine Beschädigung der Leitungen - Optional: Verwendung von Stahlnägeln Ø 3 mm
Wall groove clip
Artikel-No. 1159-95
  • For laying cables or conduits without plaster
  • Quick fixation in wall grooves from 20 to 55 mm
  • Reduction of assembly time
  • No damage to the cables
  • Optional: use of steel nails Ø 3 mm
See more
