Cable-mate® cableboxes for dry indoor use
1 / 2
  • Attema's universal mounting plate makes it possible to mount a large number of components on cable trays. Of course Attema articles, such as cable boxes, but also articles that we do not have in our assortment, such as (surface) switch material.
  • Applicable on all common cable trays by means of quick "click" mounting.
  • Suitable for cable trays from Legrand (Van Geel), Stago, Niedax, Vergokan, PUK and OBO.
  • Mounting surface is 180 x 120 mm and 7 mm thick.
  • Components can be mounted directly with sheet metal screws with a diameter of Ø 3.5 mm Ø 4.9 mm.
  • Equipped with fixing plugs for cable tray mounting.
  • Fitted with plastic screws for quick mounting of junction box AK1 and AK2 on the front and back of the plate.
  • Fixing methods on the cable tray according to AK2-S.
  • for fast and toolless "click" assembly
  • Fastening clips included
  • Suitable for cable support systems from well-known manufacturers
  • Allows universal assembling of various components
  • Quick-assembnly screws for fixation of AK2 housings included
Read more Read less

Universal mounting plate

Attema B.V.
Artikel-No.: AT2244
EAN: 8712259244587
Halogen-free
Product length: 180 mm
Product width: 120 mm
Fastening type (other): Latch on
Halogen-free: Yes
Shipping: 8
Price (MSRP) / 100 ST:
€790.00
Price group: 250
More product details
Datasheet (PDF)

Cable-mate® cableboxes for dry indoor use

Cable-mate® is the innovative, award-winning cable box system that excels in terms of time savings and ease of installation. There is a wide selection of versatile cover material that can be attached to the cable box easily, without screws. The completely renovated raceway click attachment system makes rapid installation possible on all common raceways.

Technical information

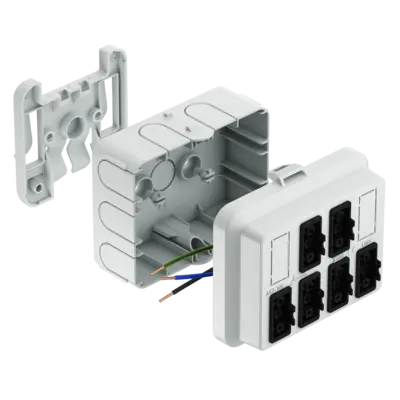

Modular AK2 Kit. Individually combinable distributor housings. System of housing base, front part and mounting adapter
Modular AK2 Kit. Individually combinable distributor housings. System of housing base, front part and mounting adapter
Push the AT2252 housing base onto the selected mounting adapter until it snaps in.
Push the AT2252 housing base onto the selected mounting adapter until it snaps in.
Remove the KBS cable entries, break out the pre-stamped cutout at the desired location and insert the KBS.
Remove the KBS cable entries, break out the pre-stamped cutout at the desired location and insert the KBS.
Front part AK2-W5 enables the assembly with up to 5 connectors with 3 to 5 poles.
Front part AK2-W5 enables the assembly with up to 5 connectors with 3 to 5 poles.

Dimensions / Form

Product length:
180 mm
Product width:
120 mm

Assembly / Installation

Fastening type (other):
Latch on

Safety / Properties

Halogen-free:
Yes
