Diamond grinding head

Videos for this Produkt

for diamond grinding heads Ø 82 or Ø 68 mm with connection thread M18x1.5
Vacuum cleaner hose attachments from Ø 31 - 36 mm

Dust extraction with direct attachment

Name: Dust extraction with direct attachment
SKU: 1088-16
Price: 235.0 EUR
Availability: InStock

Kaiser GmbH & Co.KG

Artikel-No.: 1088-16

EAN: 4013456440326

Drill thread for an electric drill: M18 x 2,5

Price (MSRP) / 1 ST:

€235.00

Price group: 170

More product details

Datasheet (PDF)

accessories

- universeller Einsatzbereich
- für mittelhartes Mauerwerk
- hohe Standzeit
- Anschlussgewinde M18 x 1,5
- zum Aufschrauben auf die Staubabsaugung

Diamond grinding head with dust extraction

Artikel-No. 1088-02

Universal area of application
For medium-hard masonry
High service life
Entry thread M18 x 1.5
for screwing onto the dust extraction system

Diamond grinding head with dust extraction

Artikel-No. 1088-03

Universal area of application
For medium-hard masonry
High service life
Entry thread M18 x 1.5
for screwing onto the dust extraction system

- für alle Direkt- und Bohrfutteraufnahmen
- mit Hartmetall-Schneide
- Bohrerlänge: 125 mm

Centering drill

Artikel-No. 1088-30

for all direct and chuck attachments
with carbide cutter
Drill length: 125 mm

- 2 Libellen zum senkrechten und waagerechten Ausrichten
- 71 mm für Norm-Kombinationen
- 91 mm für getrennte Abdeckungen von Kleinspannungsgeräten
- mit gehärteten Bohrbuchsen Ø 6 mm
- mit ausklappbarem Führungsstift für die erste Bohrung

Drilling template

Artikel-No. 1190-65

2 spirit levels for vertical and horizontal alignment
71 mm for standard combinations
91 mm for separate covers on low-voltage equipment
with hardened drilling bushes Ø 6 mm
with fold-out guide pin for first drill hole

recommendations

- Variante zum klassischen Setzen mit Gips
- Seitenneutrale Kombination
- Vielfältige Durchverdrahtung
- Mit 4 x 3 Schraubdomen
- Norm-Kombinationsabstand 71 mm

UP¹ ECON® Fix one-gang box

Artikel-No. 1055-26

More volume than conventional one-gang boxes
With quick fixing for installation without plaster
With 4 x 3 screw domes
Side-neutral combination
Many through-wiring possibilities
Standardised combination distance 71 mm

- Variante zum klassischen Setzen mit Gips
- Seitenneutrale Kombination
- Vielfältige Durchverdrahtung
- Mit 4 x 3 Schraubdomen und 2 Spreizkrallenfeldern
- Norm-Kombinationsabstand 71 mm

UP¹ ECON® Fix one-gang junction box

Artikel-No. 1555-26

- Mit Schnellfixierung für die Montage ohne Gips
- Mit 4 x 3 Schraubdomen
- Seitenneutrale Kombination
- Vielfältige Durchverdrahtung
- Norm-Kombinationsabstand 71 mm

UP¹ ECON® Fix electronics box

Artikel-No. 1068-26

With quick fixing for installation without plaster
With 4 x 3 screw domes
Side-neutral combination
Many through-wiring possibilities
Standardised combination distance 71 mm

- Mit Schnellfixierung für die Montage ohne Gips
- Mit 6 x 3 Schraubdomen
- Seitenneutrale Kombination
- Vielfältige Durchverdrahtung
- Norm-Kombinationsabstand 71 mm

UP¹ ECON® Fix two-gang junction box

Artikel-No. 1656-26

With quick fixing for installation without plaster
With 4 x 3 screw domes
Side-neutral combination
Many through-wiring possibilities
Standardised combination distance 71 mm

similar

- für Diamant-Schleifkronen Ø 82 oder Ø 68 mm mit Anschlussgewinde M18x1,5
- Staubsauger-Schlauchaufnahme von Ø 31 - 36 mm

Dust extraction with direct attachment

Artikel-No. 1088-21

for diamond grinding heads Ø 82 or Ø 68 mm with connection thread M18x1.5
Vacuum cleaner hose attachments from Ø 31 - 36 mm

Dust extraction with chuck attachment

Artikel-No. 1088-41

for diamond grinding heads Ø 82 or Ø 68 mm with connection thread M18x1.5
Vacuum cleaner hose attachments from Ø 31 - 36 mm

Product Information

Diamond grinding head

Diamond grinding head for precise and quick installation openings for one-gang boxes and one-gang junction boxes in practically all types of walls. Clean and low-dust handling due to dust extraction.

Quick creation of installation openings in all types of walls
For electric drills with direct attachment or 13 mm chuck
With optional dust extraction

System overview - with and without dust extraction

Installation

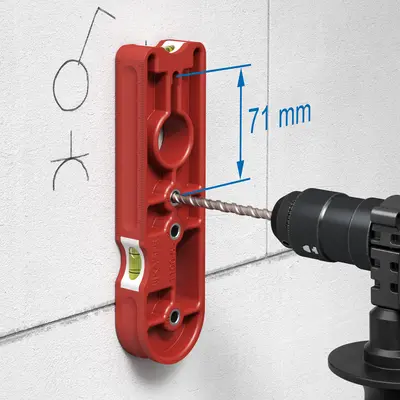

Pre-drilling. Create centering hole at a combination distance for multiple boxes using drilling template.

Fit diamond grinding head and drill holes at Ø 68 mm or Ø 82 mm.

Chisel out the drill core completely.

Clean and even installation openings for quick box installation with plaster or KLEMMFIX®.

Health hazards due to construction dust

When drilling holes, fine dust is produced which, when inhaled, can penetrate deep into the lungs via the bronchial tubes and lead to serious health problems. The quartz dust produced when drilling into concrete, bricks and sandstone is particularly dangerous and can cause asthma, silicosis and tumours in the nose, sinuses, throat and lungs, among other things, as a long-term consequence. There is also the risk of asbestosis (pneumoconiosis) during renovation work in older buildings, as plasters, fillers and tile adhesives containing asbestos were still used until the ban on asbestos in 2005. Safe dust protection on the construction site is therefore extremely important for the health and safety of the workers. The most effective measure is the use of the KAISER dust extraction directly at the point of origin, which is available as a customised system with the KAISER diamond grinding head.

Technical Data

Dimensions / Form

Drill thread for an electric drill:: M18 x 2,5
